GE IS200TREGH1B | Brand New Mark VI Emergency Trip Board

Product Overview

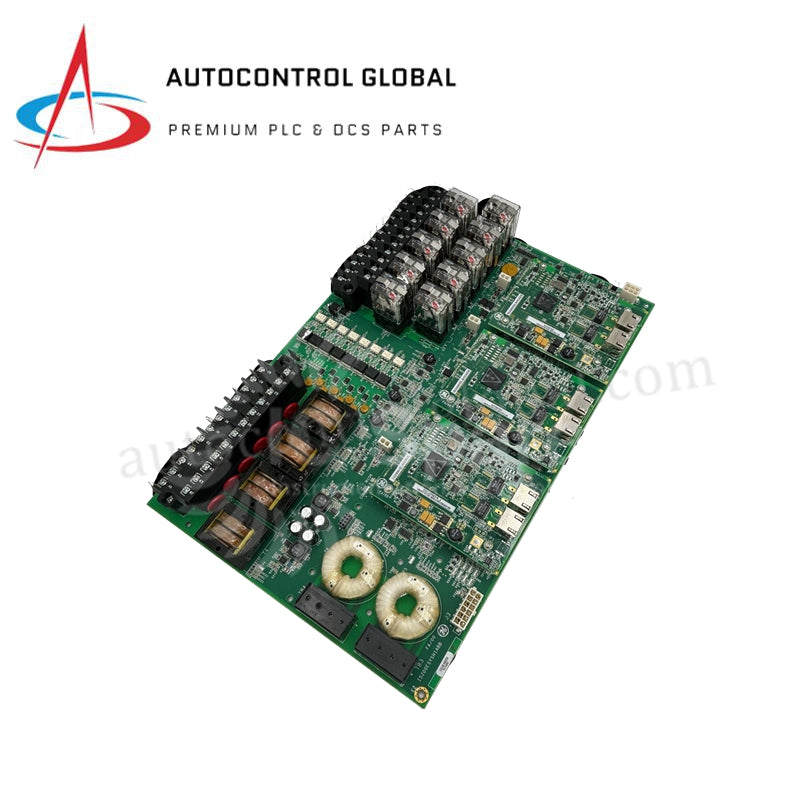

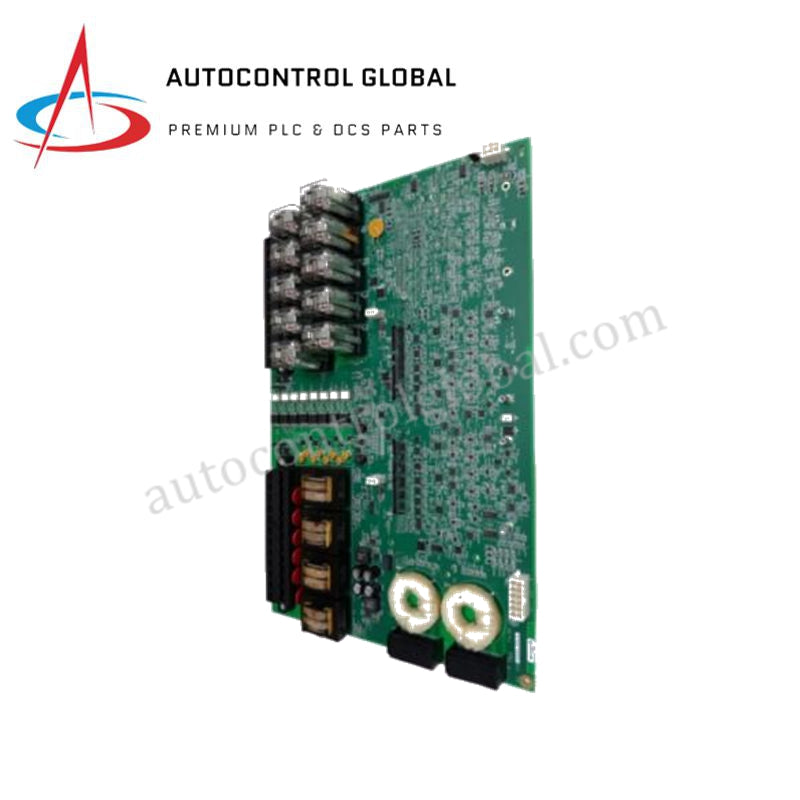

The GE IS200TREGH1B (TREG) serves as the primary Trip Relay Terminal Board within the Mark VI Speedtronic control architecture. This module provides the critical physical and electrical interface for turbine trip signals, translating logic-level commands into robust relay actuation. Positioned at the heart of the turbine protection loop, the TREG board ensures an immediate, fail-safe shutdown of the unit during overspeed, vibration, or manual emergency stop events. It handles the high-integrity signals required to de-energize fuel or steam stop valves, making it a non-negotiable component for plant safety.

Condition: 100% Brand New Original.

Technical Specifications

The IS200TREGH1B utilizes high-speed switching circuits and industrial isolation to ensure deterministic trip execution.

Engineering Advantages

• Deterministic Emergency Response: The TREG board executes trip commands with millisecond precision. By bypassing standard supervisory software layers and utilizing hardwired logic paths, the IS200TREGH1B initiates protective action the moment a trip condition occurs, preventing catastrophic mechanical failure.

• Fail-Safe Relay Logic: The hardware employs a "de-energize to trip" philosophy. Any loss of control power or physical disconnection of the board automatically triggers the trip relays. This design ensures that the turbine defaults to a safe state even during a total control system failure.

• Redundant Voting Support: In Triple Modular Redundant (TMR) systems, the IS200TREGH1B facilitates 2-out-of-3 (2oo3) hardware voting. This architecture allows the system to ignore a single faulty signal while maintaining the ability to trip the turbine, effectively eliminating nuisance trips without compromising safety.

• High-Current Solenoid Interfacing: The board features heavy-duty relay contacts specifically rated for inductive solenoid loads. Integrated suppression circuits neutralize back-EMF spikes during de-energization, protecting the internal board traces and extending the service life of the trip relays.

• Robust Noise Immunity: GE utilizes advanced shielding and filtering on the TREG input stages. This prevents electromagnetic interference (EMI) from high-voltage turbine hall equipment from causing "ghost" trips, ensuring that only valid protection commands actuate the shutdown sequence.

FAQs

Q: Can I use the IS200TREGH1B in a Mark VIe system?

A: The IS200TREGH1B belongs to the Mark VI series. While the Mark VIe uses similar trip logic concepts, it typically requires the TREA or TREG variants designed specifically for the Mark VIe I/O pack interface. Always verify the connector pinout and system series before installation.

Q: Does the IS200TREGH1B include the primary trip relays?

A: Yes. The TREG board houses the actual mechanical or solid-state relays that break the power to the trip solenoids. It acts as the final termination point for the field wiring associated with the emergency shutdown valves.

Q: How do I test the board without actually tripping the turbine?

A: The Mark VI system supports online "Trip Relay Testing." Through the control software, you can actuate individual relays on the TREG board to verify contact transition. In a TMR configuration, this allows for testing one branch at a time without breaking the complete circuit to the stop valves.

Q: What is the significance of the "H1B" suffix?

A: "H1B" denotes the functional hardware group and artwork revision. This version ensures compatibility with standard Mark VI terminal racks. When replacing a module, matching the H1B suffix ensures that the electrical impedance and relay timing remain identical to the original system design.
