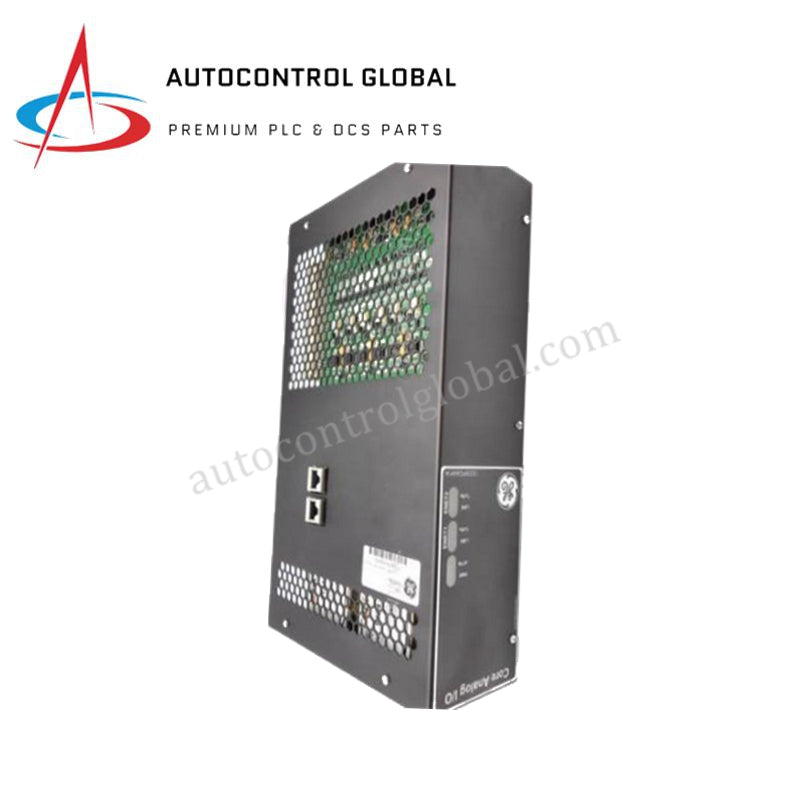

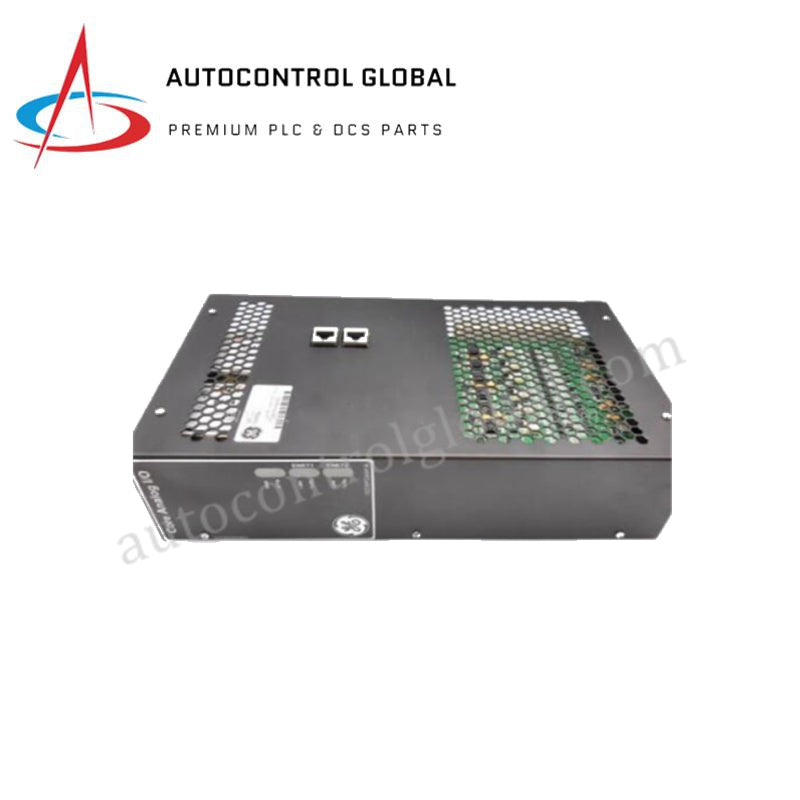

GE IS230PCAAH1A Mark VIe Core Analog I/O Module

GE IS230PCAAH1A Core Analog I/O Module

The GE IS230PCAAH1A, also cataloged as the IS230PCAAH1A Printed Circuit Assembly (PCAA), operates as a dedicated hardware component for multi-signal conditioning and field interface within GE Mark VIe turbine control platforms.

Hardware Specifications

Industrial Control and Firmware Compatibility

The IS230PCAAH1A performs high-resolution signal acquisition, utilizing 16-bit A/D conversion to process both analog and discrete field inputs. To maintain deterministic system performance, the module's internal firmware must be flash-compatible with the Mark VIe controller's specific I/O scan rate. Mismatched firmware revisions can result in bus synchronization errors or data packet loss across the IONet backbone. The module provides channel-to-channel and channel-to-system isolation, which is required to protect the controller from common-mode voltage spikes and ground loop noise originating from field instrumentation.

Frequently Asked Questions (FAQ)

Q: Is the IS230PCAAH1A module capable of hot-swapping within a powered Mark VIe rack?

A: No. The IS230PCAAH1A is not designed for hot-swap operations. The rack power must be disconnected prior to module extraction or insertion to prevent transient damage to the backplane communication pins and to ensure the control system transitions safely into a maintenance state.

Q: How does the conformal coating affect the thermal dissipation of the module?

A: The applied Class C conformal coating is engineered to offer chemical and moisture protection without significantly hindering the passive heat dissipation characteristics of the PCB. However, ensure that the control cabinet airflow remains unobstructed to keep the module temperature within the rated -40 deg C to +70 deg C envelope.

Field Installation Guidelines

1. Mounting: Slide the module into the designated I/O rack slot. Ensure that the module is fully seated against the backplane connector before engaging the locking tabs.
2. Grounding: Secure the module chassis using the provided retention screws. This connection is vital for maintaining the effectiveness of the EMI shielding and ensuring the integrity of the reference ground for analog inputs.
3. Termination: Connect field wiring for analog and discrete inputs to the associated terminal blocks. Use shielded cables for all analog signals, terminating shields at the cabinet ground bar to prevent induced electromagnetic interference.
4. Validation: After installation, execute the ControlST diagnostic suite to verify the module's presence on the network. Perform a signal loop check for every active channel to confirm that the reported values align with calibrated field transmitter outputs.
