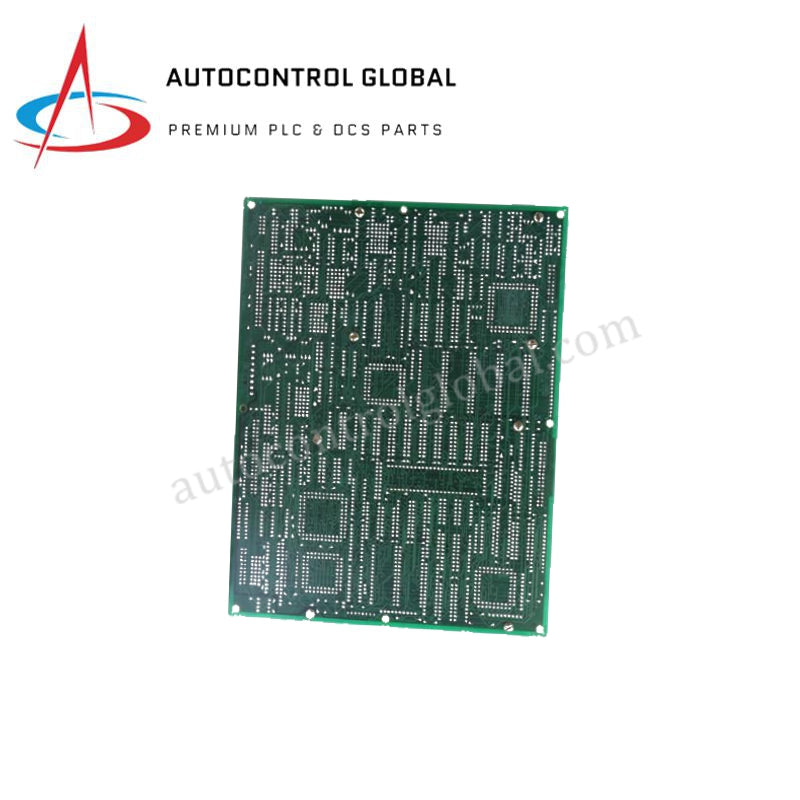

GE Mark V DS200SDCCG5A | Turbine Speedtronic Primary Card

Product Overview

The GE DS200SDCCG5A (SDCC) represents the primary Drive Control Card for the Speedtronic™ Mark V turbine control and industrial inverter systems. As the "brain" of the drive cabinet, this board executes high-level control algorithms, manages internal diagnostic routines, and coordinates data flow between various I/O expansion modules. By integrating a dedicated microprocessor with onboard SRAM and EPROM, the SDCC provides the computational power necessary for real-time turbine regulation and protection. This board manages the critical transition from digital control logic to physical drive actuation, ensuring stable and efficient operation in power generation and heavy industrial applications.

Condition: 100% Brand New, Original USA Origin.

Technical Specifications

The DS200SDCCG5A utilizes a high-speed VME bus architecture and multi-point ribbon interfaces to maintain deterministic system control.

Engineering Advantages

• Centralized Algorithmic Execution: The SDCC board handles the most complex mathematical calculations required for turbine speed and load control. By centralizing these functions on a single high-performance microprocessor, the system eliminates communication bottlenecks and provides a unified control response.

• Comprehensive Diagnostics: Onboard firmware continuously monitors the status of the entire drive rack. The DS200SDCCG5A identifies hardware discrepancies across peripheral I/O boards and reports specific fault codes to the HMI, allowing maintenance personnel to isolate issues without extensive manual probing.

• Redundant System Support: This board facilitates the Triple Modular Redundancy (TMR) architecture of the Mark V. It synchronizes data with adjacent cores to ensure that the turbine remains operational even if a single control path encounters a failure, effectively maximizing unit availability.

• High-Bandwidth Interfacing: Utilizing the VME bus standard, the SDCC board communicates rapidly with auxiliary I/O and communication modules. This high-speed data exchange supports fast-acting protection loops, such as overspeed trips and generator field regulation.

• Field-Proven Durability: Designed for the rigorous electrical environment of a turbine control hall, the board features heavy-duty surge suppression and high-grade PCB traces. This construction neutralizes the effects of electromagnetic interference (EMI) and power surges common in large-scale drive cabinets.

FAQs

Q: Does the DS200SDCCG5A arrive with pre-installed firmware?

A: This board contains sockets for EPROM chips. While the hardware is brand new, you must ensure the firmware chips (and their specific software revision) match your turbine's original configuration. Most engineers migrate the existing EPROMs from the old board to the new DS200SDCCG5A during replacement to maintain custom site parameters.

Q: How do I verify the communication health of the SDCC board?

A: Monitor the status LEDs on the board faceplate. If the "Status" LED fails to blink or if the HMI reports a "VME Bus Timeout" specifically for the SDCC slot, the board may have encountered a processor fault or power regulation failure.

Q: Can this board replace any SDCC version in a Mark V rack?

A: The "G5A" revision indicates a specific functional group. While GE designed the SDCC series for broad compatibility, you should verify that the jumper settings (J-connectors) on the new board exactly replicate the settings of the board you are replacing to ensure correct signal routing.

Q: What is the primary difference between the SDCC and the TCQC boards?

A: The SDCC (DS200SDCCG5A) is the main control card that executes the software logic. The TCQC is an I/O board that handles the physical conversion of analog signals. The SDCC "tells" the TCQC what to do and processes the data that the TCQC collects.
