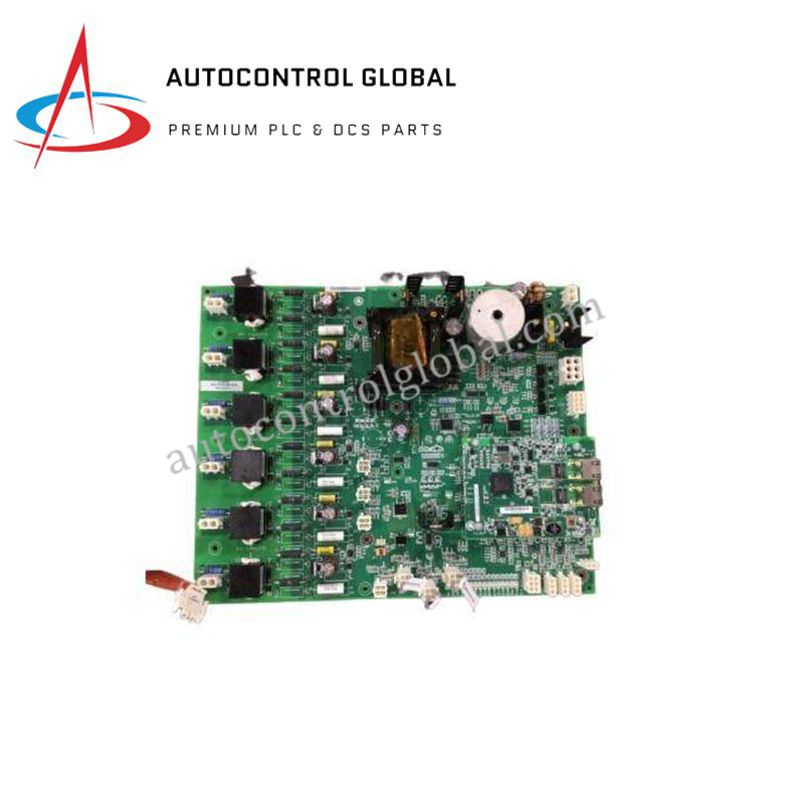

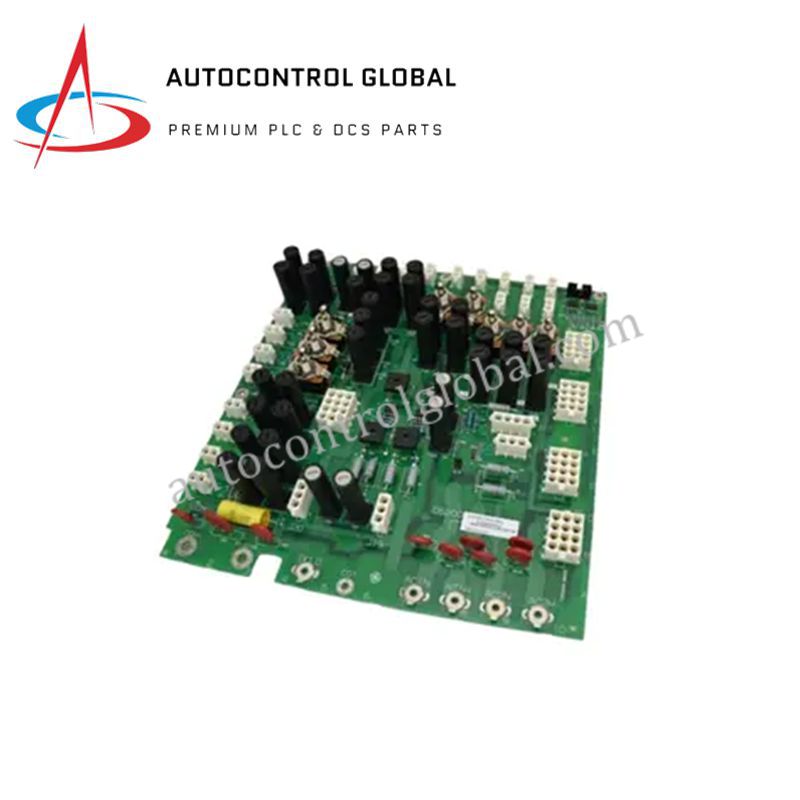

GE Mark V DS200TCPDG2B | High-Reliability PD Module
Manufacturer: GE Fanuc
-
Part Number: DS200TCPDG2B
Condition：New with Original Package
Product Type: High-Reliability PD Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description / Overview
The GE DS200TCPDG2B is a high-reliability Power Distribution Module designed for the Mark V Speedtronic turbine control system. It distributes 125 VDC power to all control cores, including I/O cores, Control Engine cores, and TCEA boards, while supplying 120/240 VAC power to ignition transformers.
Operators can safely isolate individual cores using onboard toggle switches, which simplifies maintenance and enhances operational safety. Moreover, the module powers DTBC and DTBD terminal boards, with output continuously monitored by the CTBA terminal board, ensuring reliable turbine control and ignition functionality.
This board is engineered for rack-mounted installation, features standard PCB coating, and supports diagnostic monitoring for early fault detection. Therefore, it is a critical component for maintaining uninterrupted turbine operations in industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DS200TCPDG2B |
| Manufacturer | General Electric (GE) |
| Series | Mark V Speedtronic |
| Product Type | Power Distribution Board |
| Function | Distributes 125 VDC and 120/240 VAC to control cores and ignition transformers |
| Power Outputs | 125 VDC to control cores; 120/240 VAC to ignition transformers |
| Toggle Switches | Individual core power isolation |
| Monitoring | CTBA terminal board monitors PD output |
| PCB Coating | Standard coating |
| Mounting Type | Rack-mounted |
| Dimensions | 168 mm × 150 mm × 55 mm |
| Weight | 0.45 kg (1.0 lbs) |
| Country of Origin | USA |
FAQ
Q1: What is the primary function of the DS200TCPDG2B?
A1: It distributes DC and AC power across turbine control cores and ignition transformers.
Q2: Can individual cores be powered down safely?
A2: Yes, onboard toggle switches allow safe isolation of individual cores.
Q3: Does it support monitoring for fault detection?
A3: Yes, the CTBA terminal board continuously monitors the power distribution output.
Q4: How is the board mounted?
A4: It is designed for rack-mounted installation within the control cabinet.
Q5: What voltages does the DS200TCPDG2B supply?
A5: It supplies 125 VDC to control cores and 120/240 VAC to ignition transformers.
