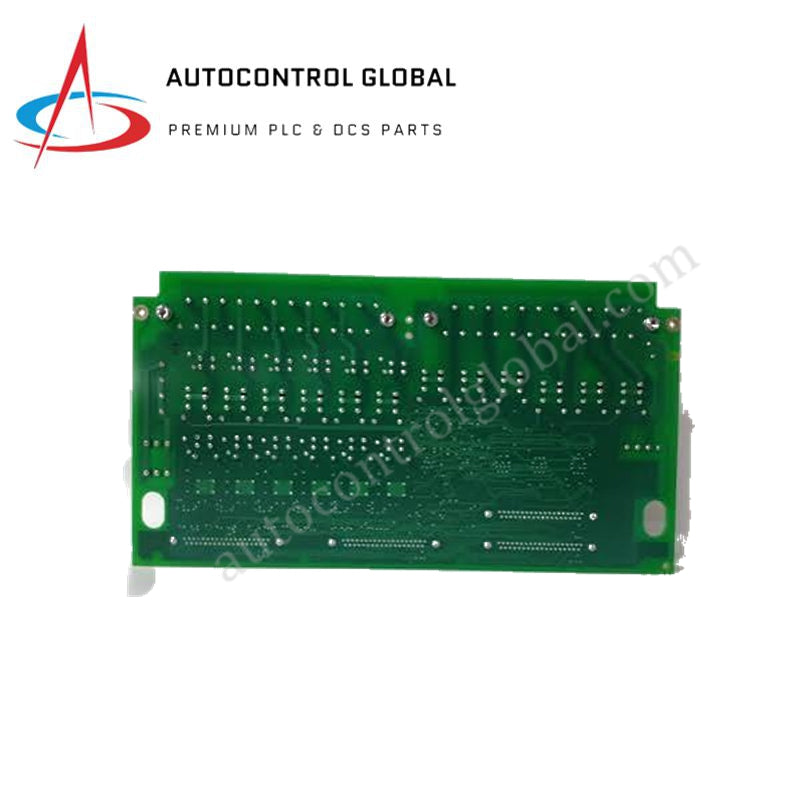

GE Mark VI Speedtronic IS200AEPCH2CEC Exciter Control Board
Manufacturer: GE Fanuc
-
Part Number: IS200AEPCH2CEC
Condition：New with Original Package
Product Type: CPU Processors
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE IS200AEPCH2CEC Mark VI Application Exciter Processor Control Board
Configured for specific technical tasks in Mark VI Speedtronic Turbine Control System networks, the GE IS200AEPCH2CEC (IS200AEPC Application Exciter Processor Control Board) provides direct physical/electrical execution. The module coordinates real-time computing tasks within generator excitation subsystems, handling data processing, diagnostic monitoring, and industrial bus communications over local control architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200AEPCH2CEC |
| Brand | GE |
| Origin | United States (USA) |
| Weight | 0.40 kg |
| Dimensions | 233 x 160 x 30 mm |
| Operating Temp | -30 to +65 deg C |
| Power Consumption | 5 V DC via backplane |
| Processor | 32-bit microprocessor with embedded control firmware |
| Communication Interfaces | Ethernet (10/100 Mbps), ISBus, VME backplane |
| Supported Protocols | TCP/IP, Modbus, proprietary GE exciter protocols |
| Isolation | Communication and signal isolation, withstands 1500 VAC |
| Redundancy | Supports simplex and redundant exciter configurations |
| Suffix Code | H2CEC (Hardware revision CEC, standard type) |
| Humidity Range | 5 - 95% RH (non-condensing) |
Industrial Control & DCS Platforms Matrix
The GE IS200AEPCH2CEC utilizes specific hardware capabilities to implement I/O density scaling routines and maintain backplane bus communication velocity across multi-node networks. The 32-bit onboard microprocessor executes control firmware loops natively, synchronizing local generator parameter data across dual Ethernet paths and high-speed ISBus interfaces. The platform requires strict validation of firmware flash compatibility across active redundant tracks to ensure bumpless control transfers between the primary and secondary exciter channels. Signal pathways operate behind dedicated galvanic isolation boundaries capable of withstanding 1500 VAC, which limits electrical cross-talk and common-mode transients from disrupting the core processing block.
Frequently Asked Questions
Q: How do firmware mismatches affect the replacement of an H2CEC module in a redundant exciter configuration?
A: The master turbine control architecture requires matching firmware baselines between redundant processors. Prior to inserting the replacement H2CEC hardware, system engineers must verify that the embedded firmware build matches the active partner board to avoid synchronization failure.
Q: Can the network settings be configured directly through the VME backplane on startup?
A: No. Initial network parameterization and IP addressing must pass through designated configuration tools via the communication ports. Improper manual assignment induces bus addressing conflicts that disrupt real-time control loops.
Field Installation Guidelines
- Mount the processor board within its designated chassis slot, applying even mechanical force to sit the rear connectors cleanly into the VME backplane interface.
- Power down the target excitation cabinet completely before extracting or seating the module to protect the solid-state microprocessors from electrostatic discharge damage.
- Route all dedicated 10/100 Mbps Ethernet communication links away from internal high-voltage switching devices to minimize electromagnetic noise insertion into the diagnostic channels.
