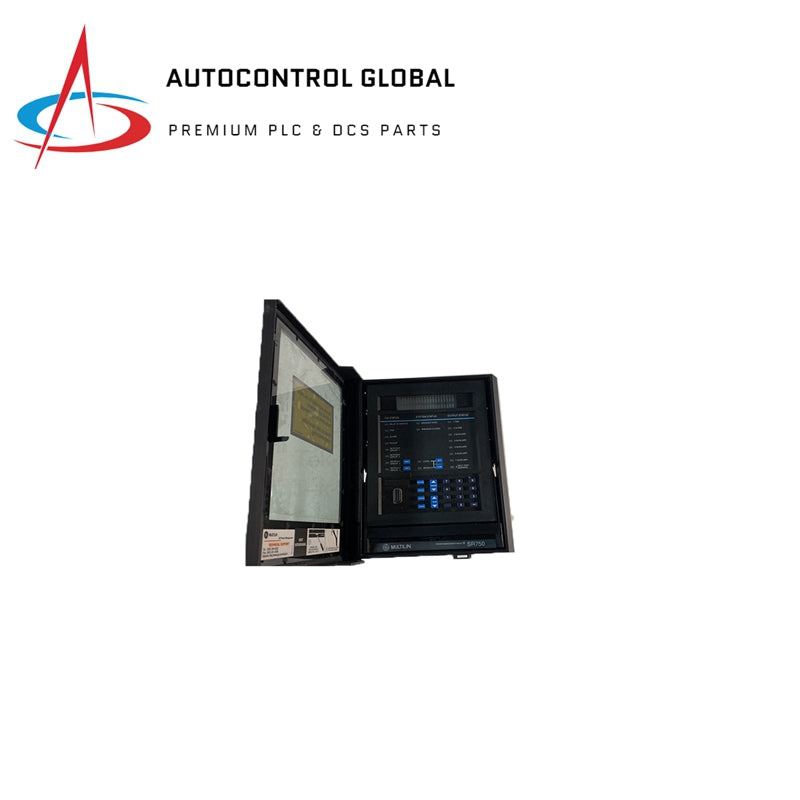

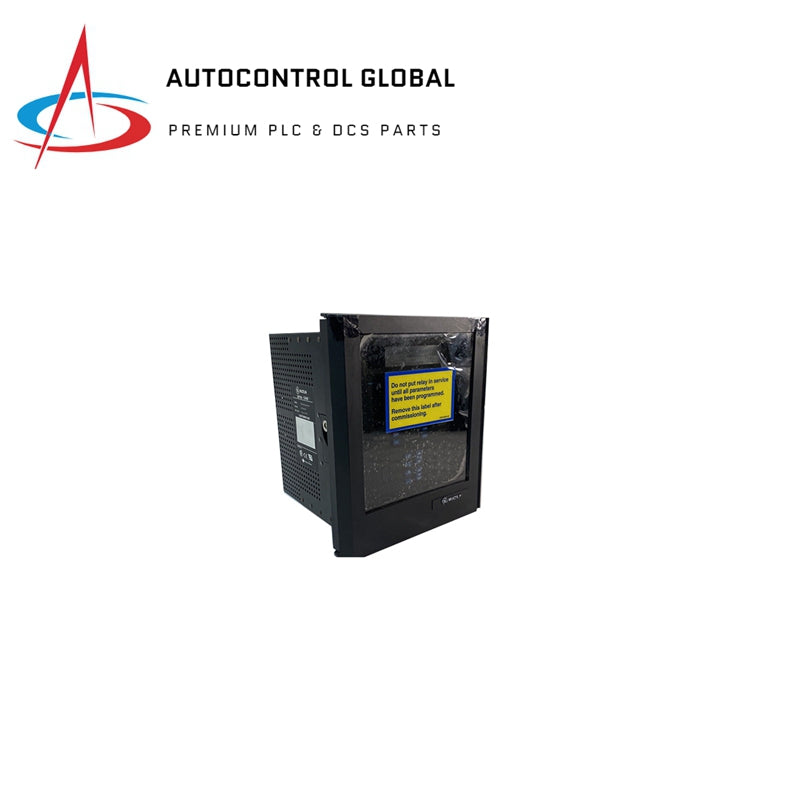

GE Multilin SR750 Feeder Management Relay

Description

• Purpose: Designed for the management, primary protection, and control of distribution feeders.
• Protection Functions: Provides comprehensive protection for feeders and serves as backup protection for bus, transformers, and transmission lines.
• Construction: Features draw-out construction for quick replacement.
• Environmental Resilience: Optional conformal coating available for operation in harsh environments.

Features

• Metering Functions: Accurate built-in metering functions.
• I/O Monitoring: Enhances uptime with I/O monitoring capabilities.
• Time Synchronization: Supports IRIG-B time synchronization.
• Event Handling: Capable of event reports, waveform capture, and data logging.
• Protocol Support: Compatible with industry protocols such as DNP3 and Modbus.
• Integration: Optional 10MB Ethernet port for seamless system integration.
• Field Upgrade: Flash memory supports product upgrades in the field.

Specifications

• Current Inputs: Supports 5 A phase current inputs.
• Zero Sequence Inputs: Includes 5 A zero sequence inputs.
• Analog Outputs: Provides eight 4-20 mA analog outputs.
• Display: Features an enhanced display for clear monitoring.
• Environment Options: Designed to withstand harsh chemical environments.
