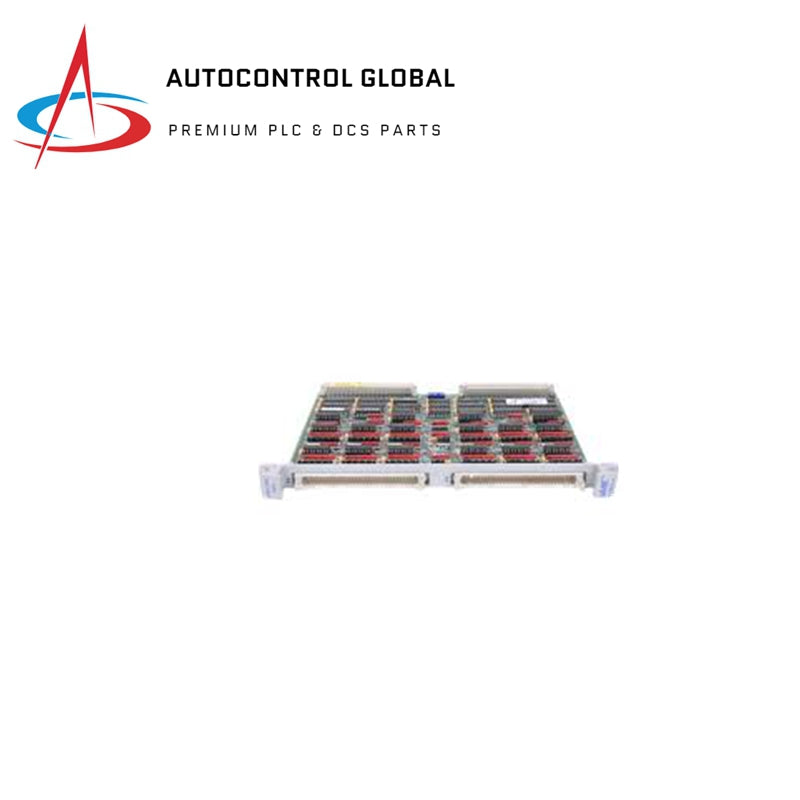

GE VMIVME1150 332-001150-120 Digital Input Board

Description

The GE VMIVME1150 332-001150-120 is a 64-bit optically coupled digital input board designed specifically for GE’s VMIVME industrial computing systems. It is used to read the on/off state of digital sensors and transmit that data to the VMIVME system.

Features

• 64 optically coupled digital inputs
• Input voltage range: 5V to 48VDC
• High isolation: 1,000V sustained, 7,500V pulsed
• Filtered input options
• Dual I/O connectors
• Contact closure sensing
• Voltage sourcing or current sinking input options
• Positive or negative true input options
• Double Eurocard form factor with front panel
• 8- or 16-bit data transfers
• Nonprivileged or supervisory I/O access
• High reliability DIN-compatible input connectors

Technical Specifications

• Board Function: 64-bit optically coupled digital input board optimized for VME systems.
• Compatibility: Electrically and mechanically compatible with VME.
• Input Organization: Eight input ports, each eight bits wide.
• Addressing Scheme: Individually addressable on 8- or 16-bit boundaries.
• Board Address: Selected by onboard DIP switches.
• VME Access: Supports short supervisory or nonprivileged short I/O access.
• Data Transfer Type: D8, D16
• Data Polarity: Order as positive or negative true based on input assertion.
• Input Characteristics: Voltage sourcing or current sinking, 5V to 48VDC range.
