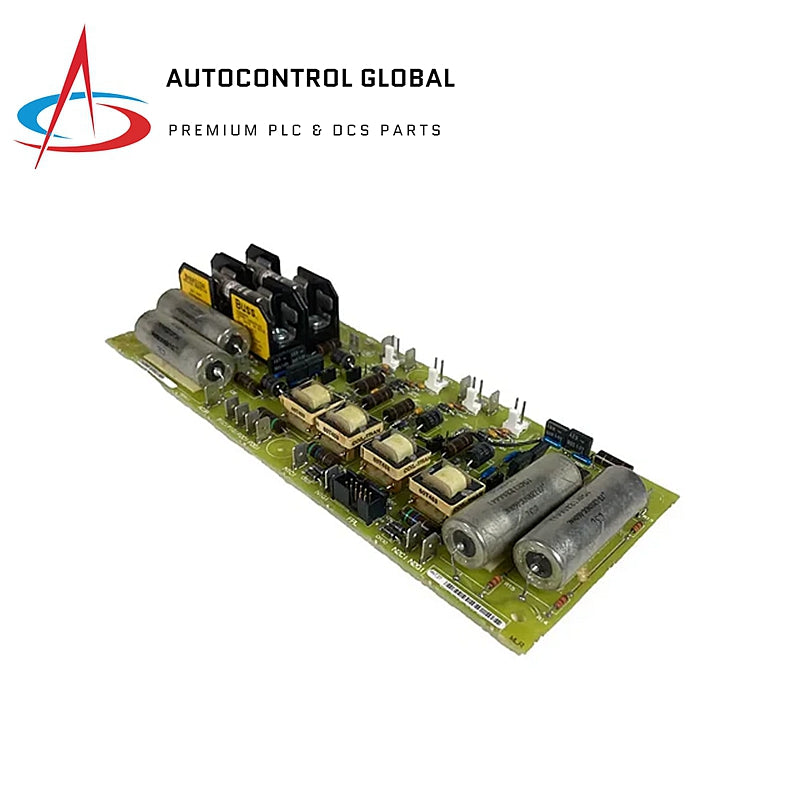

General Electric DS200FSAAG1ABA Field Supply Gate Amplifier Board

Overview

The DS200FSAAG1ABA Field Supply Gate Amplifier Board is designed for General Electric's Mark V Series, playing a critical role in turbine control systems.

Features

• Key Role: Part of the Mark V Series, leveraging Speedtronic technology for turbine control.

Specifications

• Part Number: DS200FSAAG1ABA
• Connectors: 1 x 10-pin connector
• Jumpers: 5 for customization
• Fuses: 2 for circuit protection
• Test Points: Multiple for diagnostics

Installation Tips

• Static Protection: Store the board in its anti-static sealed bag until installation.
• Wrist Strap: Always wear a wrist strap to prevent static damage during installation.
• Avoid Movement: Do not walk around with the board to prevent static buildup.
