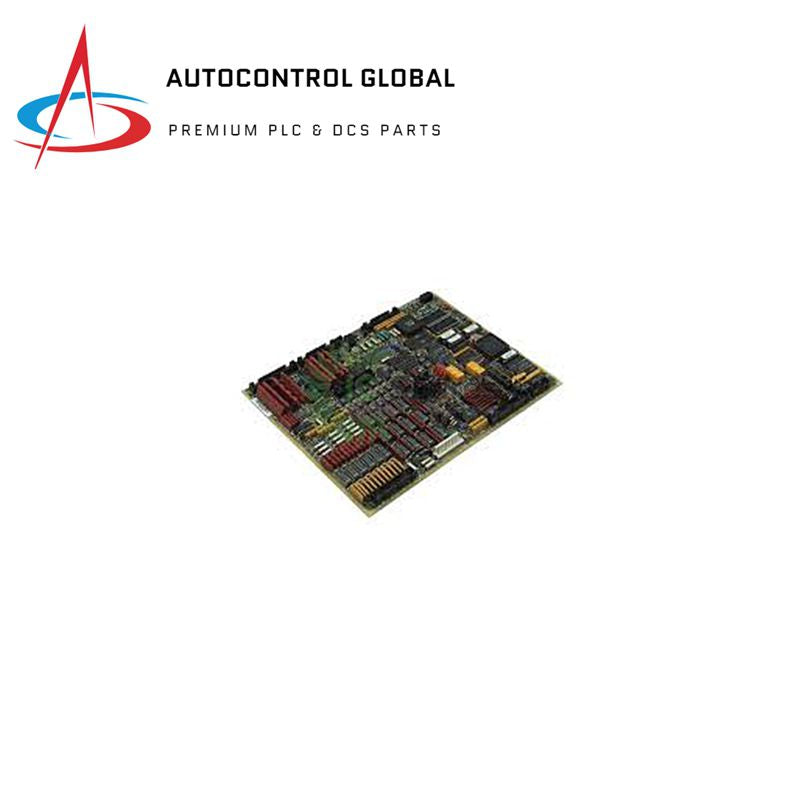

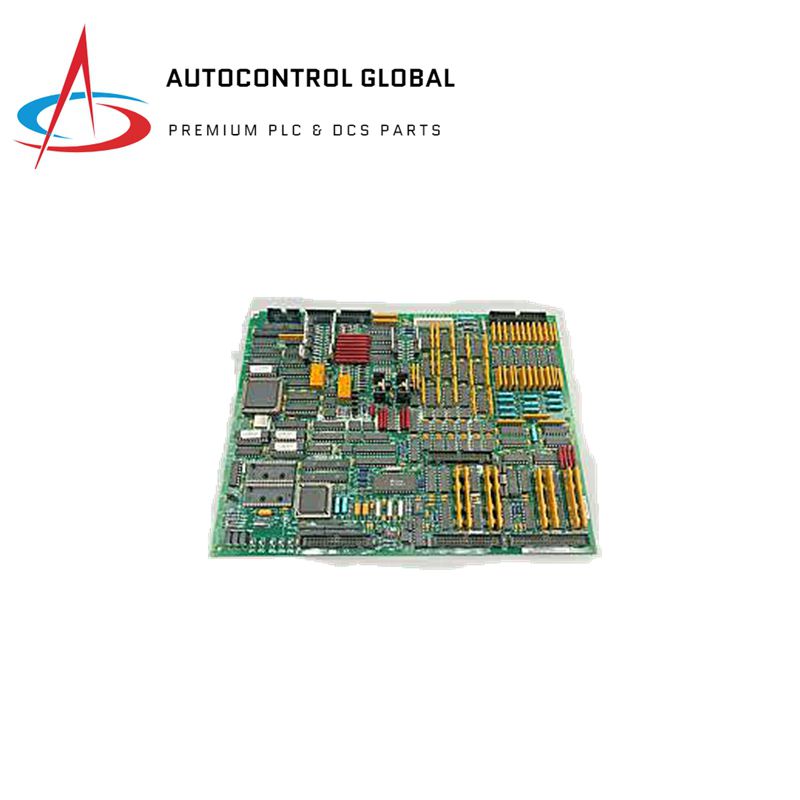

General Electric DS200TCQAG1B Analog I/O Board

Technical Specifications

• Manufacturer: GE General Electric
• Series: Mark V
• Part Number: DS200TCQAG1B
• Functional Description: Analog I/O Board
• Functional Acronym: TCQA
• PCB Coating Style: Normal Coating
• Revision Quantity: 1 Revision
• Assembly Type: Normal Assembly

About the DS200TCQAG1B

The DS200TCQAG1B is a printed circuit board (PCB) designed and produced by General Electric, a major player in the automated industrial sphere. This PCB is part of the Mark V Series, which includes gas, steam, and wind turbine control systems and components. The Mark V Series features the same Speedtronic technology seen in GE’s earlier Mark I Series from the late 1960s. Although the Mark V Series is no longer in active production, it remains highly sought after due to its reliability and advanced technology. The DS200TCQAG1B is an Analog I/O Board, a revised version of the original DS200TCQAG1, with one significant product revision.

Hardware Tips and Specifications

• Connectors: Four 34-pin connectors, two 40-pin connectors
• Jumpers: Six
• LEDs: Six
• Installation: Designed to be installed in the board cabinet in the drive, with screw holes that align with the rack for secure installation. The holes are ringed with insulated material to prevent damage from surface voltages.
• Functional Product Number Details:
  • Series Tag: DS200 (indicates Mark V Series assembly version and domestic original manufacture location)
  • Functional Product Abbreviation: TCQA
  • PCB Coating Style: Normal Coating
  • Group: One Mark V Series product grouping
  • Functional Revision: Singular, B-rated
