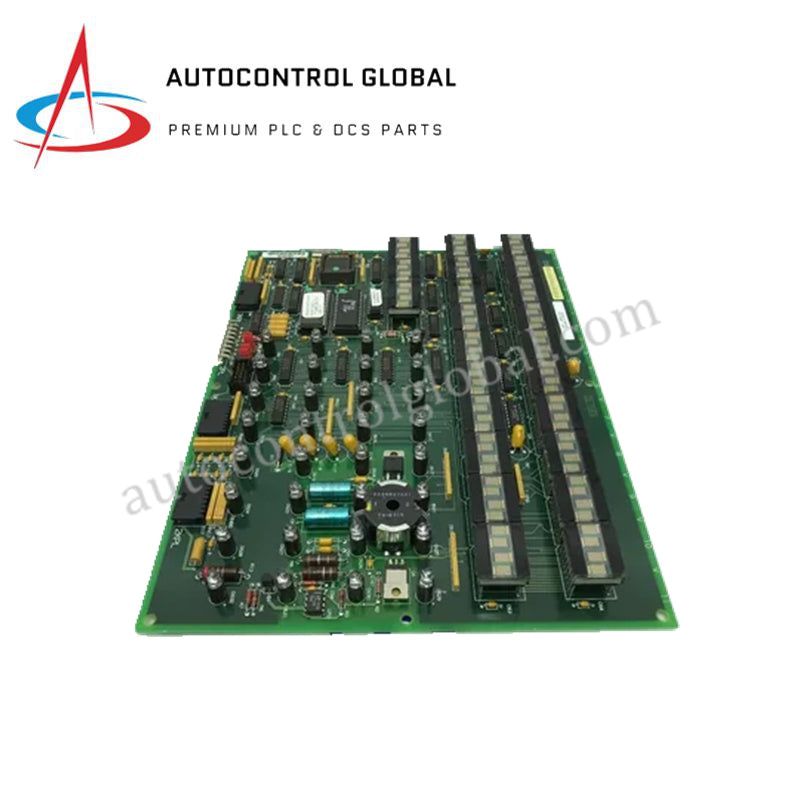

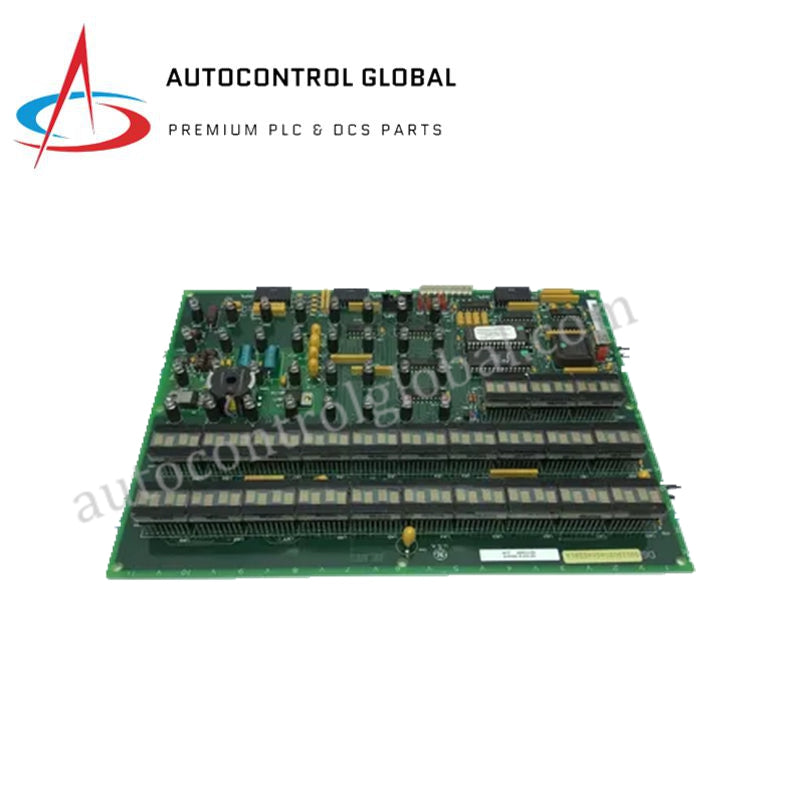

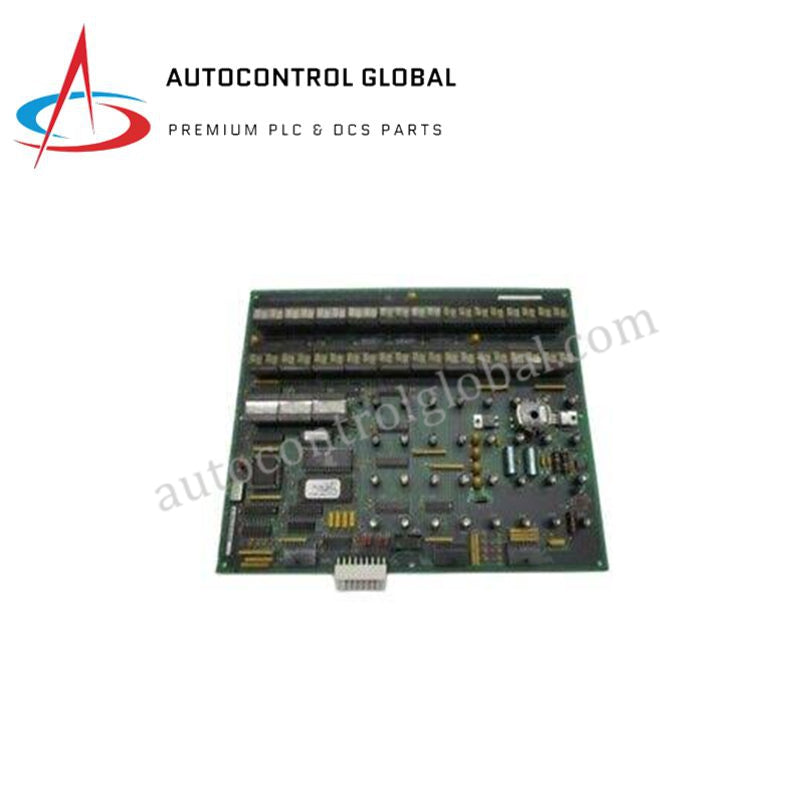

General Electric DS215UDSAG1AZZ01A Mark V Firmware Board
Manufacturer: GE Fanuc
-
Part Number: DS215UDSAG1AZZ01A
Condition：New with Original Package
Product Type: Display Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
General Electric DS215UDSAG1AZZ01A Speedtronic Mark V Firmware Display Board
Configured for real-time parameter visualization and drive control logic execution in Speedtronic Mark V platforms, the General Electric DS215UDSAG1AZZ01A (DS215UDSA User Display & Firmware Board) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
| Suffix / Variant | Revision Level Description | Hardware Configuration |
|---|---|---|
| DS215UDSA | Base Part Number | Standard Mark V User Display System & Firmware Architecture |
| G1 | Group 1 Classification | Standard functional layout for Speedtronic Mark V racks |
| AZZ | Option Configuration | Integrated Intel 80196 16-bit microcontroller with EPROM sockets |
| 01A | Revision Level | Current hardware artwork revision for improved noise immunity |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS215UDSAG1AZZ01A |
| Brand | General Electric |
| Origin | United States |
| Weight | 1.30 kg |
| Dimensions | 330 x 260 mm |
| Operating Temp | -30 to +65 deg C |
| Power Consumption | 5 VDC logic supply (5.00 to 5.25 VDC limit) |
| Onboard Microprocessor | Intel 80196 16-bit microcontroller |
| Display Configuration | 21 individual 4-character alphanumeric LED display blocks |
| Status Indicators | 32 discrete status LEDs (power, fault, run state) |
| Memory Architecture | Onboard socketed EPROM / EEPROM firmware storage modules |
| Field Logic Channels | 16 digital inputs, 8 relay outputs (24 VDC, 5 A max per channel) |
| Architecture Compatibility | TMR (Triple Modular Redundant) and Simplex Mark V cores |
Backplane Bus Architecture and High-Speed Firmware Processing
The General Electric DS215UDSAG1AZZ01A operates on an onboard Intel 80196 16-bit microcontroller to process local firmware algorithms and maintain high-speed data flow across the Speedtronic Mark V backplane bus communication velocity setup. By offloading display rendering and digital I/O processing from primary turbine controllers, the board executes local signal conditioning for 16 digital inputs and 8 relay outputs without inducing backplane latency. Onboard noise filtering and surge suppression circuits isolate internal processor logic from field interference, while 21 alphanumeric LED blocks and 32 status LEDs provide direct physical verification of firmware state and trip loop health.
Frequently Asked Questions
Q: How do firmware EPROM module replacements affect system initialization on this card?
A: Socketed EPROM modules hold core operating parameters for display rendering and signal conditioning. When swapping components, ensure all firmware revision numbers match the exact system baseline of the target Mark V control core to prevent backplane bus synchronization faults.
Q: What power parameters must be verified prior to energizing the module?
A: The board requires a regulated 5 VDC logic power supply maintained strictly between 5.00 VDC and 5.25 VDC. Exceeding 5.25 VDC will trigger overvoltage protection or damage the Intel 80196 microcontroller and LED driver ICs.
Field Installation Guidelines
- ESD Protection Protocol: Wear an active ESD wrist strap attached to an unpainted chassis ground point prior to opening protective packaging or touching printed circuit board traces.
- Power Isolation: De-energize all 5 VDC logic power feeds and field wiring sources before seating or removing the card from the rack frame to avoid connector arc damage.
- Jumper and Option Verification: Verify that all DIP switches and configuration jumpers on the replacement board match the settings of the original module exactly to prevent false trip signal generation.
- Ribbon Cable Handling: Align and lock all ribbon cable connectors attached to field terminal headers, ensuring header locking levers click fully into place.
- Mechanical Mounting: Insert the module evenly along the plastic card cage guide rails until the backplane edge connector fully seats. Tighten all retaining hardware to establish solid chassis ground connection.
