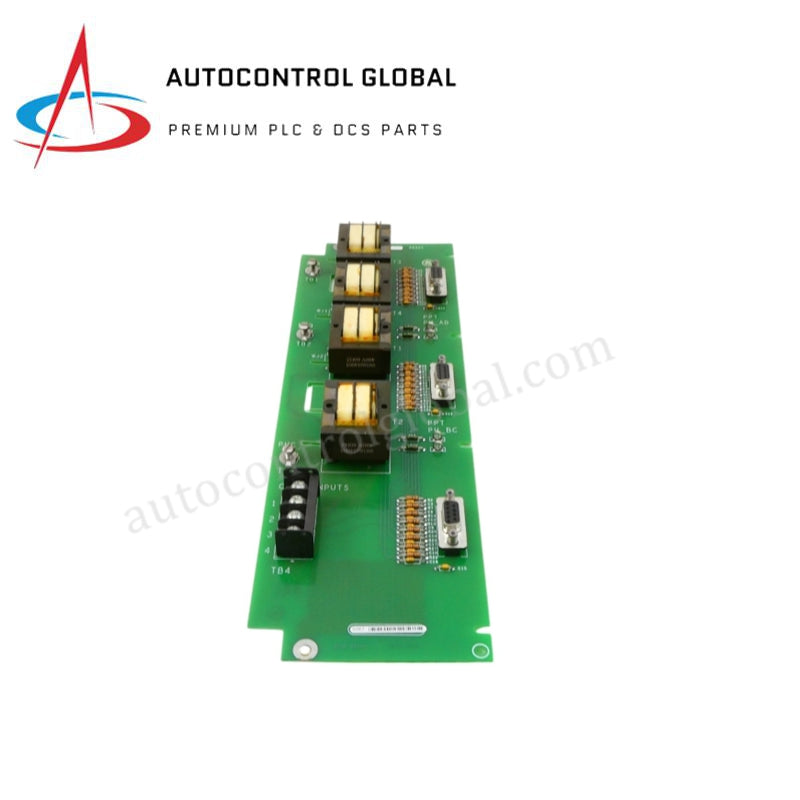

General Electric IS200EACFG2ABB G2 Revision EACF Module
Manufacturer: GE Fanuc
-
Part Number: IS200EACFG2ABB
Condition：New with Original Package
Product Type: Exciter AC Feedback Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The IS200EACFG2ABB (functional acronym EACF) is an authoritative Exciter AC Feedback Board manufactured by GE Fanuc for the Mark VI Speedtronic turbine control system. This module is a mechanical necessity for the precise measurement and conditioning of AC current and voltage feedback from the excitation system. By providing high-fidelity signal feedback to the main control processors, the IS200EACFG2ABB ensures that the turbine generator remains within its stable operational envelope. It is specifically engineered to handle the high-speed processing of power-side signals while maintaining galvanic isolation, protecting the sensitive logic circuits of the Mark VI rack from destructive electrical transients.
Detailed Technical Specifications
| Attribute | Details |
| Manufacturer | GE Fanuc / General Electric |
| Model Number | IS200EACFG2ABB |
| Series | Mark VI Speedtronic |
| Functional Acronym | EACF |
| Product Type | Exciter AC Feedback Board |
| Feedback Inputs | Exciter AC current and AC voltage signals |
| Signal Conditioning | High-precision analog-to-digital pre-processing |
| Isolation | Channel-to-system galvanic isolation |
| Logic Voltage | 24 VDC ±10% (supplied via system backplane) |
| Protection | Built-in surge suppression and fault monitoring |
| Operating Temp | -40 °C to +70 °C (Industrial grade) |
| Dimensions | Standard Mark VI board form factor (~266 × 197 mm) |
| Weight | 0.8–1.0 kg |
| PCB Coating | Normal protective conformal coating |
Engineering and Operational Guidelines
-
AC Feedback Expertise: The IS200EACFG2ABB excels at capturing raw AC waveforms from the exciter and converting them into conditioned signals. This expertise allows the Mark VI system to perform real-time calculations for reactive power (VARs) and generator power factor regulation.
-
Protective Isolation Design: A trustworthy feature of the EACF board is its robust isolation barrier. By decoupling the field-side AC signals from the VME logic bus, it prevents ground loops and EMI interference from compromising the integrity of the turbine control algorithms.
-
Integrated Diagnostics: The board includes authoritative diagnostic hardware that monitors the health of the feedback loops. If an AC signal is lost or falls outside of expected hardware thresholds, the board triggers an immediate fault alert, allowing the system to switch to redundant feedback sources or execute a controlled trip.
-
Industrial Reliability: Designed for 24/7 operation in power plants and heavy industrial facilities, the IS200EACFG2ABB utilizes high-stability components to minimize thermal drift, ensuring measurement accuracy across its entire -40 °C to +70 °C operating range.
Technical FAQ
Q: How does the IS200EACFG2ABB interface with the exciter control loops?
A: The board receives raw signals from current transformers (CTs) and potential transformers (PTs) in the exciter cabinet. It conditions these signals and transmits the data to the EMCS (Exciter Main Control) or UCVE (Universal Controller) boards for final logic processing.
Q: What is the significance of the "G2ABB" revision level?
A: The "G2ABB" suffix denotes the specific functional hardware group and software revision. It is a professional best practice to ensure that the "G2" designation matches your existing hardware architecture, as different groups in the Mark VI series may have varied signal gain settings or pinout configurations.
Q: Can this board be used for both gas and steam turbine excitation?
A: Yes. The IS200EACFG2ABB is an application-flexible module. Its primary role is feedback measurement, which is required for any synchronous generator controlled by the GE Mark VI excitation framework.
