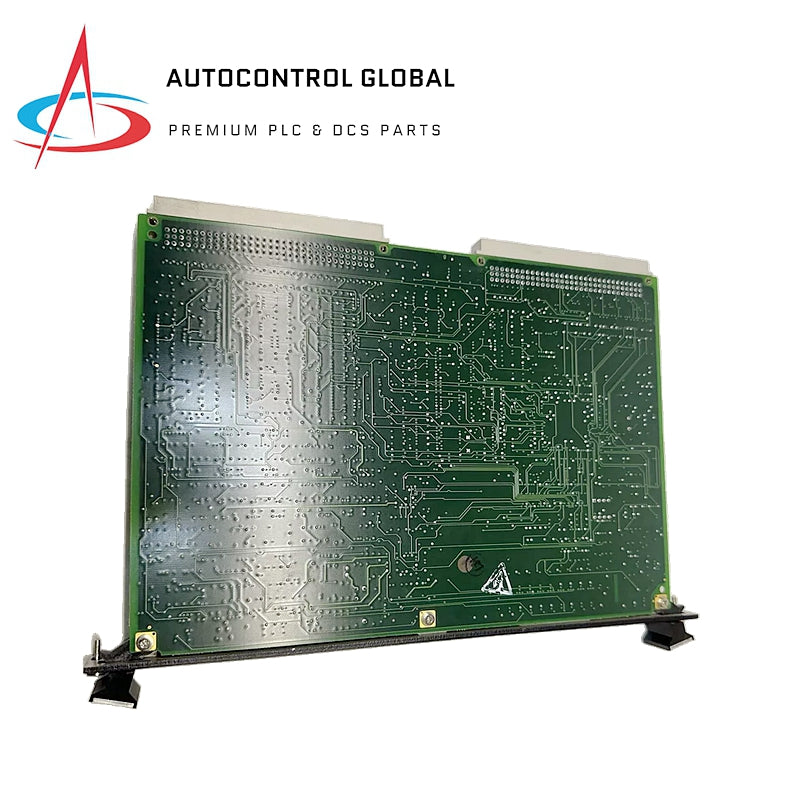

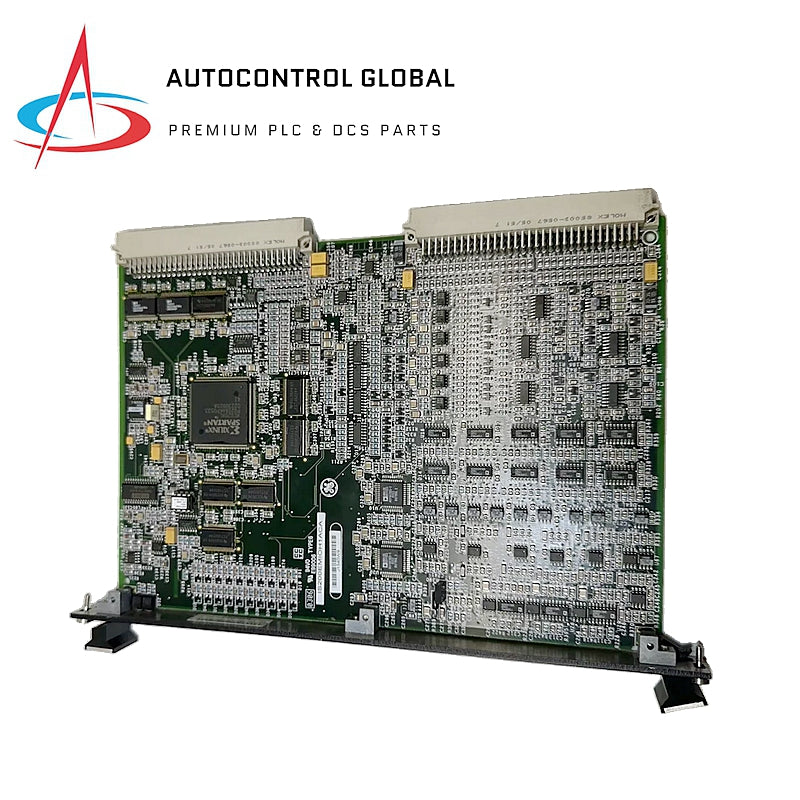

General Electric | IS200EMIOH1ACA | Printed Circuit Board

Overview

The IS200EMIOH1ACA is a printed circuit board (PCB) designed by General Electric for the Mark VI Speedtronic series. This board plays a key role in managing input and output signals for the Mark VI control system, interfacing with other boards such as EXTB, EACF, ECTB, and EPCT.

Key Information

• Manufacturer: General Electric
• Series: Mark VI Speedtronic
• Product Type: Printed Circuit Board (PCB)
• Functional Design: Input/Output (I/O) management board

Board Features

Electrical and Components

• Resistors: 400+
• Capacitors: 400+
• Diodes: Numerous
• Integrated Circuits: ~80
• FPGAs: Field-programmable gate arrays
• Transistors & Test Points: Present for signal testing

Connectors & Indicators

• Connectors: Two backplane connectors (P1, P2)
• LED Indicators: Power and status indicators
• Mounting: Front faceplate with clips for secure installation

Environmental

• Installation: Double-height, single-slot VME style board
• System: Compatible with GE's Windows-based HMI for easy access and control

Additional Information

The IS200EMIOH1ACA board integrates complex components and is designed to ensure smooth operation within the Mark VI system. Its front faceplate and backplane connectors allow for easy installation and secure operation within the rack system.
