General Electric | IS210AEPSG1AFC | Printed Circuit Board

Overview

The IS210AEPSG1AFC is a GE Mark VI printed circuit board designed for turbine management within the Speedtronic series, ensuring reliable control of heavy-duty steam or gas turbines.

System Compatibility

• Series: Mark VI, part of the Speedtronic system
• Applications: Heavy-duty steam and gas turbine monitoring and management
• Features: Shaft voltage monitoring, temperature and flame detection, vibration analysis

Physical Characteristics

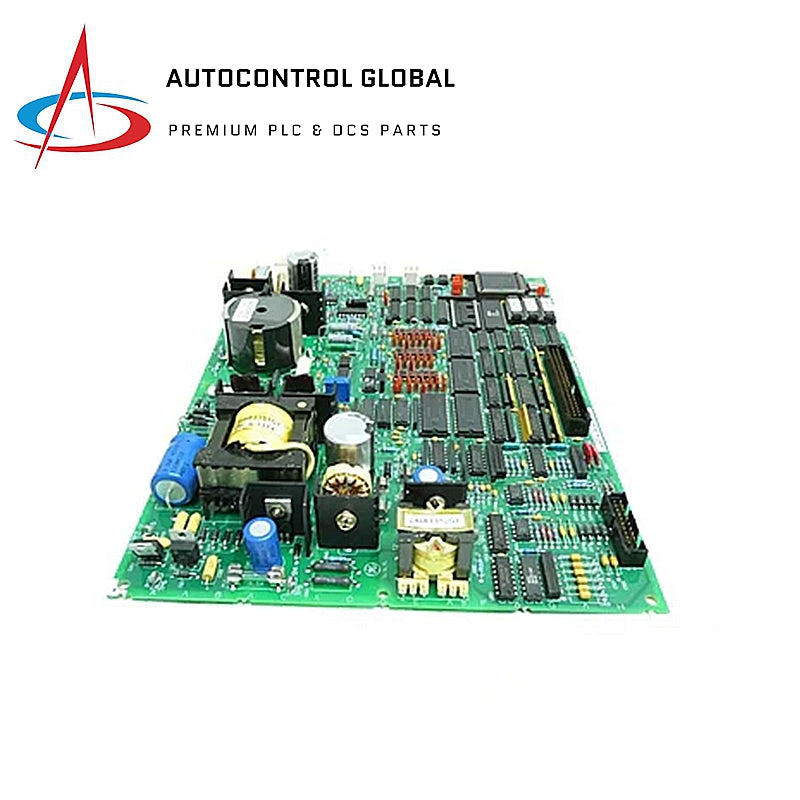

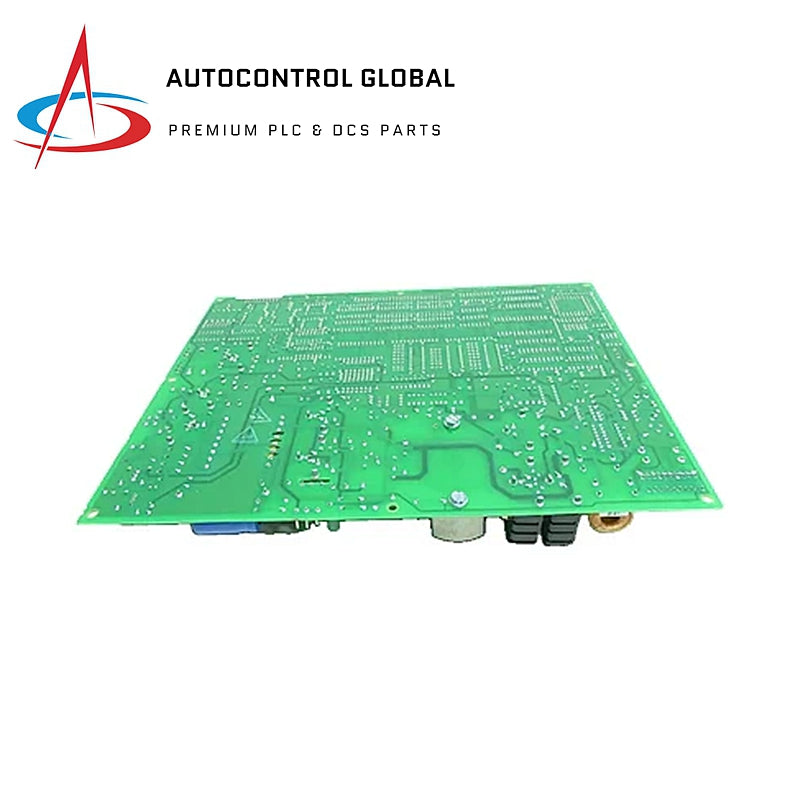

• Shape: Small rectangular board
• Drill Holes: Present in corners and additional locations
• Components: Transformers, inductor coil, power supply

Key Features

• Fuses: 12 total, arranged in various configurations
• Varistor: Variable resistor for circuit protection
• Capacitors: Polyester vinyl, ceramic, and high-voltage electrolytic types
• Resistors: Metal film resistors for precision

Additional Components

• Connectors: Stab-on, plug, and header connectors
• Indicators: LED indicators for status monitoring
• Heat Sinks: Located near transistors for heat dissipation
• Integrated Circuits: Enhance processing and control
• Test Points: TP test points for diagnostics
