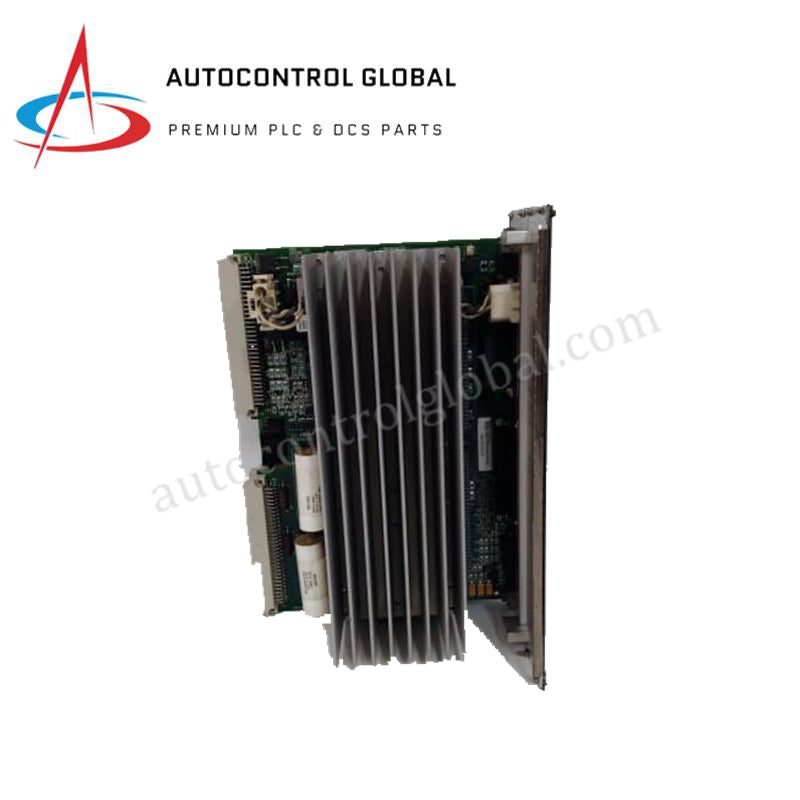

General Electric IS215VPROH1BD VPRO Module G1 Revision
Manufacturer: GE Fanuc
-
Part Number: IS215VPROH1BD
Condition：New with Original Package
Product Type: VME Processor Control Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The IS215VPROH1BD (functional acronym VPRO) is an authoritative VME Processor Control Board manufactured by GE Fanuc for the Mark VI Speedtronic turbine control system. This module is a mechanical necessity for turbine safety, specifically engineered to manage emergency protection functions, overspeed detection, and synchronization logic. As a high-performance processing unit, the IS215VPROH1BD executes critical protective algorithms and coordinates communication across the turbine control rack. Its industrial-grade architecture ensures deterministic real-time response, making it the primary line of defense for gas and steam turbines in power generation and heavy industrial facilities.
Detailed Technical Specifications
| Attribute | Details |
| Manufacturer | GE Fanuc / General Electric |
| Model Number | IS215VPROH1BD |
| Series | Mark VI Speedtronic |
| Functional Acronym | VPRO |
| Product Type | Emergency Protection / VME Processor Board |
| Processor | High-speed embedded industrial CPU (Real-time capable) |
| Memory | Non-volatile Flash for control logic and high-speed RAM |
| Input Voltage | 24 VDC ±10% (via VME backplane) |
| Interface Ports | Ethernet LAN, Serial (RS-232/485), VMEbus |
| Diagnostic Features | Onboard status LEDs and hardware monitoring circuits |
| Operating Temp | -40 °C to +70 °C (-40 °F to 158 °F) |
| Form Factor | Standard 6U VME (266 x 197 mm) |
| Humidity | 5% to 95% non-condensing |
Engineering and Operational Guidelines
-
Emergency Protection Expertise: The IS215VPROH1BD is optimized for high-speed protective switching. It monitors critical turbine parameters such as shaft speed and hydraulic pressure, ensuring a safe shutdown sequence is initiated within milliseconds of a detected fault.
-
Deterministic Signal Processing: Utilizing an embedded industrial CPU, the board processes I/O data with absolute timing consistency. This expertise prevents jitter in protective control loops, which is essential for maintaining the operational integrity of large-scale generator sets.
-
Authoritative Diagnostics: The front faceplate features dedicated status LEDs that provide immediate visual confirmation of the processor's health, Ethernet link activity, and internal board power status. These diagnostics simplify field maintenance and fault isolation in complex Mark VI racks.
-
VMEbus Communication: As a standard VME module, the IS215VPROH1BD facilitates robust communication between the protection core and the primary control cores (<R>, <S>, and <T>). This ensures that protective actions are synchronized across the entire system.
Technical FAQ
Q: What is the primary role of the VPRO board in a Triple Modular Redundant (TMR) system?
A: In a TMR configuration, the IS215VPROH1BD typically resides in the protection core (Core <P>). It works independently of the main control processors to provide a redundant, "watchdog" level of protection that ensures safety even if the primary control cores fail.
Q: Does the "H1BD" suffix affect compatibility with earlier VPRO versions?
A: The "H1BD" suffix indicates a specific hardware revision level. While functionally similar to other H1 series boards, it is a professional best practice to ensure the functional revision matches your system’s software configuration to guarantee full compatibility with existing firmware PROMs.
Q: Can the IS215VPROH1BD handle overspeed protection directly?
A: Yes. The board is designed to interface with magnetic speed pickups to calculate shaft RPM and execute an emergency trip if the pre-set safety limits are exceeded.
