General Electric IS215WEMAH1B Mark VI Exciter Board IS215WEMAH1BB

GE IS215WEMAH1B Mark VI Module

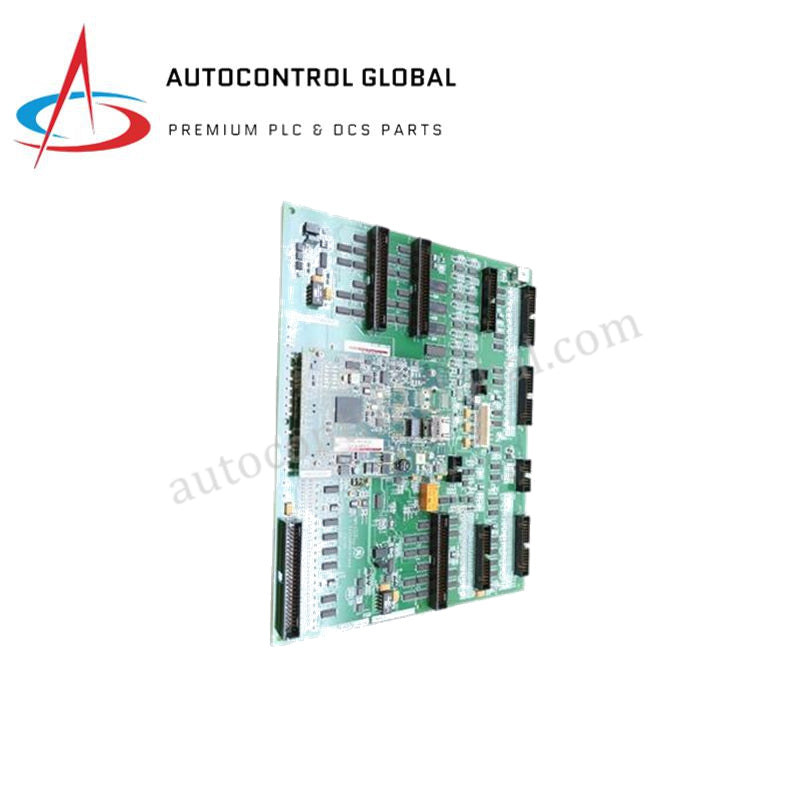

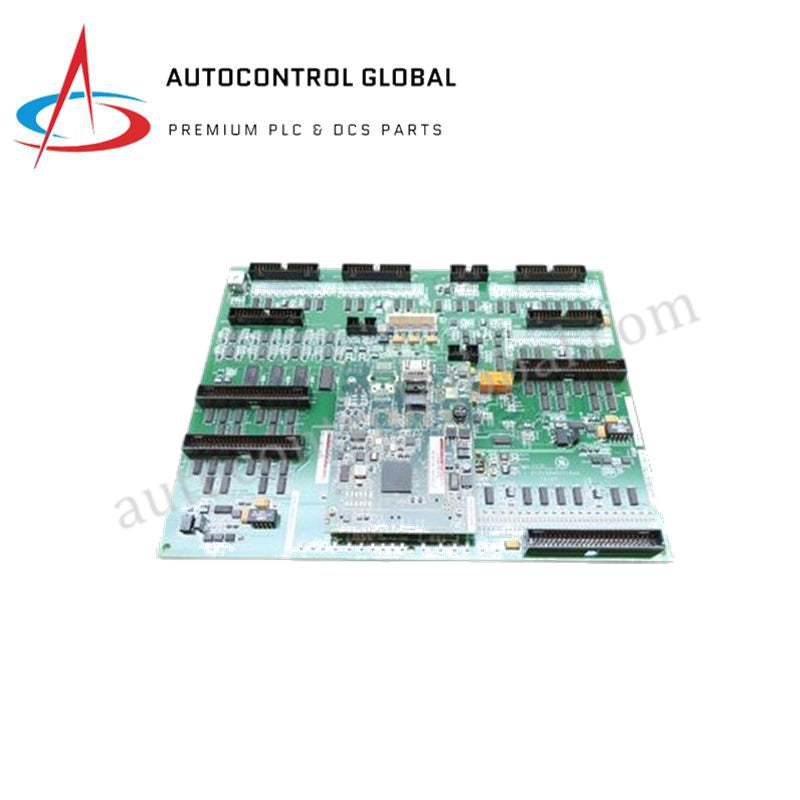

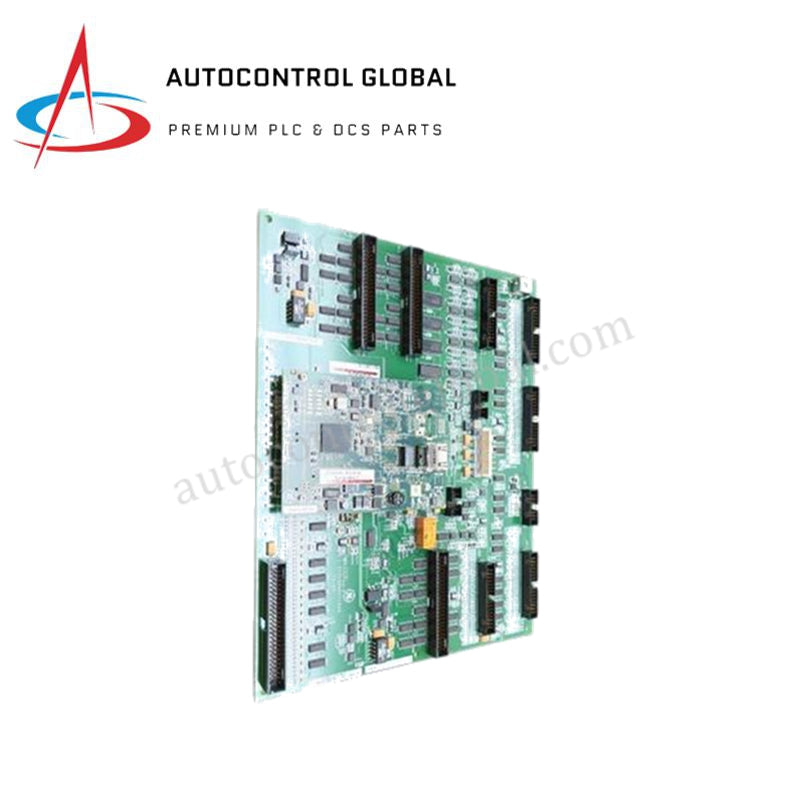

The General Electric IS215WEMAH1B, also cataloged as the IS215WEMAH1BB Wind Exciter Main Assembly Module (featuring baseboard IS200WEMAH1AEA), serves as the primary IS215WEMAH1B printed circuit board utilized to execute synchronous generator field excitation across GE Mark VIe and EX2100e platforms. It provides direct physical/electrical execution by regulating and delivering variable DC output current up to 50 A continuous directly to the generator field windings, maintaining real-time loop stability based on backplane command signals.

Suffix Breakdown & Model Matrix

The complete assembly consists of two distinct hardware layers that govern its core functionality and revision lifecycle:

• IS215WEMAH1B / IS215WEMAH1BB: The complete top-level engineering assembly designation, configuring the component with application-specific firmware, components, and communication links for wind and thermal excitation loops.
• IS200WEMAH1AEA: The raw base printed circuit board (PCB) fabric containing the underlying structural copper traces, discrete surface-mount components, and VME backplane connection pins before layout customization.

Hardware Specifications

Industrial Control and Drive Attributes

The IS215WEMAH1B interfaces via deterministic high-speed loops with the controller rack, executing high-capacity power control loops under rigid timing constraints. To maintain communication velocity across the VME backplane bus, the module utilizes deterministic field processing architecture. This ensures that fault protection routines—such as short-circuit clamping and thermal shutdown overrides—execute independent of host processor latency. The onboard flash firmware profile matches the strict synchronization metrics required by host EX2100e frameworks to prevent flux imbalances during live load steps.

Frequently Asked Questions

Q: How does the module execute automatic shutoff during an overvoltage or overcurrent fault condition?

A: The board features hardware-level analog comparator loops that bypass the Ethernet and VME processing stack. If the output voltage exceeds 300 VDC or currents cross safety limits, the gate drive circuits instantly drop the excitation output to 0 VDC within microseconds to protect the synchronous field coils.

Q: What are the cooling requirements given the module's 50 A continuous rating?

A: The physical design depends heavily on cross-flow rack ventilation within the VME enclosure. Airflow must be maintained across the board components to limit junction temperatures, particularly when the module operates near its ambient maximum threshold of +65 deg C under full load.

Q: Is this assembly hot-swappable while the generator is actively under excitation control?

A: No. Removing or inserting the module while the VME backplane is powered can induce severe inductive spikes from the generator field windings and disrupt dual-redundant tracking networks, leading to a complete unit trip. The excitation loop must be fully de-energized before hardware extraction.

Field Installation Guidelines

• Slide the module carefully into its designated slot within the VME chassis, ensuring the upper and lower injector/ejector handles align correctly with the rack faceplate before seating the multi-pin backplane connectors.
• Tighten the retaining screws at the top and bottom of the front panel to provide stable grounding path continuity between the faceplate and the structural rack chassis.
• Route all high-current external DC excitation output cables away from low-voltage communication lines to limit electromagnetic interference across the 10/100 Mbps Ethernet ports.
• Verify that the rack grounding strap exhibits less than 1 Ohm resistance to the main plant earth bus before routing field cables to the module terminals.
