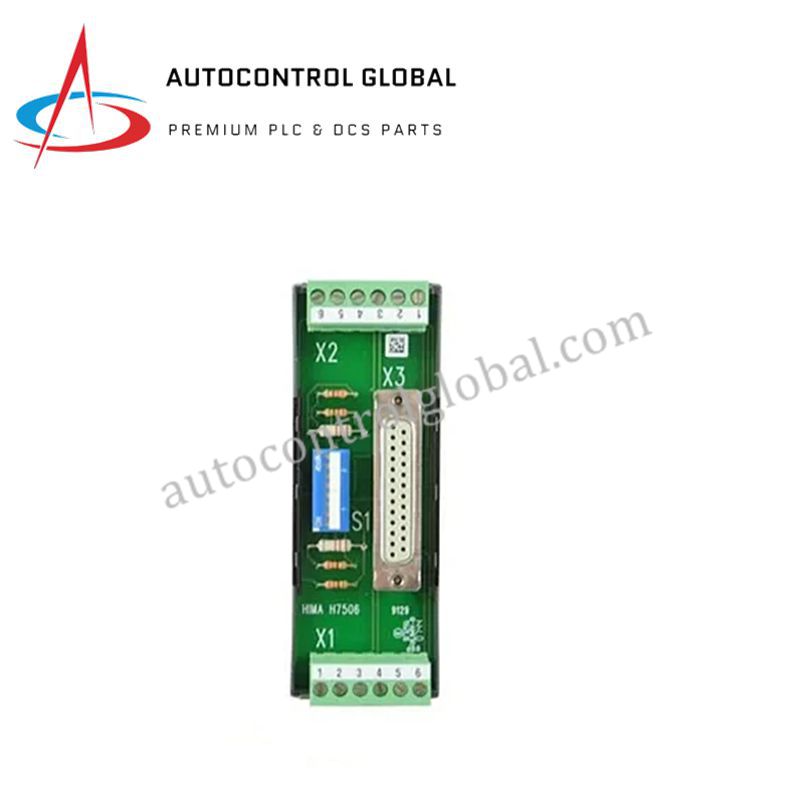

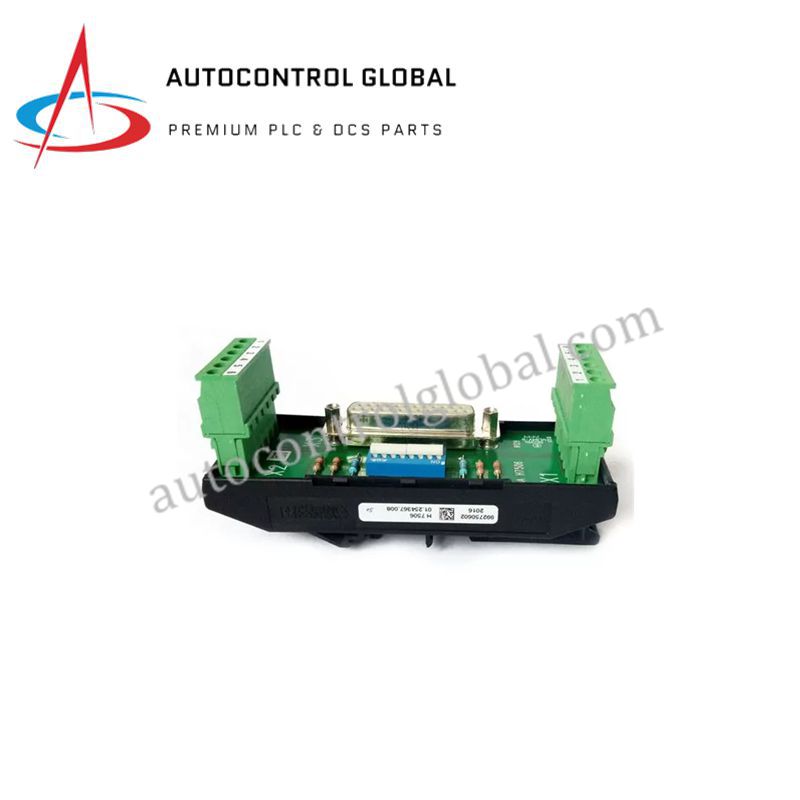

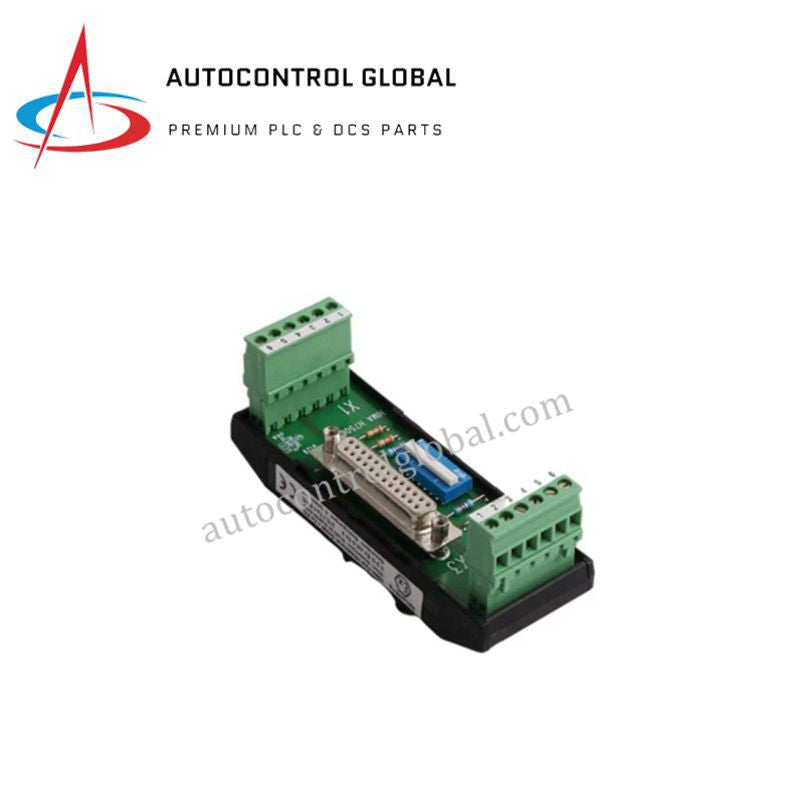

H7506 | HIMA | Safety Communication Terminal
Manufacturer: HIMA
-
Part Number: H7506
Condition：New with Original Package
Product Type: Safety Communication Terminal
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The HIMA H7506 is a specialized bus terminal module for safe and reliable communication within HIMA safety systems. It enables secure data transfer between H41q and H51q controllers and other distributed safety components.
Part of the HIQuad X family, this terminal supports redundant connectivity, ensures signal integrity, and facilitates reliable bus termination. It is designed for industrial environments with vibration, dust, and temperature considerations.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | H7506 |
| Type | Bus Terminal Module |
| Primary Function | Connects single-channel or redundant PES via 2-wire bus |
| Connector Type | 25-pole D-sub socket for PES; two 6-pole plug clamps for 2-wire bus |
| Bus Termination | Selectable onboard termination resistors |
| Mounting Format | DIN rail mount |
| System Compatibility | HIMA H41q / H51q controllers, HIQuad X systems |
| Operating Voltage | 24 VDC (supplied via system bus) |
| Operating Temperature | –20°C to +60°C |
| Environmental Protection | Resistant to vibration, dust, and industrial contaminants |
| Dimensions | Compact form factor suitable for control cabinet installation |
| Certifications | CE, RoHS, TÜV, SIL 3 (IEC 61508 compliant) |
| Condition | Brand-new, original packaging |
| Manufacturer | HIMA |
| Weight | 0.24 lbs |
