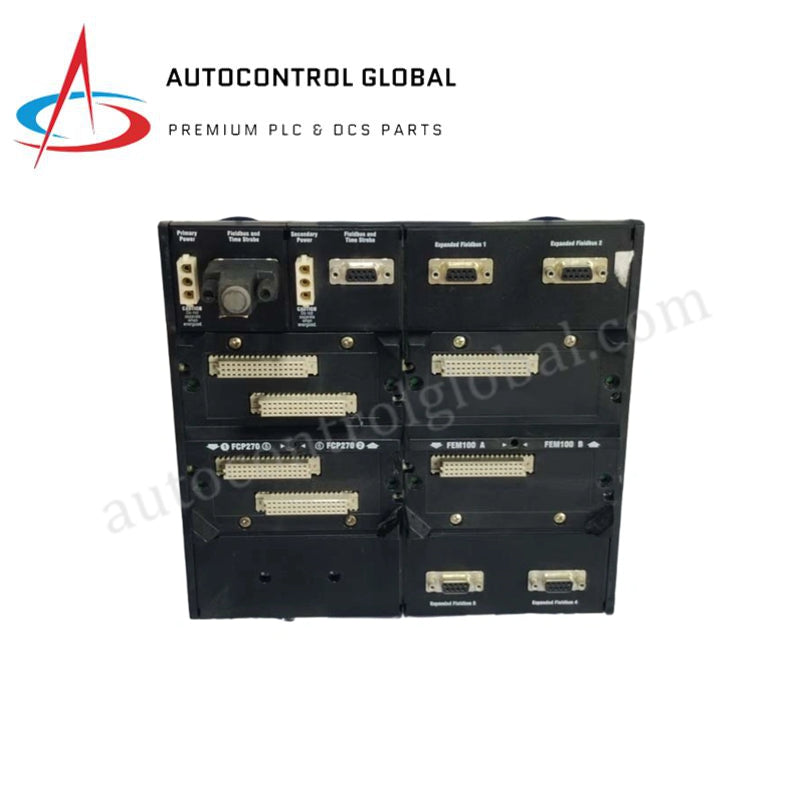

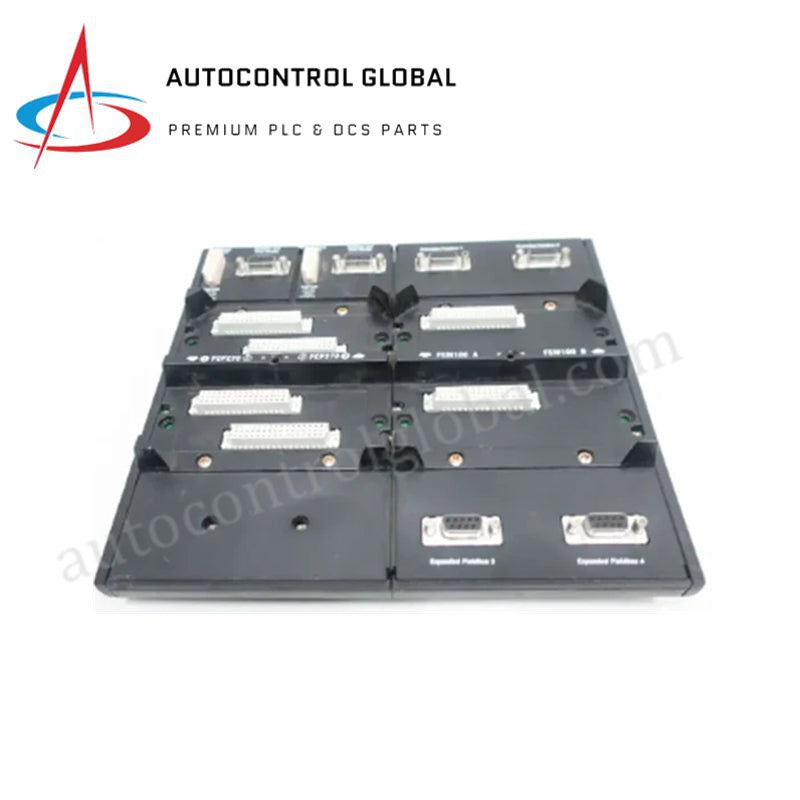

High Performance Control Module | Foxboro FCP270 (P0973CN)

Product Overview

The FCP270 P0973CN (Model: FCP270) is a high-performance Field Control Processor (FCP) engineered for the Foxboro I/A Series Distributed Control System (DCS). As a central computational hub, the FCP270 (Part Number: P0973CN) is responsible for the execution of real-time regulatory control, complex logic sequencing, and safety interlock functions. This module facilitates the seamless translation of field data from I/O modules into actionable control strategies, ensuring process stability across large-scale industrial infrastructures.

The FCP270 P0973CN (Model: FCP270) revision is optimized for high-reliability environments, offering enhanced hardware diagnostic capabilities and robust signal processing. It supports high-density configurations within the Foxboro chassis, allowing for efficient communication via the 100 Mbps Mesh control network and the 2 Mbps Fieldbus. Its deterministic execution environment makes it an essential component for mission-critical operations in the oil and gas, power generation, and chemical processing industries.

Technical Specifications

The FCP270 P0973CN provides advanced processing power and network integration for the Foxboro I/A Series platform.

• Manufacturer: Foxboro (by Schneider Electric)

• Model Number: FCP270

• Part Number: P0973CN

• Product Type: Field Control Processor (Process Controller)

• System Compatibility: Foxboro I/A Series DCS, EcoStruxure Foxboro

• Memory Architecture: High-capacity SDRAM and Flash for control strategy storage

• Control Functions: Regulatory control, logic sequencing, advanced alarms, and interlocks

• I/O Capacity: Interfaces with up to 64 Fieldbus Modules (FBMs)

• Communication Ports: Redundant 100 Mbps Ethernet (The Mesh) and 2 Mbps Fieldbus

• Data Update Rate: Configurable down to 10 ms for high-speed loops

• Redundancy Support: Supports hardware fault-tolerant redundant pairing

• Power Supply: +24 V DC nominal, sourced from the system backplane

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: –40 °C to +70 °C

• Relative Humidity: 5% to 95% (non-condensing)

• Mounting: Installs into standard FCP baseplate or chassis

• Weight:  0.35 kg
