High-Performance Drive Logic Board | GE DS200SDCIG1A
Manufacturer: GE Fanuc
-
Part Number: DS200SDCIG1A
Condition:New with Original Package
Product Type: Drive Control Boards
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

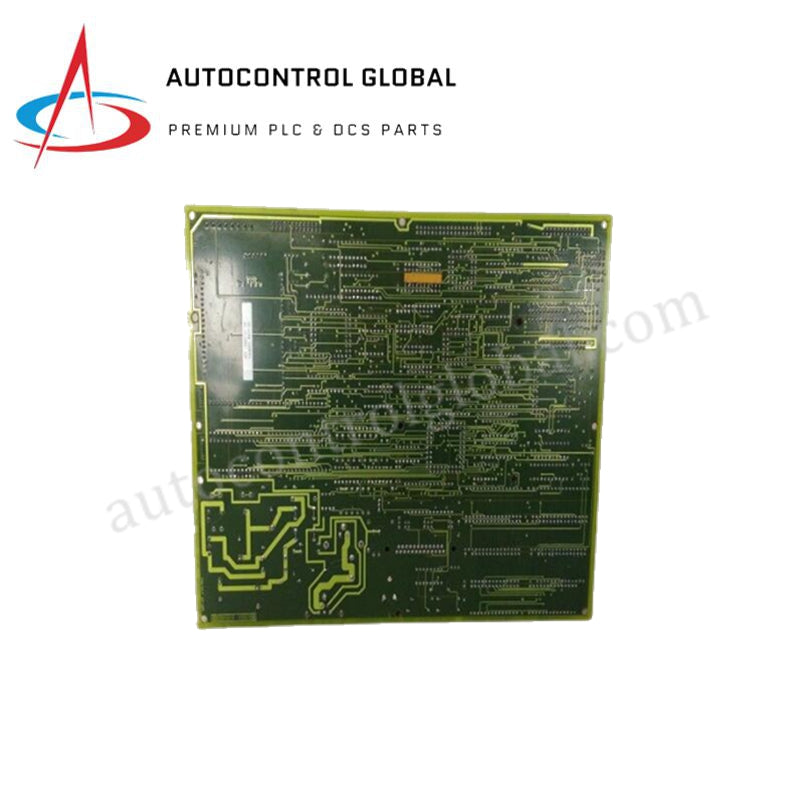

The GE DS200SDCIG1A (SDCI) functions as the primary Drive Control Board for the Speedtronic™ Mark V turbine control and power drive architecture. This high-integrity module serves as the central processing unit for drive regulation, executing complex control algorithms and coordinating high-speed communication between connected I/O modules and the main control core. By integrating a dedicated microprocessor with onboard memory, the SDCI board manages real-time drive protection, signal processing, and fault diagnostics. It ensures the stable operation of gas and steam turbines by maintaining precise control over inverter drive parameters and power distribution sequences.
Condition: 100% Brand New, Genuine OEM.
Technical Specifications
The DS200SDCIG1A utilizes a high-bandwidth VME bus interface and professional-grade A/D conversion to maintain deterministic control.
| Parameter | Specification |
| Manufacturer | General Electric (GE Vernova) |
| Model Number | DS200SDCIG1A / DS200SDCIG1AHB |
| System Platform | Speedtronic™ Mark V |
| Product Type | Drive Control Board (SDCI) |
| Microprocessor | On-board CPU for logic and algorithm execution |
| Memory Capacity | Integrated SRAM (data) and EPROM (program) |
| Communication | VME bus and high-density ribbon connectors |
| Power Supply | 28 V DC (Nominal) |
| Operating Temp | 0°C to +60°C (32°F to 140°F) |
| Dimensions | 215 × 154 × 30 mm |
| Weight | 0.8–1.0 kg |
Engineering Advantages
-
Integrated Microprocessor Intelligence: The SDCI board features a dedicated on-board CPU that handles real-time control logic independently. This local processing ensures that drive regulation remains precise even during high-load transient events, preventing fluctuations in turbine speed or power output.
-
Comprehensive Diagnostic Suite: Internal firmware monitors the integrity of the entire drive system. The board identifies hardware malfunctions across peripheral I/O modules and reports specific error codes to the HMI, allowing maintenance teams to pinpoint faults without manual circuit probing.
-
Advanced Fault Tolerance: GE designed the DS200SDCIG1A to support Triple Modular Redundancy (TMR) architectures. In a TMR configuration, the board synchronizes with adjacent cores to perform hardware-level voting, ensuring the system ignores single-point failures to maintain continuous turbine uptime.
-
Galvanic Isolation and Surge Protection: The board incorporates robust surge suppression circuitry. This protects sensitive microprocessor components from the electrical noise and voltage spikes typical of industrial power halls, ensuring a long service life in harsh electromagnetic environments.
-
Modular Connectivity Architecture: Standardized ribbon cable headers facilitate a "plug-and-play" interface with both digital and analog I/O terminal boards. This modularity allows for rapid board replacement during maintenance windows, significantly reducing Mean Time to Repair (MTTR).
FAQs
Q: Does the DS200SDCIG1A require specific EPROM chips for my turbine?
A: Yes. The board contains sockets for EPROM chips that hold the site-specific control software. While the hardware is brand new, you must either move the existing EPROMs from your old board or load the correct firmware revision for your unit to ensure the control algorithms match your turbine's profile.
Q: What is the primary difference between the SDCI and the TCQC board?
A: The SDCI (DS200SDCIG1A) acts as the Controller/Processor for the drive system. The TCQC is an Analog I/O board that focuses on signal conversion (A/D and D/A). Essentially, the SDCI "makes the decisions" while the TCQC "collects the data."
Q: Can I use this board in both gas and steam turbine applications?
A: Yes. The DS200SDCIG1A is a universal drive control card for the Mark V platform. Its application depends on the firmware loaded into the EPROMs and the specific jumper settings (J-connectors) configured on the PCB.
Q: What are the indicators of a hardware failure on this board?
A: Common indicators include "VME Bus Communication Errors" in the diagnostic software, a failure of the board's status LEDs to illuminate, or a "Core Mismatch" alarm in a TMR system. Always verify the 28V DC power rail at the backplane before replacing the module.
