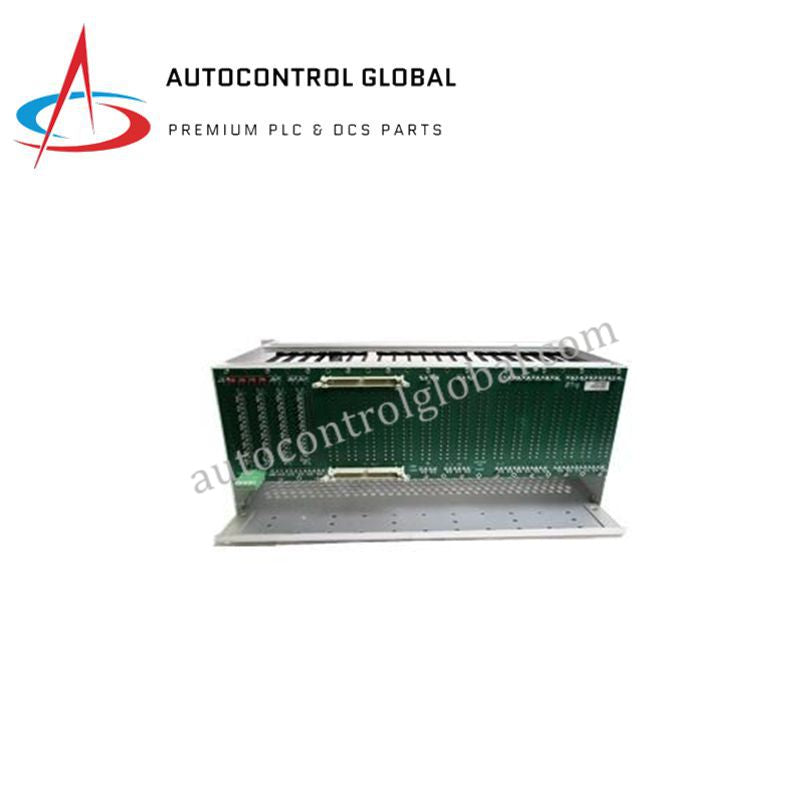

HIMA B9302 | HIMatrix Digital Input/Output Module
Manufacturer: HIMA
-
Part Number: EABT3 B9302
Condition：New with Original Package
Product Type: HIMatrix Digital Input/Output Module
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The HIMA EABT3 B9302 is a digital input/output module for HIMatrix safety systems.
It provides line monitoring for open and short circuits and ensures fault-tolerant operation in critical industrial processes.
This module is ideal for oil & gas, chemical, power generation, and transportation applications, where SIL 3 compliance and reliable diagnostics are essential.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | EABT3 B9302 / B9302 |
| Module Type | Digital Input/Output (DI/DO) Module |
| System Compatibility | HIMatrix Series |
| Safety Certification | SIL 3 (IEC 61508), Cat. 4 (EN 954-1), PL e (EN ISO 13849-1) |
| Digital Inputs | 24 channels with individual LED status |
| Digital Outputs | 8 channels with LED status |
| Input Signal Range | 0–30 VDC (interpreted as INT 0–3000) |
| Output Load Capacity | Outputs 1–3, 5–7: 0.5 A; Outputs 4 & 8: up to 2 A at ≤50°C |
| Fault Monitoring | Short-circuit detection, open-circuit monitoring via analog inputs |
| Line Monitoring | Analog inputs and shunt resistors detect wiring faults |
| Supply Voltage Monitoring | S1 supply monitored via digital input channel |
| Mounting Format | Panel or DIN rail mount |
| Dimensions | 19″ x 1.75″ x 7.5″ |
| Weight | 2.5 lbs |
| Environmental Suitability | Designed for rugged industrial conditions |
