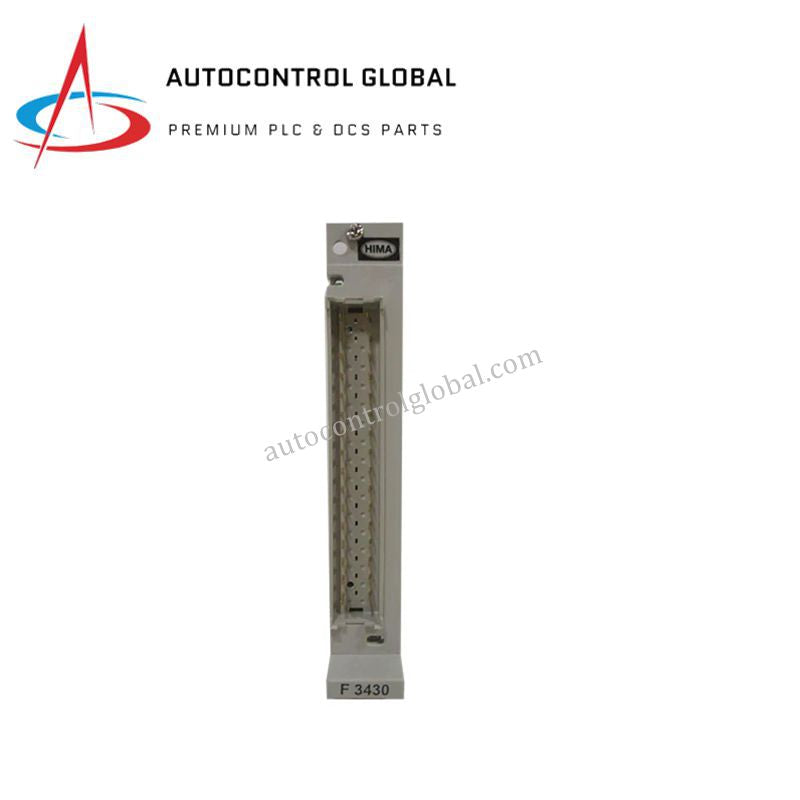

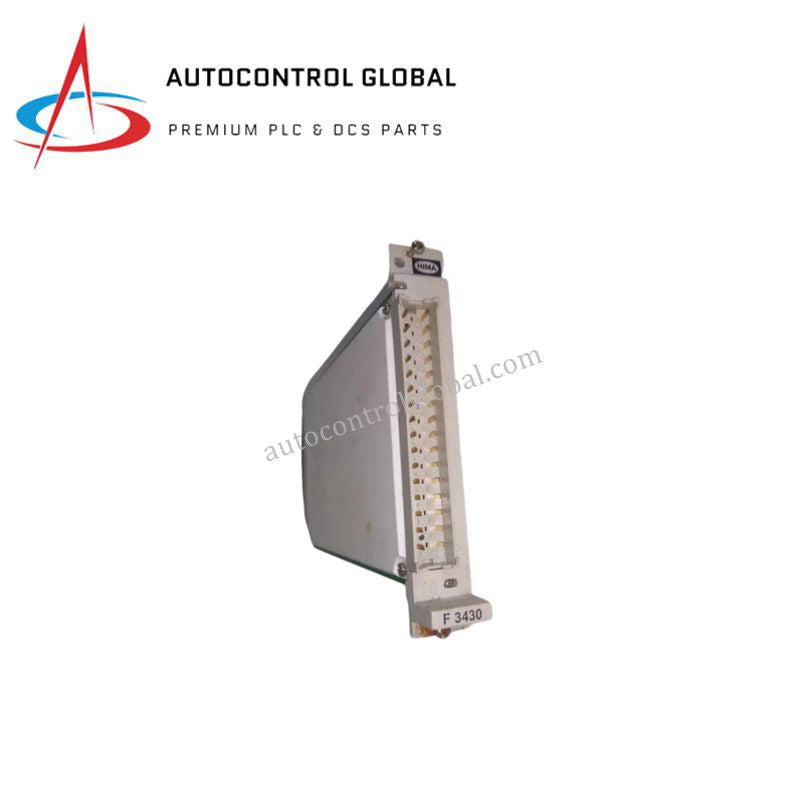

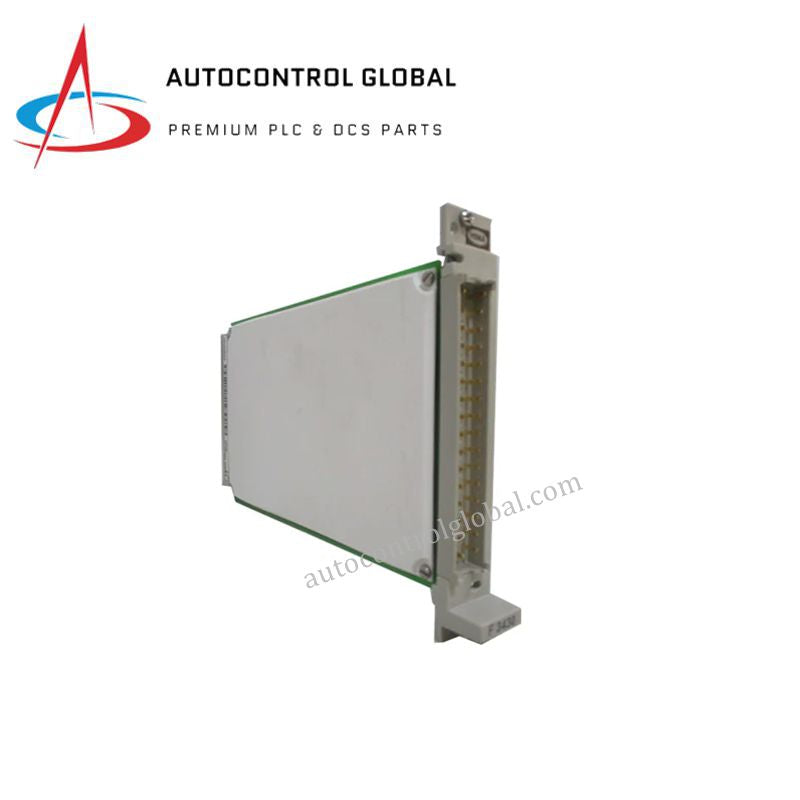

HIMA F-3430 Relay Module | Reliable Safety Output Card
Manufacturer: HIMA
-
Part Number: F3430
Condition：New with Original Package
Product Type: Reliable Safety Output Card
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The HIMA F3430 is a 4-fold safety relay module developed by HIMA Paul Hildebrandt GmbH, designed for use in Safety Instrumented Systems (SIS) and high-integrity automation platforms. It provides reliable signal switching and isolation functions for safety-critical control systems in oil & gas, chemical, and power generation industries.
Each relay output channel offers normally open (NO) contacts, built with gold-flashed silver alloy for enhanced conductivity and corrosion resistance. The F3430 ensures fast response performance, featuring a switching time of approximately 8 ms, reset time of 6 ms, and bounce time of just 1 ms. These characteristics make it ideal for precise and rapid safety responses.
Engineered for longevity, the module guarantees over 30 million mechanical operations and more than 250,000 electrical cycles under full load conditions. Moreover, it supports switching currents from 10 mA to 4 A and offers excellent switching capacity for both AC and DC applications. Designed for compact rack mounting, the F3430 maintains low power consumption and robust performance even under demanding environmental conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | F3430 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Type | 4-Fold Safety Relay Output Module |
| Relay Output | Normally Open (NO), dust-tight |
| Contact Material | Silver alloy, gold-flashed |
| Switching Time | 8 ms |
| Reset Time | 6 ms |
| Bounce Time | 1 ms |
| Switching Current | 10 mA ≤ I ≤ 4 A |
| Mechanical Life | ≥ 30 × 10⁶ operations |
| Electrical Life | ≥ 2.5 × 10⁵ operations (resistive load) |
| Switching Capacity (AC) | Max. 500 VA, cos φ > 0.5 |
| Switching Capacity (DC, non-inductive) | Up to 30V DC: 120W |
| Operating Power | 5V DC: <100 mA |
| Space Requirement | 4 TE |
| Weight | 2 kg |
| Country of Origin | Germany |
FAQ
Q1: What is the function of the HIMA F3430 module?
A1: The F3430 is a 4-fold relay output module used for switching and isolating safety-related control signals.
Q2: What is the switching capacity of the relays?
A2: It supports up to 500 VA for AC loads and 120W for 30V DC resistive loads.
Q3: How long is the relay lifetime?
A3: It provides over 30 million mechanical operations and 250,000 electrical operations under rated load.
Q4: What contact materials are used?
A4: The contacts are made of gold-flashed silver alloy, ensuring durability and corrosion resistance.
Q5: Is this module suitable for safety applications?
A5: Yes, it is safety-rated and widely used in Safety Instrumented Systems (SIS).
