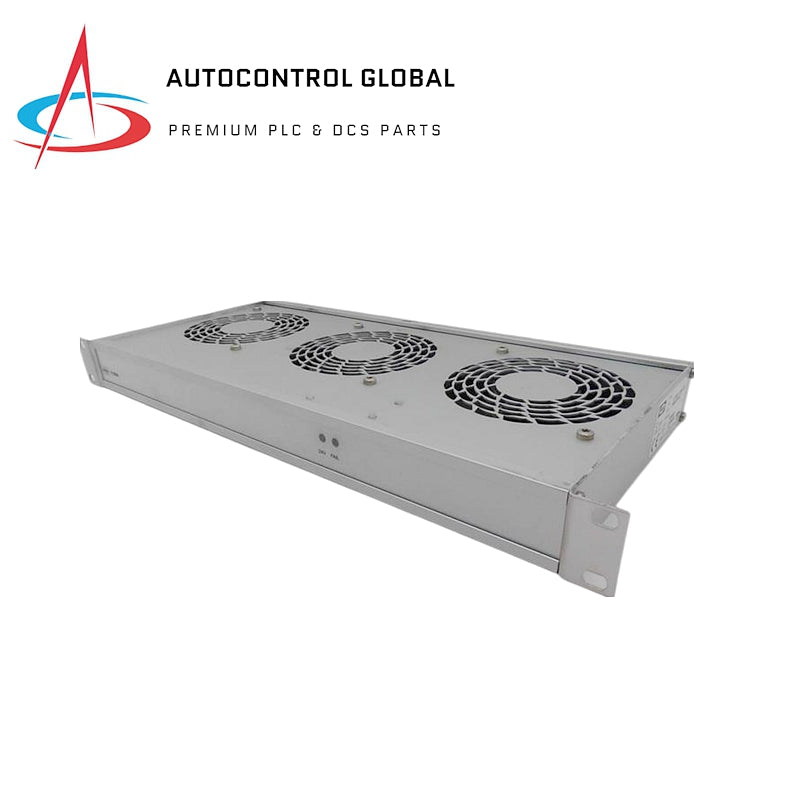

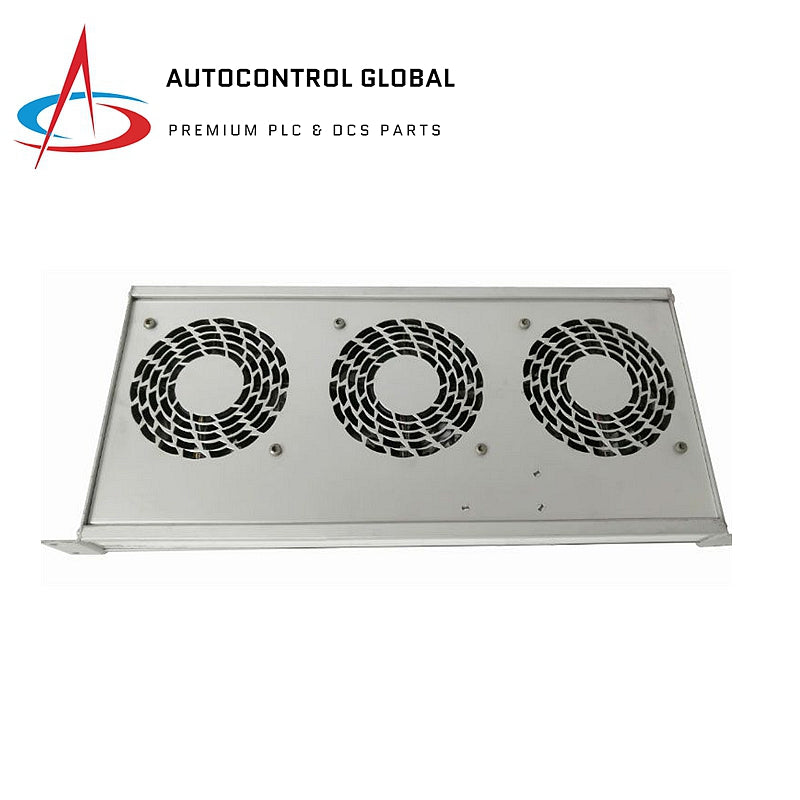

Hima K 9203 | K9203 | Circulation Fan Drawer

Overview

The Hima K 9203 is a circulation fan drawer designed for efficient cooling in various applications. It features a 3-axis design and includes a run monitor for optimal performance.

Specifications

• Material: Aluminum, anodized
• Operating Data:
  • Voltage: 24 VDC, -15…+20%, rpp ≤ 15%
  • Current: max. 750 mA
• Air Flow: 300 m³ per hour
• Rated Speed: 2800 min⁻¹
• Sound Pressure Level: approx. 55 dB(A)
• Lifetime: at 40 °C: 62,500 hours
• Space Requirement: 19", 1 RU, depth 215 mm
• Weight: 1.8 kg
• Ambient Temperature: -20...+70 ºC
