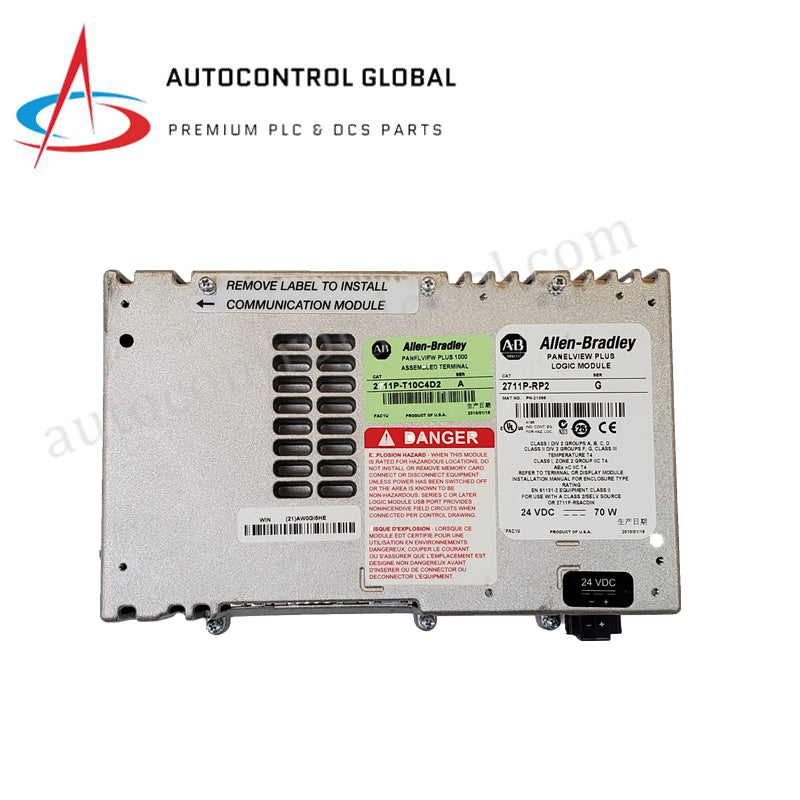

Allen-Bradley 2711P-RP2 PanelView Plus Logic Module 128MB 24V DC

Product Description

The 2711P-RP2 (2711P-RP2) is a high-performance logic module designed for the Allen-Bradley PanelView Plus 700, 1000, 1250, and 1500 series operator terminals. As the central processing engine of the HMI, this module manages the execution of FactoryTalk View Machine Edition (ME) runtime applications, data logging, and communication with programmable logic controllers (PLCs).

This unit is designed for modular assembly, mounting directly to the rear of a compatible display module to form a complete HMI terminal. The 2711P-RP2 (2711P-RP2) features 128 MB of non-volatile Flash memory and 128 MB of RAM, providing ample resources for complex graphical displays and alarm management. Running on the Windows CE platform, it supports extended functionality including ActiveX controls, ViewPoint compatibility for web-based monitoring, and remote access via VNC or FTP.

Detailed Technical Specifications

The 2711P-RP2 is engineered for precision and reliability in industrial environments:

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 2711P-RP2

• Series: PanelView Plus (Original series for 700-1500 terminals)

• Module Type: Logic Module (Processor Engine)

• Operating System: Windows CE

• System Memory: 128 MB RAM

• Storage Memory: 128 MB Flash (Non-volatile)

• Input Voltage: 24V DC (18–30V DC range)

• Power Consumption: 70 Watts Maximum

• Communication Ports: 1 x 10/100 Ethernet, 1 x RS-232, 2 x USB Host

• Expansion Support: Compatible with 2711P-RNx communication modules (DH+, DH-485, RIO)

• Software Support: FactoryTalk View ME (Single Application limit)

• Operating Temperature: 0 to 55 °C (32 to 131 °F)

• Weight: 0.91 kg (2.01 lbs)

• Lifecycle Status: Discontinued (Maintenance availability only)
