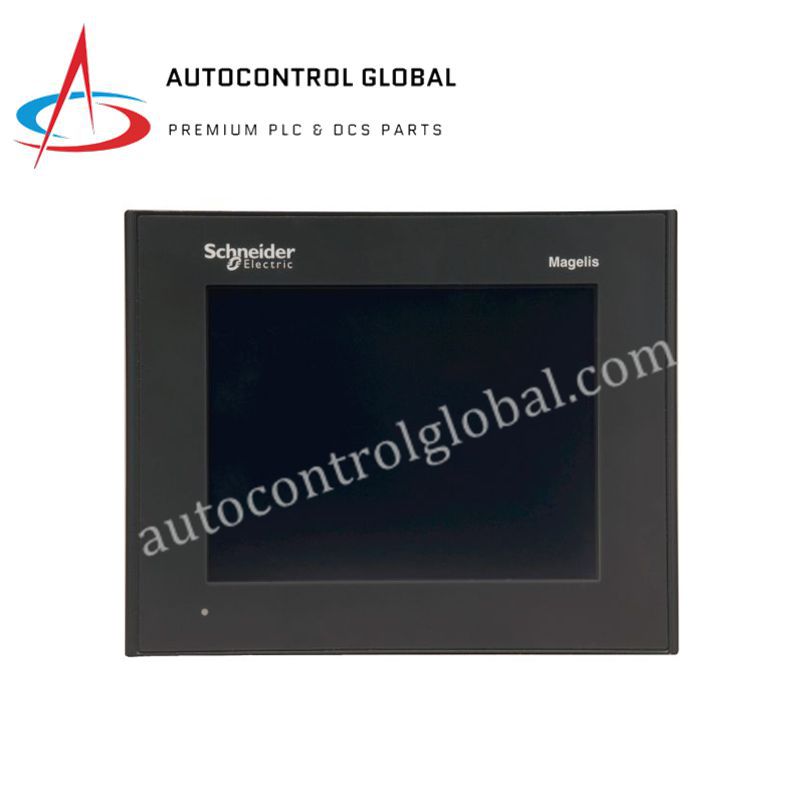

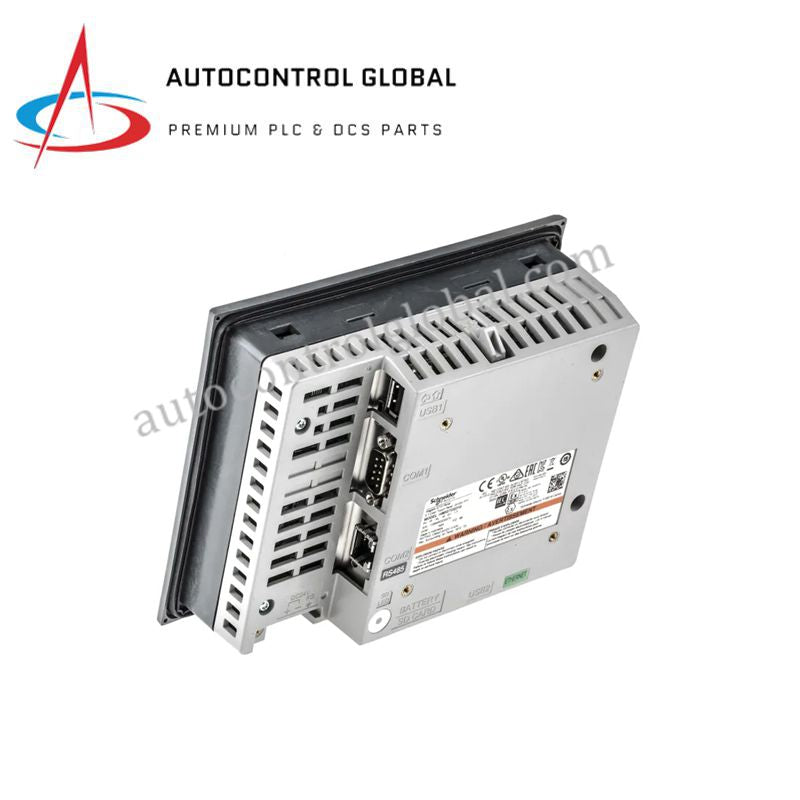

HMIGTO2310 | Schneider Magelis GTO Industrial Touchscreen

Product Description

Product Overview

The Schneider Electric HMIGTO2310 is a compact 5.7-inch color touchscreen HMI designed for efficient machine interaction in industrial environments. Moreover, it belongs to the Magelis GTO advanced range, which is widely trusted for reliability and long operational life.

This operator interface delivers clear visualization, stable communication, and simple configuration for small to mid-scale automation systems. Therefore, it fits perfectly in compact machines where space, clarity, and reliability matter.

Technical Specifications

General Information

• Brand: Schneider Electric

• Product Range: Magelis GTO

• Model: HMIGTO2310

• Product Type: Graphic Touchscreen Operator Interface

Display

• Screen Size: 5.7 inches

• Display Type: TFT color LCD

• Resolution: 320 × 240 pixels (QVGA)

• Backlight: Yes

• Touch Technology: Analog resistive

Performance and Memory

• Processor Type: RISC

• Memory: 96 MB EPROM

Interfaces and Connectivity

• Ethernet: 1 × Ethernet TCP/IP

• Serial Communication: 1 × RS232C, 1 × RS485 host

• USB Ports: 1 × USB host, 1 × USB Mini-B

Electrical and Mechanical

• Supply Voltage: 24 V DC

• Cooling Method: Natural convection

• Front Material: PPT

• Enclosure Material: PPT

Environmental Protection

• Front Protection Rating: IP65

Dimensions and Weight

• Width: 169.5 mm

• Height: 137 mm

• Depth: 59.5 mm

• Net Weight: 0.8 kg

FAQ

What is the screen size of the HMIGTO2310 HMI?
The HMIGTO2310 features a compact 5.7-inch color TFT touchscreen with QVGA resolution.

Which communication ports are available on this model?
It includes Ethernet TCP/IP, RS232C, RS485 host, and USB host and device ports.

What power supply does the HMIGTO2310 require?
The unit operates on a standard 24 V DC industrial power supply.

Is the HMIGTO2310 suitable for wash-down environments?
The front panel is rated IP65, providing protection against dust and water splashes.

Which software is used to program this HMI?
The HMIGTO2310 is programmed using Schneider Electric Vijeo Designer software.
