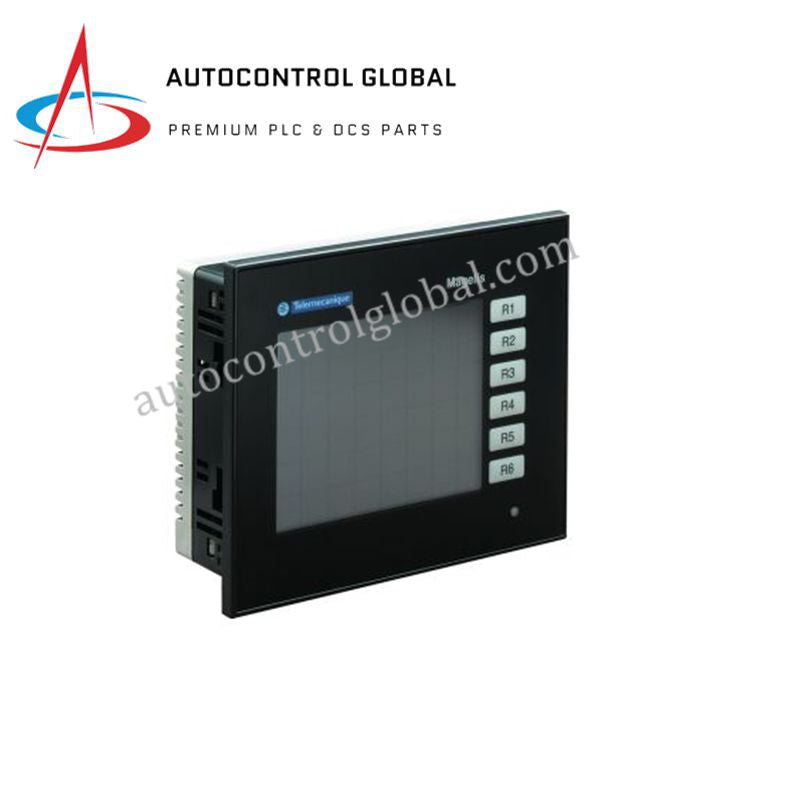

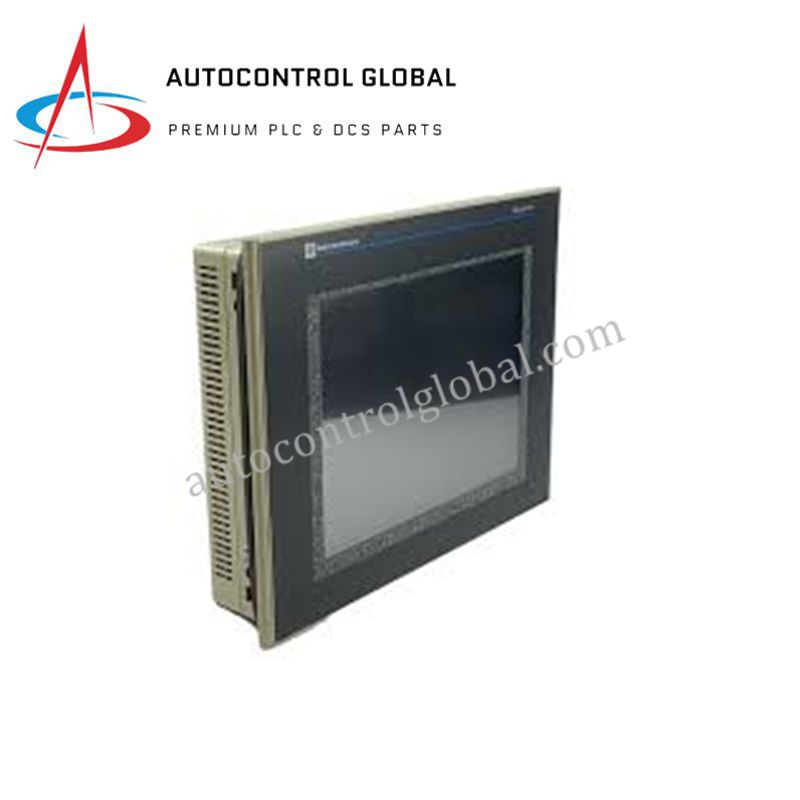

HMIGTO5310 Schneider | 10.4 Inch Magelis GTO HMI Panel

Product Description

Product Overview

The Schneider Electric HMIGTO5310 is a 10.4-inch color touch HMI designed for reliable industrial machine visualization and control. Moreover, it belongs to the Magelis GTO range, widely adopted in factory automation and process control environments.

This graphic terminal combines a clear TFT display with stable RISC processing performance for daily industrial operation. Therefore, operators benefit from responsive interaction, consistent screen rendering, and dependable communication with automation systems.

Technical Specifications

General Information

• Brand: Schneider Electric

• Product Range: Magelis GTO

• Product Type: Graphic Touch Panel HMI

• Manufacturer Part Number: HMIGTO5310

Display Characteristics

• Display Size: 10.4 inches

• Display Type: TFT color LCD

• Resolution: 640 × 480 pixels (VGA)

• Display Colors: Color

• Backlight: Yes

• Touch Technology: Analog resistive touchscreen

Performance

• Processor Type: RISC

• Processor Speed: 333 MHz

• Onboard Memory: 96 MB

Interfaces and Connectivity

• Total Connections: 7

• Ethernet: 2 × Ethernet RJ45

• Serial Ports: COM1, 2 × COM2

• USB Interfaces: 2 × USB 2.0

Electrical Data

• Supply Voltage: 24 V DC

Environmental and Protection

• Front Protection Rating: IP65

• Rear Protection Rating: IP20

• Operating Temperature Range: 0 °C to +55 °C

Mechanical Data

• Dimensions: 272.5 × 214.5 × 57 mm

• Width: 214.5 mm

• Height: 272.5 mm

• Depth: 57 mm

Sustainability

• Better World Product: Yes

• Green Premium Compliance: Verified

FAQ

What is the screen size of the HMIGTO5310 HMI?
The HMIGTO5310 features a 10.4-inch TFT color touchscreen with VGA resolution.

Which communication interfaces are available on this HMI panel?
It includes two Ethernet ports, multiple serial ports, and two USB 2.0 connections.

What power supply does the HMIGTO5310 require?
The unit operates on a standard 24 V DC industrial power supply.

Is the HMIGTO5310 suitable for harsh industrial environments?
Yes, the front panel offers IP65 protection against dust and water exposure.

Does this HMI support Schneider Electric automation systems?
Yes, it integrates seamlessly with Schneider Electric PLCs and automation platforms.
