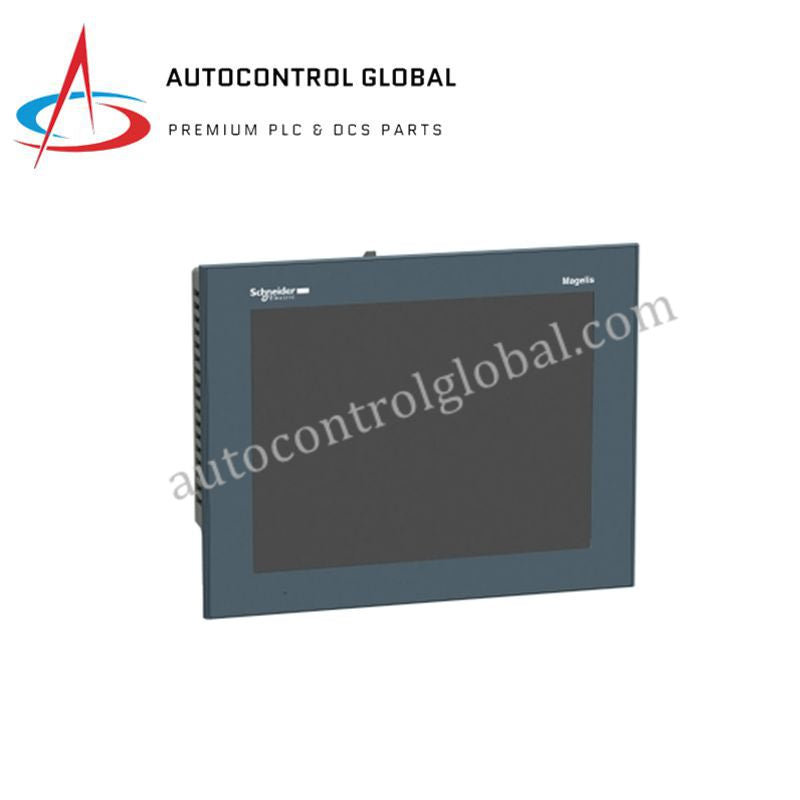

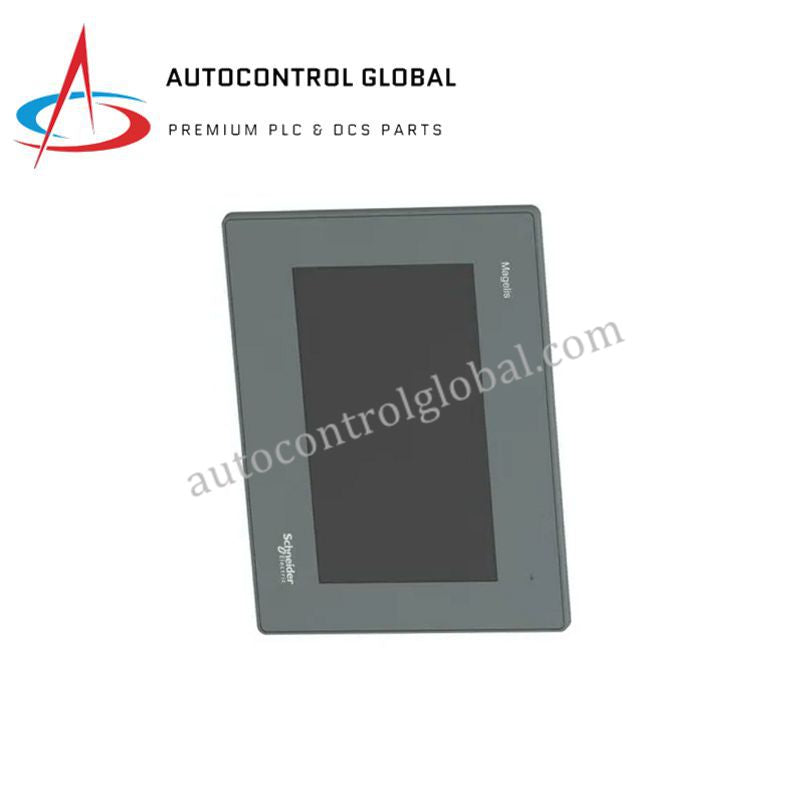

HMIGTO5315 HMI | Schneider Advanced Touchscreen Operator Panel
Manufacturer: Schneider
-
Part Number: HMIGTO5315
Condition：New with Original Package
Product Type: Advanced Touchscreen Operator Panel
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Schneider HMIGTO5315 is a high-performance, IP65-rated touchscreen HMI panel from the Harmony GTO Magelis series. Its 15-inch XGA display (1024 × 768 pixels) provides clear, high-resolution visualization for complex industrial processes. Moreover, the stainless steel frame and rugged design ensure durability in demanding industrial environments.
This HMI supports versatile connectivity with Ethernet, USB, RS232, RS485, and an SD card slot, allowing easy integration with automation systems. In addition, it is programmable with Schneider’s Vijeo Designer or EcoStruxure Operator Terminal Expert software, enabling intuitive graphical setup with minimal coding.
Technical Specifications
| Feature | Specification |
|---|---|
| Product type | Advanced touchscreen HMI panel |
| Display size | 15-inch TFT LCD |
| Resolution | 1024 × 768 pixels (XGA) |
| Colors | 65,536 colors |
| Touch technology | Resistive touchscreen |
| Processor | ARM926EJ-S |
| Memory | 96 MB EPROM |
| Battery | Lithium backup, autonomy ~100 days, lifespan ~10 years |
| Power supply | 24 VDC external |
| Interfaces | 1 × Ethernet TCP/IP, 1 × RS232C, 1 × RS485, 1 × USB host, 1 × USB mini-B, 1 × SD card slot |
| Status indicators | Multicolor LED for operating mode |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Relative humidity | 95% at 60 °C |
| Protection rating | IP65 front panel |
| Enclosure material | Stainless steel |
| Dimensions | 400 mm × 300 mm × 60 mm |
| Net weight | 3.5–4.0 kg |
| Warranty | 18 months standard Schneider warranty |
| Certifications | CE, UL, CSA |
FAQ
What is the display size and resolution of HMIGTO5315?
It features a 15-inch TFT LCD with XGA resolution (1024 × 768 pixels) supporting 65,536 colors.
Which ports are available for connectivity?
Ethernet TCP/IP, RS232C, RS485, USB host, USB mini-B, and SD card slot.
Is this HMI suitable for harsh environments?
Yes, the front panel is IP65-rated, and the stainless steel frame ensures dust and water resistance.
Which software can configure the HMI?
It is compatible with Vijeo Designer and EcoStruxure Operator Terminal Expert software.
How long does the backup battery last?
The lithium battery provides ~100 days backup autonomy and has a lifespan of approximately 10 years.
