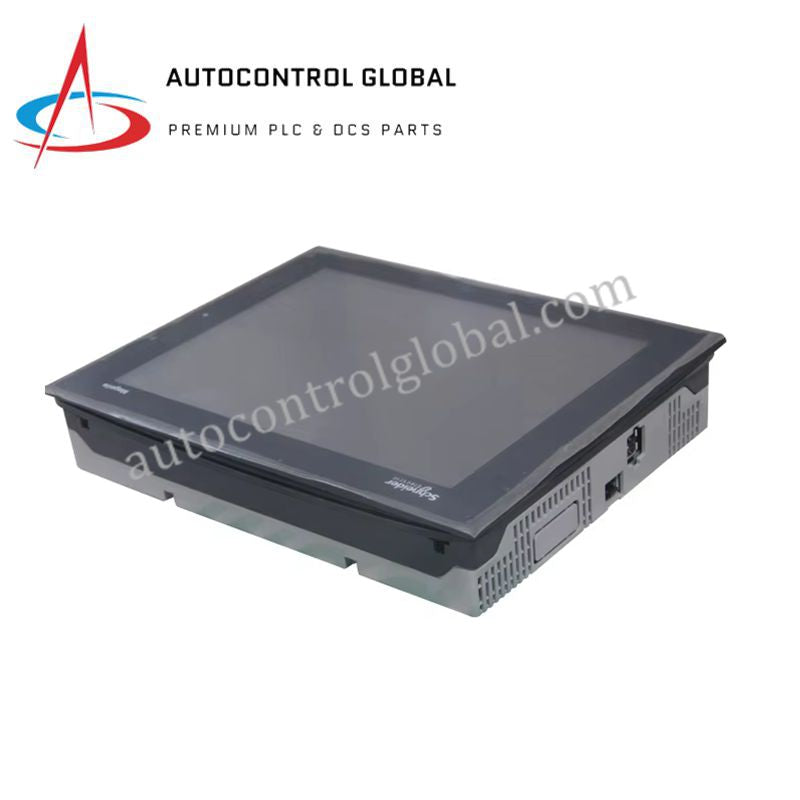

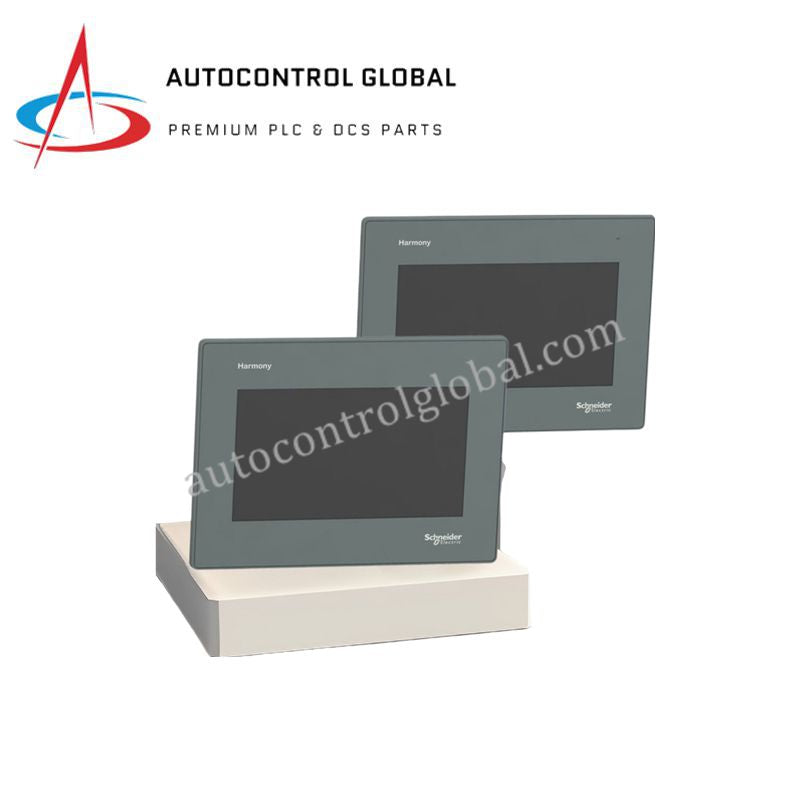

HMIGXU3512 HMI | Schneider Advanced Touchscreen Operator Panel
Manufacturer: Schneider
-
Part Number: HMIGXU3512
Condition：New with Original Package
Product Type: Advanced Touchscreen Operator Panel
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Schneider HMIGXU3512 is a 12.1-inch advanced touchscreen HMI panel from the Harmony GXU Magelis series. Its WXGA display (1280 × 800 pixels) with 16 million colors ensures precise visualization for industrial processes. Moreover, the IP65-rated front panel protects against dust and water, providing reliable operation in demanding environments.
This HMI features multiple communication interfaces, including dual Ethernet, USB host/device, RS232/RS485, and an SD card slot, enabling versatile connectivity. In addition, it is programmable using Schneider’s EcoStruxure Operator Terminal Expert software, allowing intuitive configuration of synoptic views, alarms, and data logging with minimal coding effort.
Technical Specifications
| Feature | Specification |
|---|---|
| Product type | Advanced touchscreen HMI panel |
| Display size | 12.1-inch TFT LCD |
| Resolution | 1280 × 800 pixels (WXGA) |
| Colors | 16 million colors |
| Backlight | LED backlight |
| Touch technology | Resistive touchscreen |
| Processor | ARM Cortex-A8 |
| Memory | 512 MB RAM, 4 GB Flash |
| Battery | Lithium backup, lifespan ~10 years |
| Power supply | 24 VDC external |
| Interfaces | 2 × Ethernet TCP/IP, 2 × USB host, 1 × USB device (mini-B), 1 × RS232/RS485, 1 × SD card slot |
| Status indicators | Multicolor LED for operating mode |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Relative humidity | 95% at 60 °C (non-condensing) |
| Protection rating | IP65 front panel |
| Enclosure material | PPT |
| Dimensions | 320 mm × 240 mm × 60 mm |
| Net weight | 2.5–3.0 kg |
| Certifications | CE, UL, CSA |
FAQ
What is the display size and resolution of HMIGXU3512?
It features a 12.1-inch TFT LCD with WXGA resolution (1280 × 800 pixels) supporting 16 million colors.
Which ports are available for connectivity?
Dual Ethernet, USB host/device, RS232/RS485, and an SD card slot.
Is this HMI suitable for harsh environments?
Yes, the front panel is IP65-rated and the PPT enclosure ensures dust and water resistance.
Which software can configure the HMI?
It is compatible with Schneider’s EcoStruxure Operator Terminal Expert software.
How long does the backup battery last?
The lithium battery ensures reliable data retention for up to 10 years.
