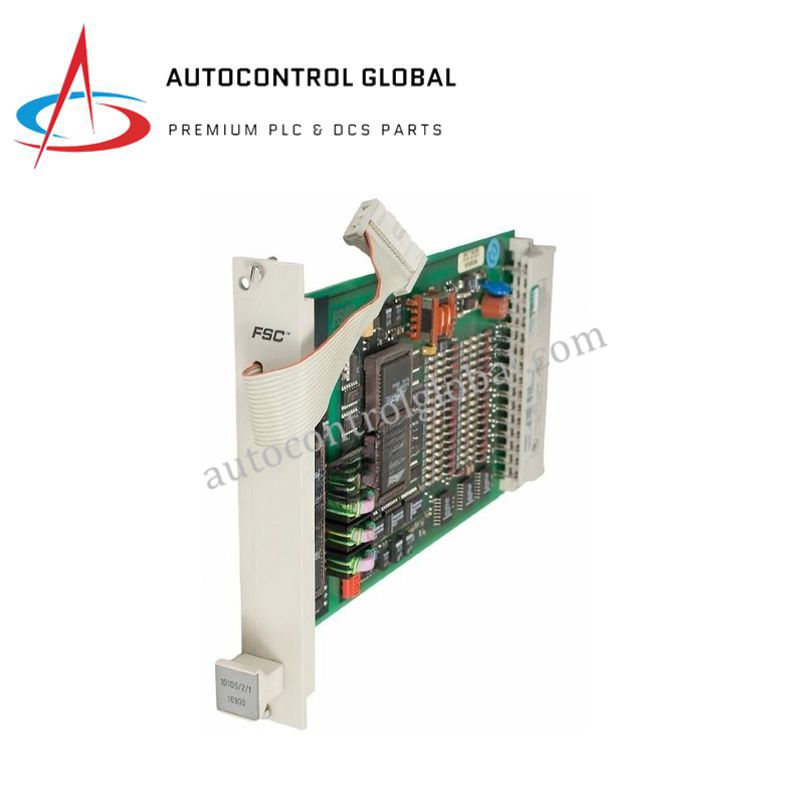

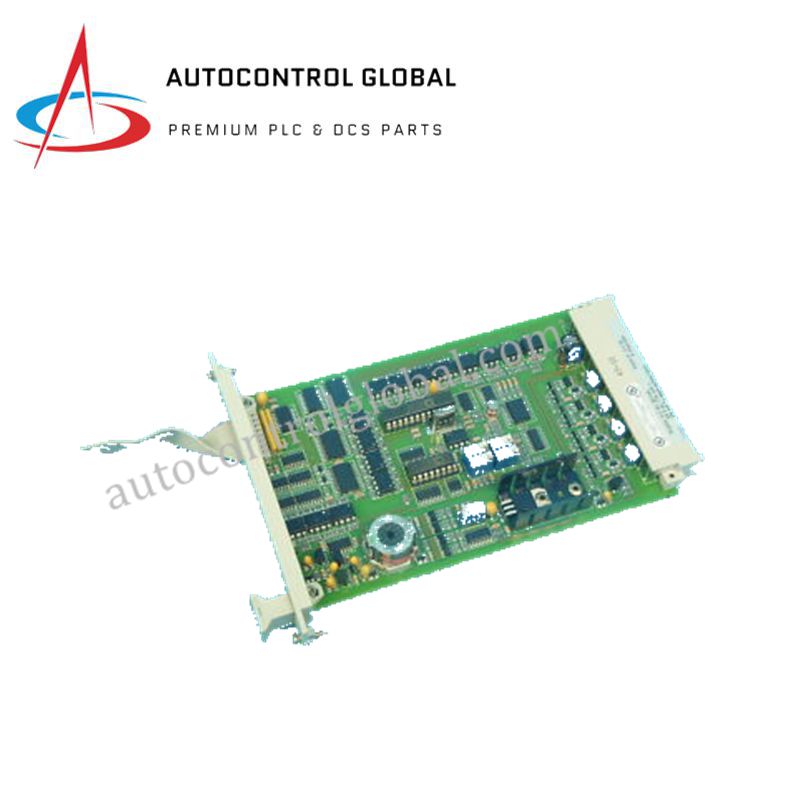

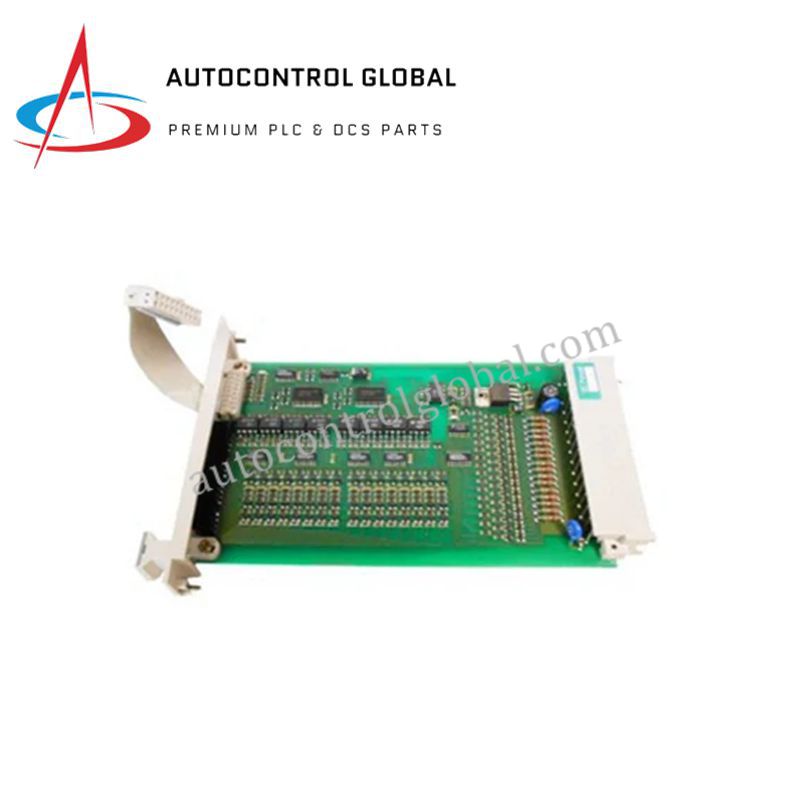

Honeywell 10102/2/1 – Fail-Safe Input Module for FSC Systems
Manufacturer: Honeywell
-
Part Number: 10102/2/1
Condition：New with Original Package
Product Type: Fail-Safe Input Module for FSC Systems
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell 10102/2/1 is a fail-safe analog input module designed for Honeywell FSC control systems. It provides four 0–2 V input channels, supporting active and passive transmitter connections with galvanic isolation from 24 Vdc and 5 Vdc supplies. The module ensures precise signal acquisition, onboard self-testing, and diagnostic monitoring. It is compatible with I/O rack backplanes and offers calibration via front-panel potentiometers or FSC system tools. Ideal for industrial applications, this module maintains reliability under harsh operating conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 10102/2/1 |
| Type | Fail-Safe Analog Input Module |
| Number of Channels | 4 analog input channels |
| Input Voltage Range | 0–2 Vdc |
| Input Resistance | > 100 kΩ |
| Loop Current Limit | ≥ 21 mA per channel (solid-state) |
| Transmitter Supply | 26 Vdc, short-circuit protected |
| Isolation | Analog inputs galvanically isolated from 24 Vdc and 5 Vdc |
| Self-Test & Diagnostics | Full module self-test including input filter, crosstalk, 26 V output, and supply monitoring |
| Mounting | Fits FSC I/O rack backplane (4 TE, 3 HE) |
| Calibration | Front-panel potentiometers and software-supported FSC calibration |
| Operating Temperature | Consult FSC system datasheet for industrial range |
| EMC/Variants | Suffix codes indicate improved EMC performance |
| Software Versions | 3.00 |
| Shipping Weight | 3 Kg |
| Category | PLCs / Machine Control |
| Subcategory | FSC Fail-Safe Analog Input |
FAQ
Q1: Is the Honeywell 10102/2/1 module original and new?
A1: Yes, this module is factory-sealed, 100% original Honeywell.
Q2: How quickly can the module be shipped?
A2: We ship within 3 days to 2 weeks depending on order size.
Q3: Can this module handle passive transmitters?
A3: Yes, it supports passive transmitter connections with external supply.
Q4: How many channels are included in the 10102/2/1?
A4: The module provides four 0–2 V analog input channels.
Q5: What protection and diagnostics does this module provide?
A5: It offers galvanic isolation, onboard self-test, input filter monitoring, and 26 V output monitoring.
