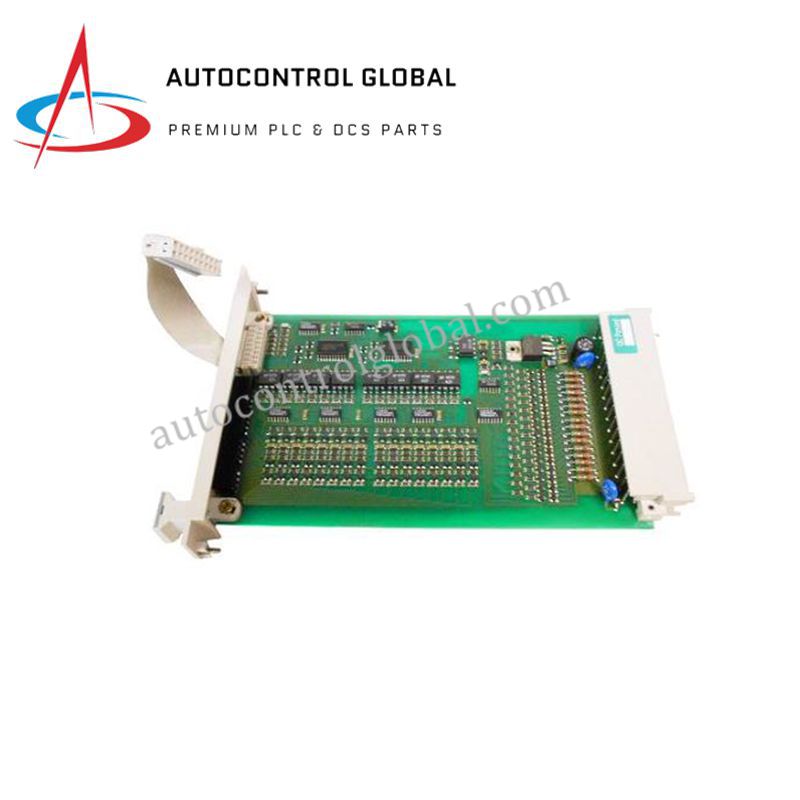

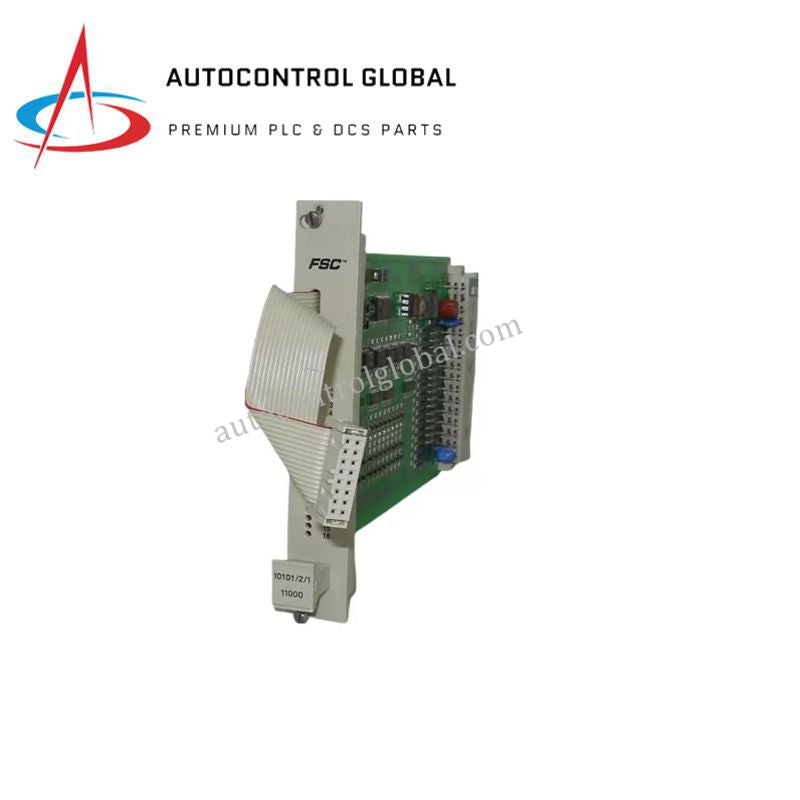

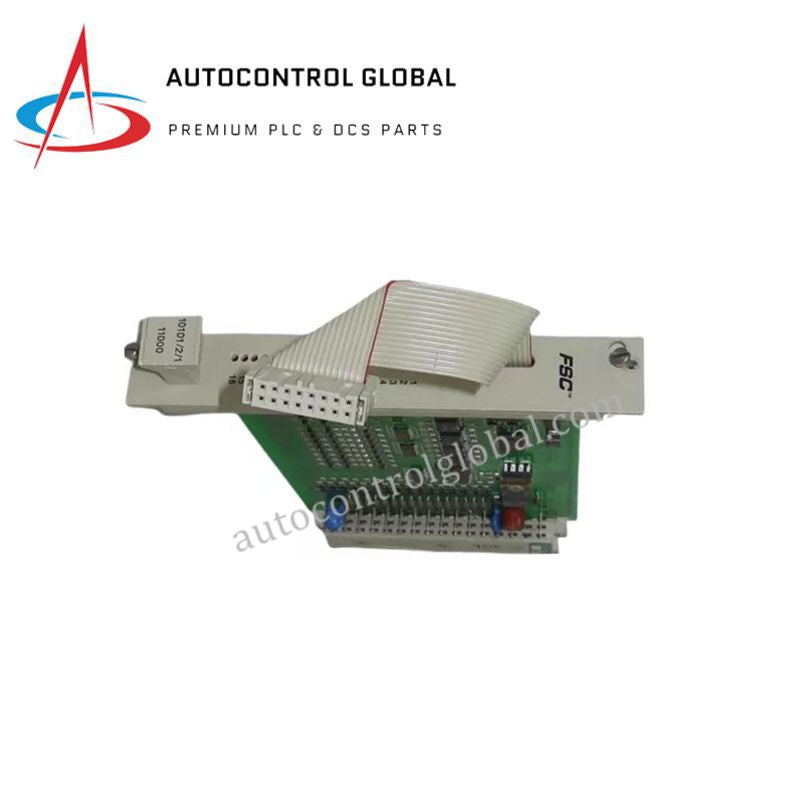

Honeywell 10209/2/1 | Industrial Digital Output Module for PLC
Manufacturer: Honeywell
-
Part Number: 10209/2/1
Condition：New with Original Package
Product Type: Industrial Digital Output Module for PLC
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The 10209/2/1 Digital Output Module is part of Honeywell’s TPS/TDC distributed control system platform. It is a rugged, industrial‑grade output interface that converts controller signals into field‑level switching outputs.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model Number | 10209/2/1 |
| Type | Digital Output Module |
| System Compatibility | Honeywell TPS / TDC Systems |
| Number of Channels | 16 discrete outputs |
| Output Voltage | 24 VDC |
| Output Current (per channel) | 0.5 A max |
| Load Types Supported | Solenoids, relays, indicator lamps, contactors |
| Isolation | Galvanic isolation between system and field |
| Dimensions (H × W × D) | 3 cm × 31.3 cm × 27.8 cm |
| Weight | 0.56 kg |
| Certifications | CE, TUV, UL508, CSA |
| Warranty | 12 months |
| Country of Origin | USA |
| Application Areas | Process automation, petrochemical, power generation, industrial manufacturing |
FAQ
Q1: How many output channels does the 10209/2/1 provide?
It offers 16 independent digital output channels for flexible industrial control.
Q2: What voltage does each channel operate at?
Each channel operates at 24 VDC with a maximum current of 0.1 A.
Q3: Is the module still supported despite being discontinued?
Yes, it includes a 2-year Radwell warranty for reliable operation.
Q4: What applications are suitable for this module?
It is ideal for PLC-based machine control, process monitoring, and low-power DC loads.
Q5: How compact is the module for integration?
The module has a compact form factor, allowing easy integration into PLC add-on boards.
