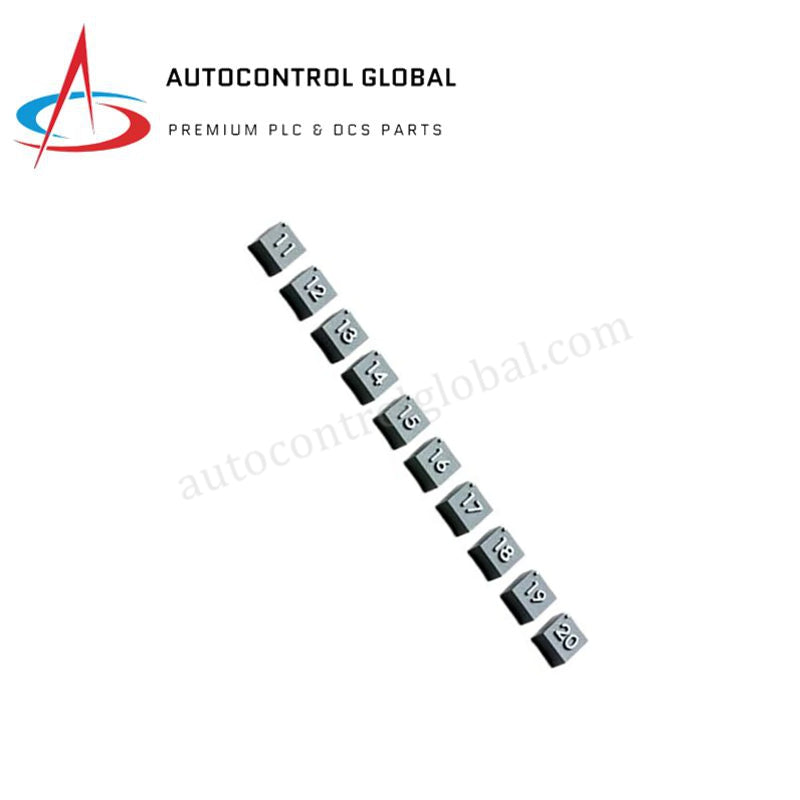

Honeywell 51153818-201 C300 Controller Configuration Jumper Kit
Manufacturer: HONEYWELL
-
Part Number: 51153818-201
Condition：New with Original Package
Product Type: DCS Accessories
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell 51153818-201 serves as the primary hardware configuration interface for the Experion PKS C300 controller environment. This factory-original jumper kit enables precise manual overriding and routing of electrical paths directly on the controller board or terminal blocks. Engineers utilize these jumpers to define communication protocols, establish power supply paths, and execute I/O channel mapping during critical system commissioning.
Condition: 100% Brand New, Original Honeywell Industrial Packaging.
Technical Specifications
| Feature | Specification Details |
| Model Number | 51153818-201 |
| Kit Contents | 10 Numbered Gray Jumpers |
| Compatibility | Honeywell C300 Controller & Associated IOTAs |
| Contact Material | High-Conductivity Metal Alloy |
| Housing Material | Heat-Resistant Industrial Thermoplastic |
| Color Coding | Industrial Gray (Numbered 1-10) |
| Connection Type | Direct Pin-to-Socket Insertion |
| Application | Protocol Selection, I/O Mapping, Power Routing |
Engineering Advantages
-
Eliminate Configuration Ambiguity: Each jumper features clear numerical marking. This eliminates identification errors during high-pressure field maintenance and ensures wiring documentation matches the physical hardware state.
-
Secure Conductivity: Honeywell utilizes industrial-grade conductive metal contacts that resist oxidation. These jumpers maintain low-impedance connections even in environments prone to vibration or thermal cycling, preventing intermittent signal loss in the DCS loop.
-
Rapid Hardware Personalization: The 51153818-201 allows immediate hardware-level changes to communication protocols without requiring deep software re-flashing. Engineers simply relocate a jumper to switch between specific redundancy or power modes.
-
Optimized Terminal Fit: The specialized plastic housing prevents accidental contact with adjacent pins. This "slim-profile" design facilitates installation in high-density C300 Input/Output Termination Assemblies (IOTAs) where space for manual manipulation is limited.
FAQs
Why does the 51153818-201 kit use numbered jumpers?
The numbering allows engineers to follow specific Honeywell schematics for the C300 controller. Since different jumpers control distinct functions (like power routing vs. signal isolation), the numbers ensure you place the correct jumper in the designated slot according to your P&ID or wiring diagram.
Can these jumpers be reused during system upgrades?
While the jumpers feature durable materials, we recommend using a brand new 51153818-201 kit during major system migrations. New jumpers ensure maximum contact tension and zero oxidation, which is critical for the long-term stability of a DCS environment.
Do I need specialized tools to install the 51153818-201 kit?
No. These jumpers utilize a standard friction-fit design for direct insertion. However, using a pair of non-conductive needle-nose pliers or a standard jumper extraction tool helps when working within crowded C300 terminal blocks to avoid disturbing adjacent wiring.
Is this kit compatible with older Honeywell TDC 3000 systems?
No. This specific kit targets the C300 series within the Experion PKS platform. Always verify your controller model number before installation to ensure the pin spacing and electrical ratings align.
