Honeywell 51304084-175 | MC-TPIX12 Pulse Input Termination Module
Manufacturer: Honeywell
-
Part Number: 51304084-175 MC-TPIX12
Condition：New with Original Package
Product Type: MC-TPIX12 Pulse Input Termination Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

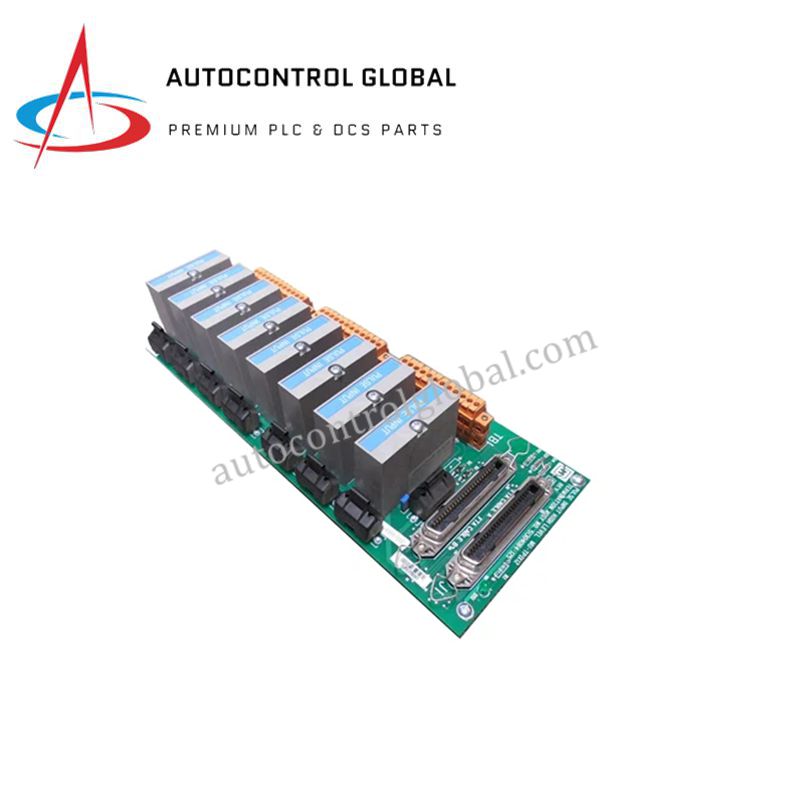

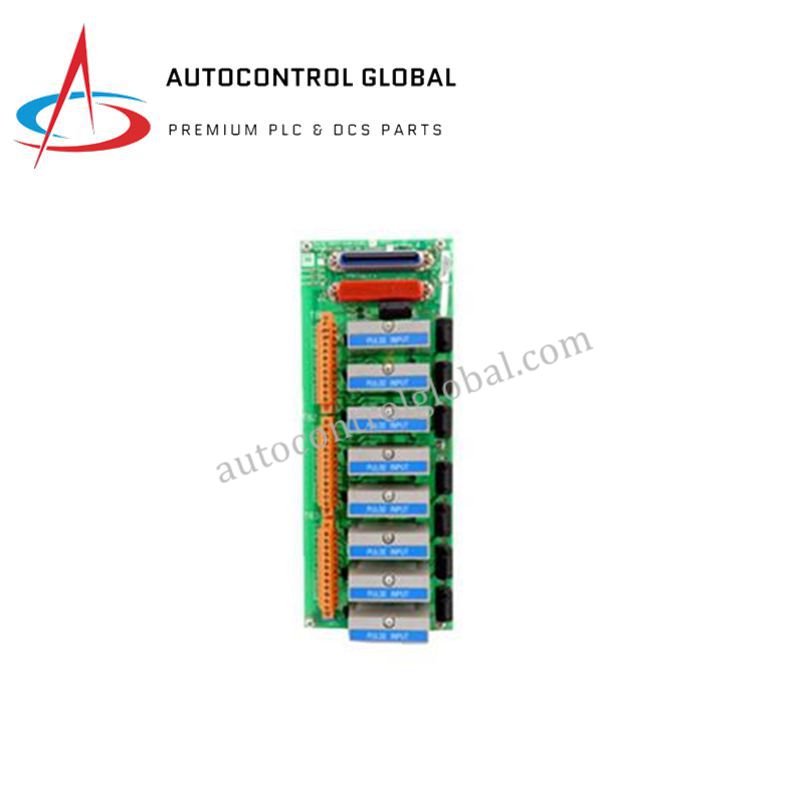

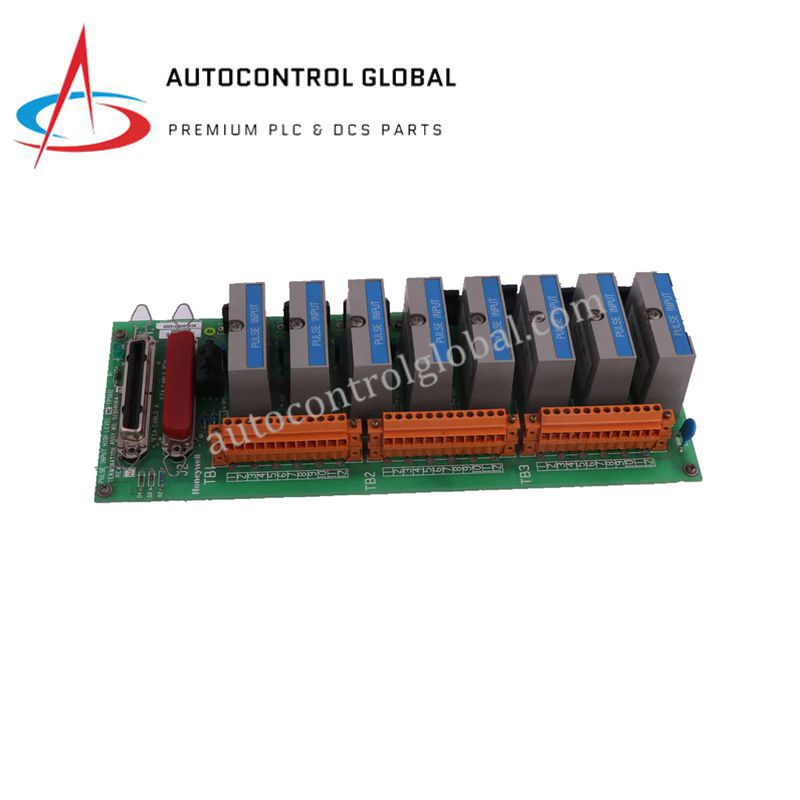

Honeywell 51304084-175 MC-TPIX12 Pulse Input Termination Module
The Honeywell 51304084-175 MC-TPIX12 is a Pulse Input Termination Module designed for precise data acquisition in industrial control systems. It integrates seamlessly with Honeywell Experion PKS and TDC 3000 platforms, making it ideal for mission-critical automation environments.
This module supports 12 independent pulse input channels, optimized for flow meters, counters, and encoders. It delivers fast signal capture, robust channel-to-channel isolation, and diagnostic monitoring, ensuring high reliability under demanding conditions. With its rugged design, the 51304084-175 enhances system performance in industries such as oil & gas, power generation, petrochemical, and manufacturing.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304084-175 |
| Module Code | MC-TPIX12 |
| Type | Pulse Input Termination Module |
| Manufacturer | Honeywell |
| Number of Channels | 12 pulse input channels |
| Input Signal Type | Digital pulse (typically 24 VDC) |
| Input Voltage Range | 15–30 VDC |
| Input Frequency Range | Up to several kHz (varies by configuration) |
| Input Impedance | Optimized for pulse signal integrity |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Built-in fault detection and signal monitoring |
| Mounting Type | Rack-mounted in Honeywell I/O chassis |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, RoHS compliant |
FAQ
Q1: Is the Honeywell 51304084-175 MC-TPIX12 available from stock?
A1: Yes, we provide brand new and original Honeywell modules. Delivery time is typically 3–14 days, depending on order size.
Q2: How many channels does this module support?
A2: The MC-TPIX12 provides 12 independent pulse input channels.
Q3: What signal type is compatible with this module?
A3: It accepts digital pulse signals (typically 24 VDC) from flow meters, encoders, and counters.
Q4: Does it feature electrical isolation?
A4: Yes, the module offers channel-to-channel and channel-to-ground isolation for signal integrity.
Q5: Can the module operate in harsh environments?
A5: Yes, it works reliably between –20°C and +60°C with up to 95% RH non-condensing humidity.
Q6: What certifications does the 51304084-175 carry?
A6: It is CE, UL, and RoHS compliant, ensuring global industrial standards compliance.
