Honeywell 51304511-200 | High-Performance Network Interface
Manufacturer: Honeywell
-
Part Number: 51304511-200
Condition：New with Original Package
Product Type: High-Performance Network Interface
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

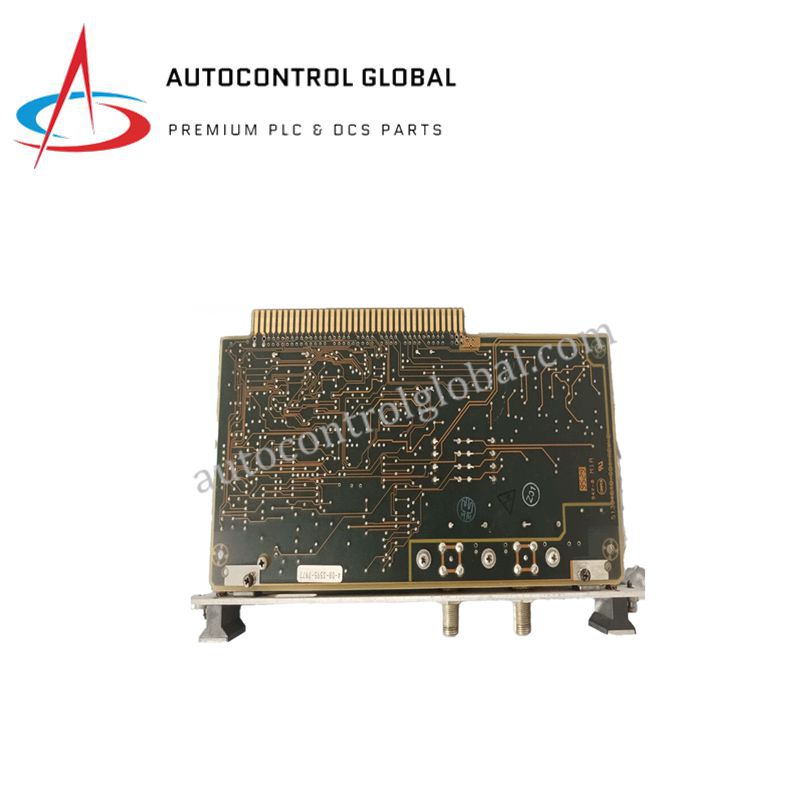

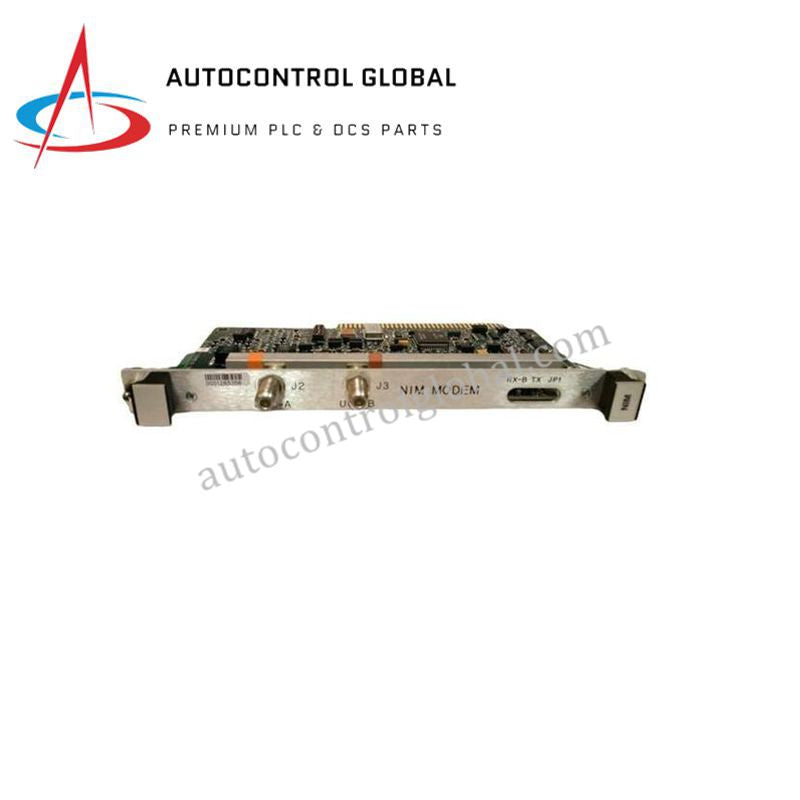

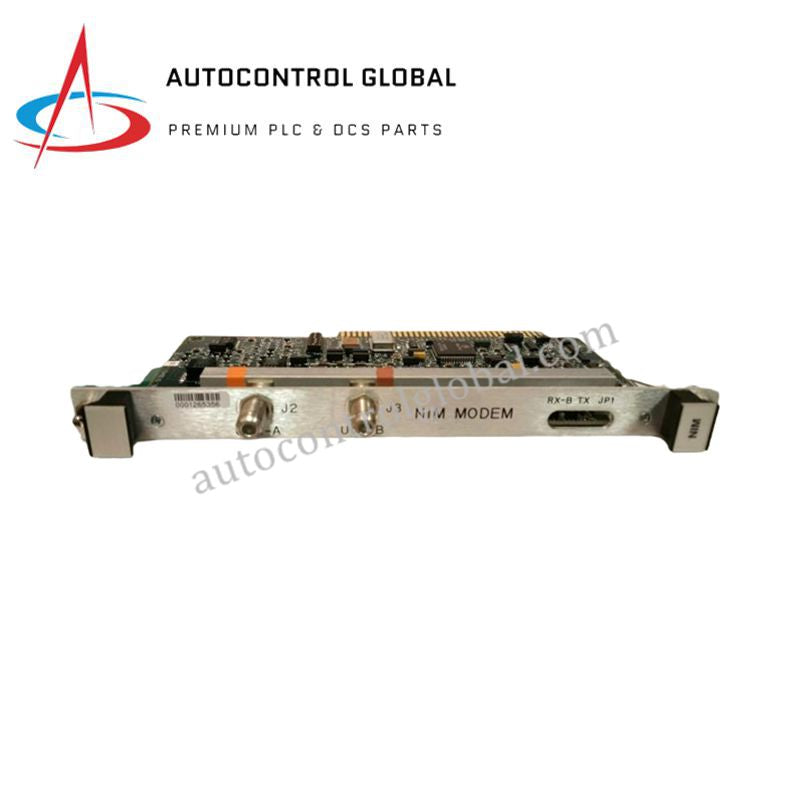

The HONEYWELL 51304511-200, also known as the NIM Modem, is a high-performance Analog Input Module for Honeywell’s TDC 3000 and Experion PKS distributed control systems. It acts as a vital interface between field-level devices such as transmitters and sensors and the central control system, ensuring reliable and accurate data acquisition.
This module enables communication through the Universal Control Network (UCN), supporting up to 32 digital output channels with an output voltage range of 0–30 VDC and a maximum current of 0.5 A per channel. The robust design accommodates industrial environments with an operating temperature range of −40°C to +70°C.
Built for efficiency, the 51304511-200 filters electrical noise, conditions analog signals, and converts them into digital data for processing. It mounts securely on the TDC 3000 backplane, offering reliable connectivity and simple integration into existing systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304511-200 |
| Alternate Name | NIM Modem |
| Type | Analog Input / Network Interface Module |
| Channels | 32 digital output channels |
| Output Voltage Range | 0–30 VDC |
| Maximum Current | 0.5 A per channel |
| Input Voltage Range | 12–24 VDC |
| Power Consumption | 4.5 W |
| Signal Types Supported | Analog signals from temperature, pressure, and flow sensors; voltage and current inputs |
| Signal Conditioning | Filters noise and converts analog to digital signals |
| Interface / Bus | TDC 3000 backplane |
| Mounting Style | Backplane-mounted |
| Dimensions | 155 mm × 95 mm × 75 mm |
| Weight | 0.4 kg |
| Operating Temperature | −10°C to +60°C |
| Compliance | CE, UL, RoHS certified |
| Protocols Supported | Honeywell proprietary, Modbus, Ethernet/IP |
FAQ
Q1: What is the primary function of the 51304511-200?
A1: It serves as a NIM Modem, facilitating UCN network communication for TDC 3000 systems.
Q2: How many channels does this module support?
A2: The 51304511-200 supports 32 digital output channels for versatile industrial applications.
Q3: Which input signals are compatible with this module?
A3: It supports analog signals from sensors, voltage/current inputs, and field instruments.
Q4: What is the operating temperature range?
A4: The module operates reliably between −40°C to +70°C, suitable for industrial environments.
Q5: Can it integrate with existing Honeywell systems?
A5: Yes, it mounts on the TDC 3000 backplane and is compatible with Experion PKS systems.
Q6: What are the shipping and warranty policies?
A6: All units are brand-new original, in-stock, shipped within 3–14 days via common carriers like DHL, with a 30-day return policy for quality issues.
