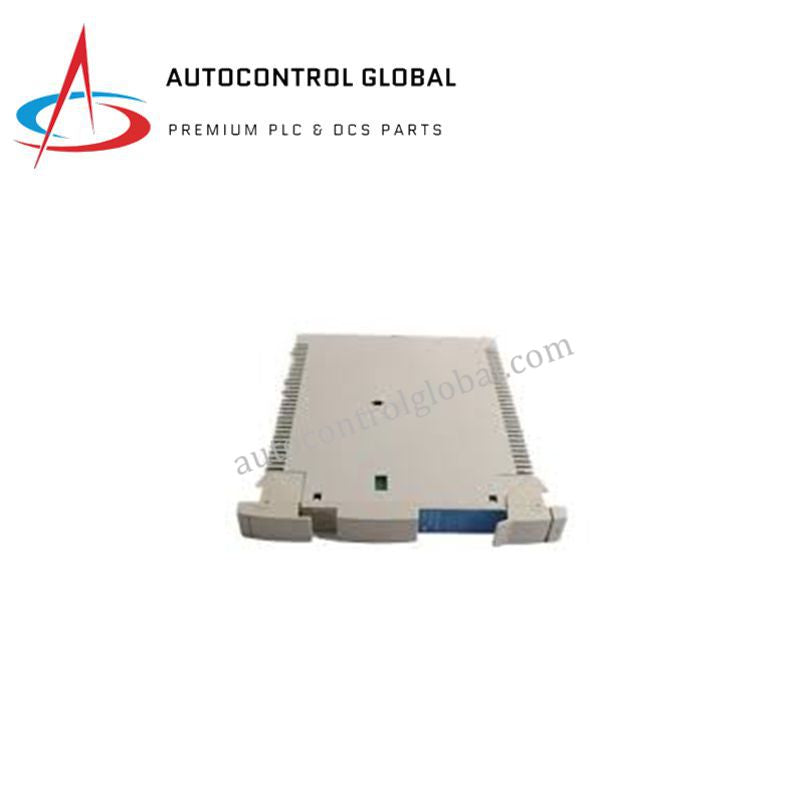

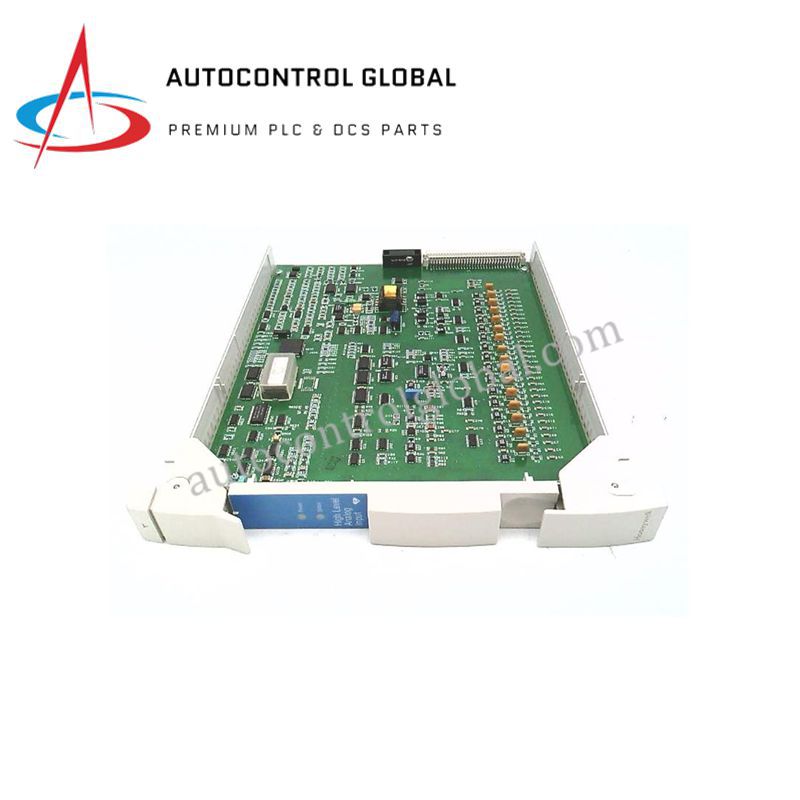

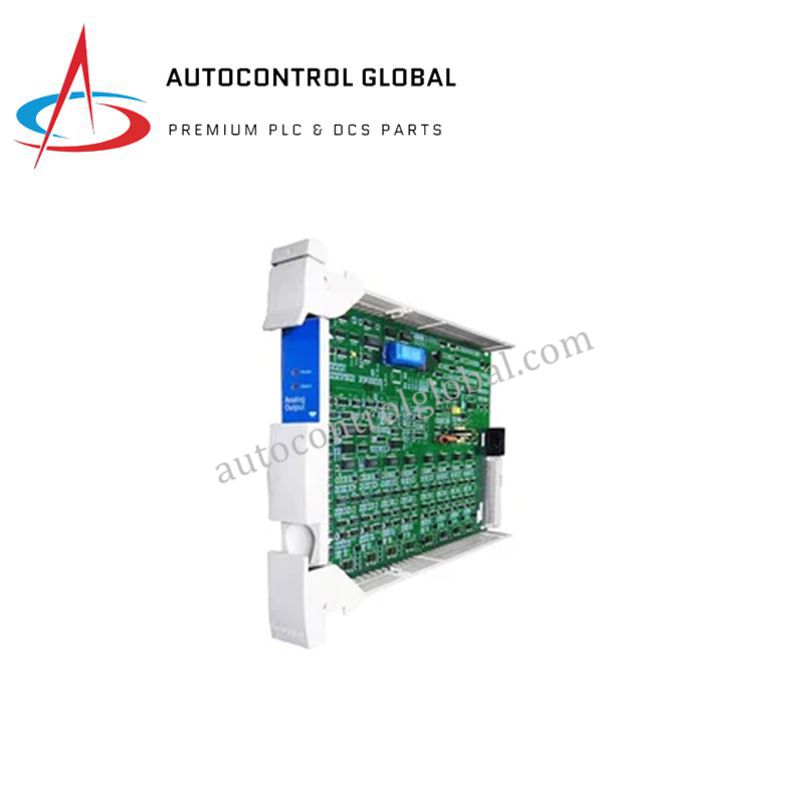

Honeywell 51304754-150 | High-Density Output PC Board
Manufacturer: Honeywell
-
Part Number: 51304754-150
Condition：New with Original Package
Product Type: High-Density Output PC Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 51304754-150, also known as MC-TDODD32, is a high-density Digital Output Module for Honeywell TDC 3000 and Experion PKS distributed control systems. It provides 32 independent discrete outputs, making it ideal for industrial applications controlling relays, solenoids, alarms, and contactors.
This module features solid-state transistor outputs with channel-to-channel and channel-to-system isolation, ensuring reliable operation and fault containment. The built-in diagnostics and LED indicators allow real-time monitoring of module health and output activity.
The 51304754-150 is conformally coated for superior resistance to moisture, dust, and corrosive environments. Installation is straightforward using plug-in connectors compatible with Honeywell I/O chassis and standard field termination assemblies.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304754-150 |
| Alternate Part Number | MC-TDODD32 |
| Type | Digital Output Module |
| Channels | 32 discrete outputs |
| Output Voltage | 24 VDC nominal |
| Output Type | Solid-state transistor outputs |
| Channel Isolation | Channel-to-channel and channel-to-system |
| Diagnostics | Built-in fault detection, LED indicators for module and channel status |
| Protection Features | Overload, short-circuit, and reverse polarity protection |
| Mounting | Plug-in module for Honeywell I/O chassis |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Conformal Coating | Yes, for moisture, dust, and corrosion protection |
| Compliance | CE marked, meets industrial EMC and safety standards |
| Weight | 1.32 lbs |
FAQ
Q1: How many output channels does the 51304754-150 provide?
A1: It provides 32 discrete output channels for controlling field devices.
Q2: What type of outputs does this module use?
A2: Uses solid-state transistor outputs for reliable switching.
Q3: Is it suitable for harsh industrial environments?
A3: Yes, it has conformal coating for protection against moisture, dust, and corrosion.
Q4: Can the module be easily installed?
A4: Yes, it uses plug-in connectors compatible with Honeywell I/O chassis and standard termination assemblies.
Q5: What diagnostics are included?
A5: Includes built-in fault detection and LED indicators for module and channel status.
Q6: What is the warranty and shipping policy?
A6: Fully original factory module, in-stock, ships in 3–14 days, with 30-day return support for quality issues.
