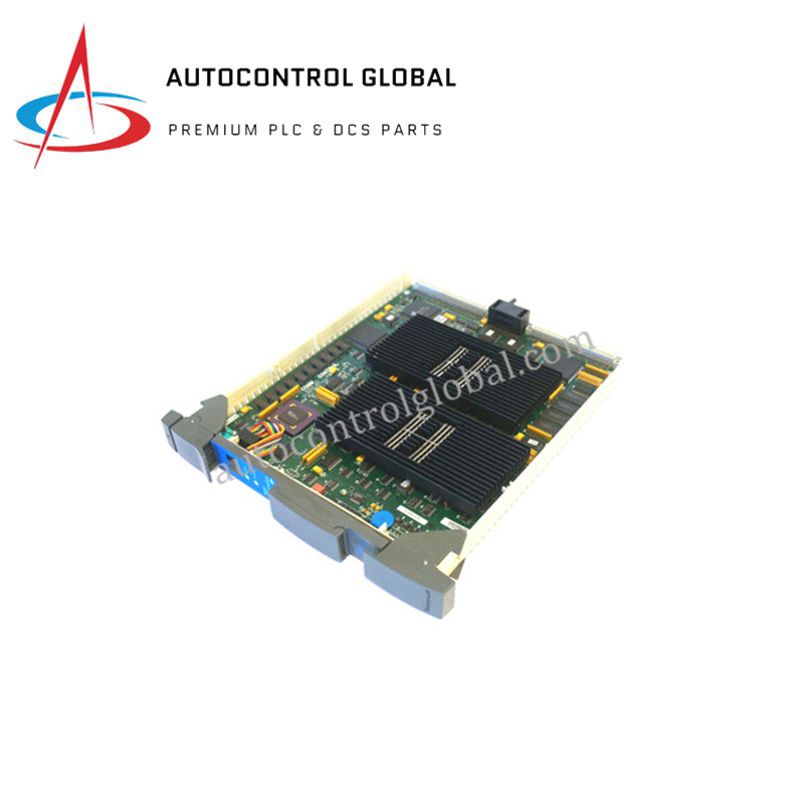

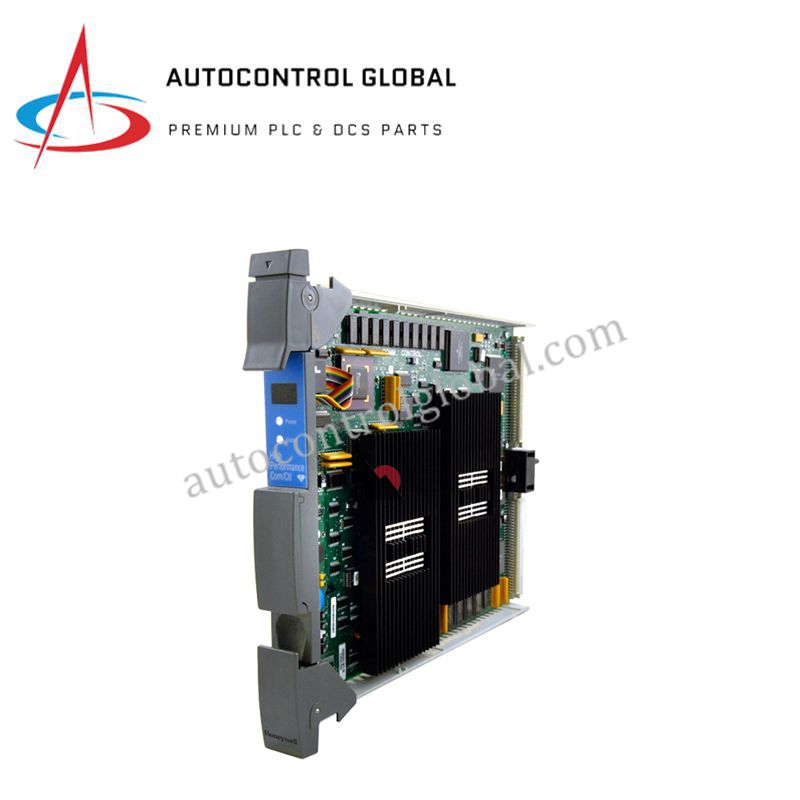

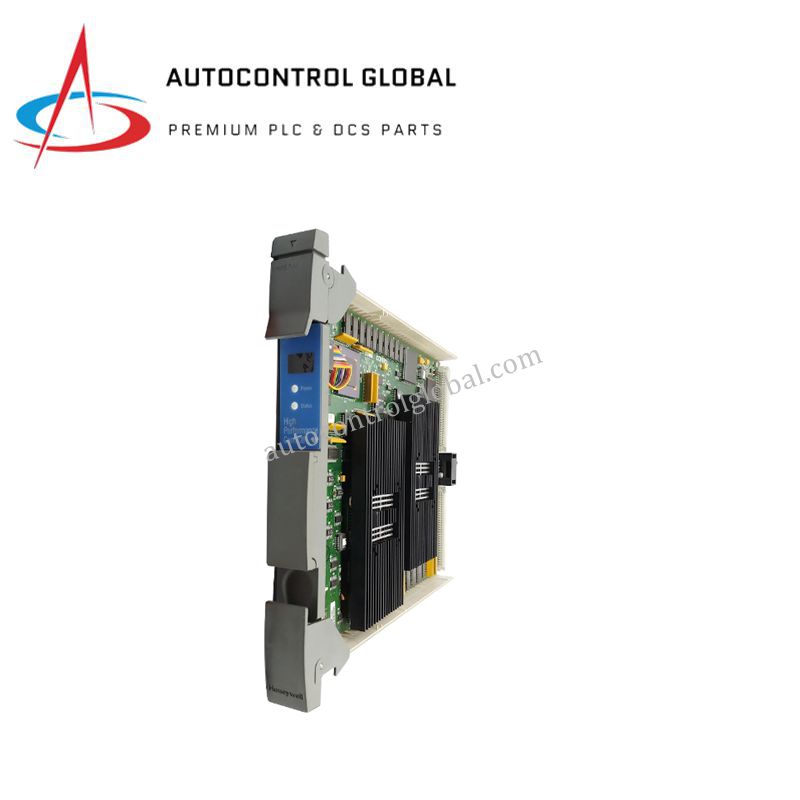

Honeywell 51401635-150 | HPM Communication Controller
Manufacturer: Honeywell
-
Part Number: 51401635-150
Condition：New with Original Package
Product Type: HPM Communication Controller
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 51401635-150 is a high-performance HPM Communication and Control Processor (HPMM) card set. It executes regulatory and logic functions, manages network communications, time-stamping, and hosts user programs for Honeywell HPM/UCN process control systems. Built for industrial reliability, it integrates diagnostics, status indicators, and interfaces with high-performance I/O link cards. The module mounts in HPM chassis using keyed connectors and retention hardware, ensuring secure installation and robust operation in industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 51401635-150 |
| Type | High-Performance Communication & Control Processor (HPMM) |
| Primary Functions | Executes regulatory, logic, sequence functions; network access; time-stamping; hosts user programs |
| Network | UCN token-bus network (5 Mbit/s carrier band) |
| Card Arrangement | Occupies two left-most HPM card slots; UCN Interface module mounts beneath Comm/Control card |
| Front Indicators | Power LED (+24 Vdc presence), Status LED for self-test completion |
| Link Indicators | UCN cable Rx-A/Rx-B, UCN A/B indicators under front cover |
| Power Supply | +24 Vdc cabinet power; local +5 V generation on card |
| I/O Support | Works with high-performance I/O link cards (e.g., 51309276 series) |
| Diagnostics | Internal self-tests; Status LED indicates no test failures; card and link diagnostics integrated |
| Mounting | Plug-in HPM card format; keyed connectors and retention hardware |
| Environment & Compliance | Certified for HPM system use; consult manuals for EMC, environmental, and system-level certification data |
| Weight | 0.77 lbs |
| Applications | Networked PLC communications, process control, high-speed logic execution, HPM/UCN system integration |
FAQ
Q1: Is the 51401635-150 module new and original?
A1: Yes, the Honeywell 51401635-150 is full OEM, brand-new, and original.
Q2: How quickly can it be shipped?
A2: Shipping is usually within 3 days to 2 weeks, depending on order size and logistics.
Q3: What network does this module support?
A3: It interfaces with the Honeywell Universal Control Network (UCN) token-bus at 5 Mbit/s.
Q4: Does it provide diagnostics?
A4: Yes, it has built-in self-tests, power/status LEDs, and link diagnostics for fault detection.
Q5: Where is it mounted?
A5: It plugs into designated HPMM card slots in Honeywell HPM chassis using keyed connectors.
