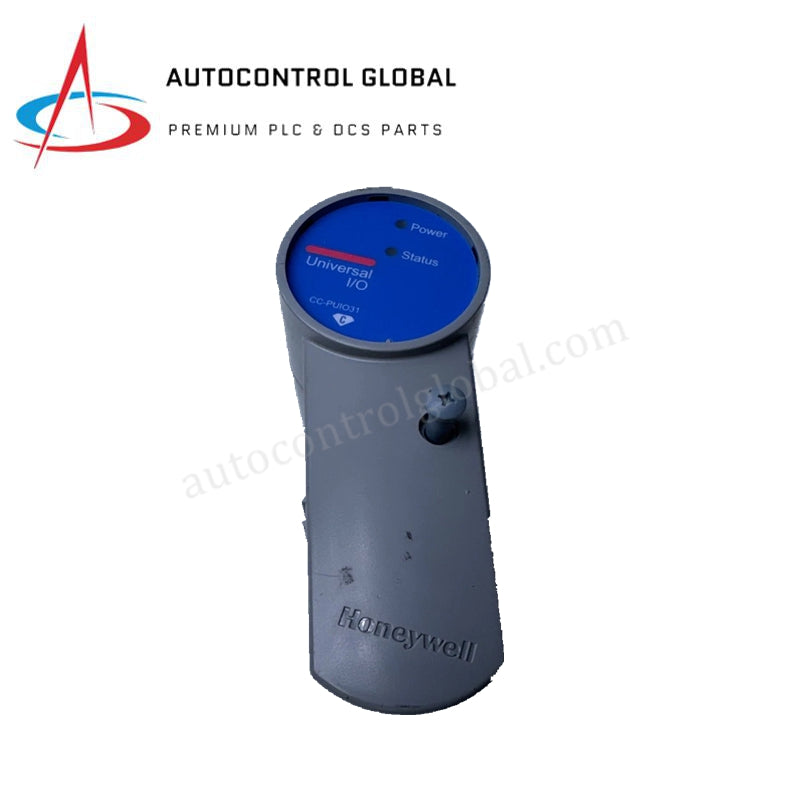

Honeywell 51454205-175 UIO Module Experion PKS Original

Product Overview

The Honeywell CC-PUIO01 (Part Number: 51454205-175) represents the next generation of software-defined hardware for the Experion PKS Series C system. This Universal Input/Output (UIO) module features 32 individually configurable channels, allowing each port to function as an Analog Input, Analog Output, Digital Input, or Digital Output. By consolidating four distinct I/O types into a single card, the CC-PUIO01 eliminates the need for specialized hardware inventory and simplifies complex project engineering. We supply this unit as 100% Brand New and Original to ensure maximum flexibility for your control system architecture.

Technical Specifications

The CC-PUIO01 provides high-density signal processing and integrated digital communication within a standard Series C form factor.

Engineering Advantages

• Software-Defined Versatility: Engineers configure each channel type via the Experion Configuration Studio. This capability allows for late-stage design changes without the cost of rewiring or purchasing new hardware modules.

• Streamlined Spare Parts Management: Because the CC-PUIO01 handles any signal type, plants can reduce their spare part inventory significantly. One UIO module replaces the need to stock separate AI, AO, DI, and DO cards.

• Integrated HART Intelligence: The module supports HART pass-through for all analog-configured channels. This enables the retrieval of secondary variables and deep device diagnostics from smart field instruments directly into the Experion environment.

• Simplified Engineering & FEED: The universal nature of the 51454205-175 reduces Front-End Engineering Design (FEED) errors. You no longer need to finalize specific I/O counts before ordering hardware, which accelerates commissioning timelines.

• Advanced Fault Detection: The module monitors each of the 32 channels for open circuits and short circuits in real-time. It provides immediate feedback to the operator station, allowing for rapid troubleshooting of field-side wiring issues.

• Industrial-Grade Reliability: Designed for mission-critical environments, the module features a wide operating temperature range and protective coating, ensuring stable operation from –40°C to +70°C.

FAQs

1. How do I change a channel from Digital Input to Analog Output?

You perform all channel assignments through the Honeywell Experion Configuration Studio software. Once you update the configuration and download it to the controller, the CC-PUIO01 internally reassigns the electronic circuitry for that specific channel without requiring physical jumpers or wiring changes.

2. Does the CC-PUIO01 support redundancy for high-availability loops?

Yes. The module supports redundant operation when installed in a redundant Series C/Series 8 chassis. The system facilitates a bumpless switchover between primary and secondary modules to ensure continuous process control.

3. Is there a limitation on how many HART devices I can connect?

Each of the 32 channels supports HART communication if configured as an Analog signal type. This allows you to integrate a high density of smart field devices into a single I/O footprint.

4. Can this module be used as a Power Interface Unit (PIU)?

While some documentation groups Universal I/O with power distribution roles in the chassis, the CC-PUIO01 primarily functions as a signal interface. It receives regulated 24VDC power from the chassis backplane and distributes it to the field devices according to the configured channel type.
