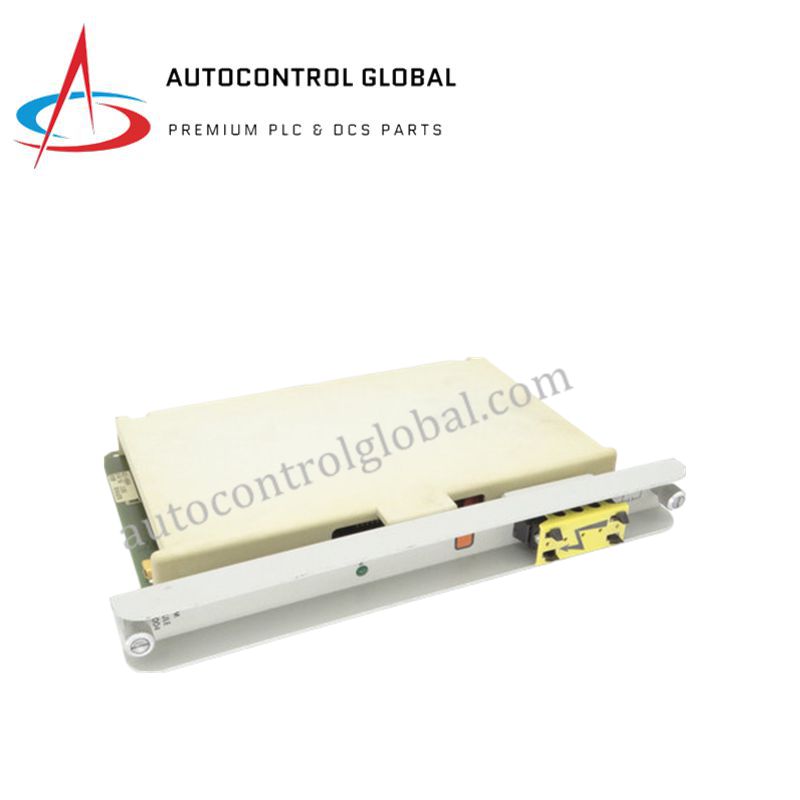

Honeywell 621-0004 System Diagnostic Module for IPC 620/621

Product Overview

The Honeywell 621-0004 serves as the primary safety sentinel for Honeywell IPC 620 and IPC 621 programmable controller environments. Functioning as a high-speed hardware Watchdog Timer (WDT), this System Diagnostic Module (SDM) continuously audits the integrity of control and data lines across the PLC backplane. If the module detects a CPU hang, communication failure, or logic fault, the integrated safety relay de-energizes instantly. This action severs power to the output modules, forcing the process into a known safe state. We provide this module as 100% Brand New and Original, ensuring critical fail-safe protection for your high-value industrial assets.

Technical Specifications

The 621-0004 utilizes millisecond-level response logic to mitigate industrial risks:

Engineering Advantages

The 621-0004 resolves critical safety and uptime challenges in complex automation architectures:

• Process Integrity Protection: By monitoring the "pulse" of the PLC, the 621-0004 prevents uncontrolled machine movements. In the event of a processor crash, it overrides software commands to shut down outputs, preventing equipment damage and material waste.

• Rapid Fault Isolation: The module executes shutdown commands in milliseconds. This speed proves essential in high-speed manufacturing or chemical processing where even a few seconds of unmonitored operation could lead to catastrophic failure.

• Hardware-Level Reliability: Unlike software watchdogs that may fail alongside the OS, the 621-0004 operates as an independent hardware layer. It remains functional even if the main control logic becomes unresponsive.

• Ruggedized for Harsh Zones: Designed for the factory floor, the module features high-tolerance components that resist EMI (Electromagnetic Interference) and significant mechanical vibration, ensuring that "nuisance trips" do not disrupt production.

FAQs

Can I operate an IPC 621 system without the 621-0004 module?

While the PLC may physically run, omitting the 621-0004 removes the primary fail-safe watchdog. For any mission-critical application or process involving human interaction with machinery, we strongly recommend installing a brand-new 621-0004 to meet safety compliance standards.

How do I reset the module after a fault is detected?

Once the 621-0004 detects a fault and de-energizes the outputs, you must resolve the underlying system error (e.g., clearing a CPU fault or fixing a bus communication error) and cycle system power or issue a software reset, depending on your specific IPC configuration.

Does this module require external wiring for the watchdog relay?

The watchdog relay typically interfaces with the output power distribution bus within the IPC rack. Consult your system wiring diagram to ensure the relay contacts properly interrupt the "Master Control Relay" (MCR) circuit or the output module power feed.

What is the shelf-life or condition of this 621-0004 unit?

This unit is 100% Brand New. Unlike surplus or refurbished modules which may have degraded relay contacts or aged capacitors, our new units guarantee full mechanical and electrical life cycles, which is non-negotiable for safety-critical hardware.
