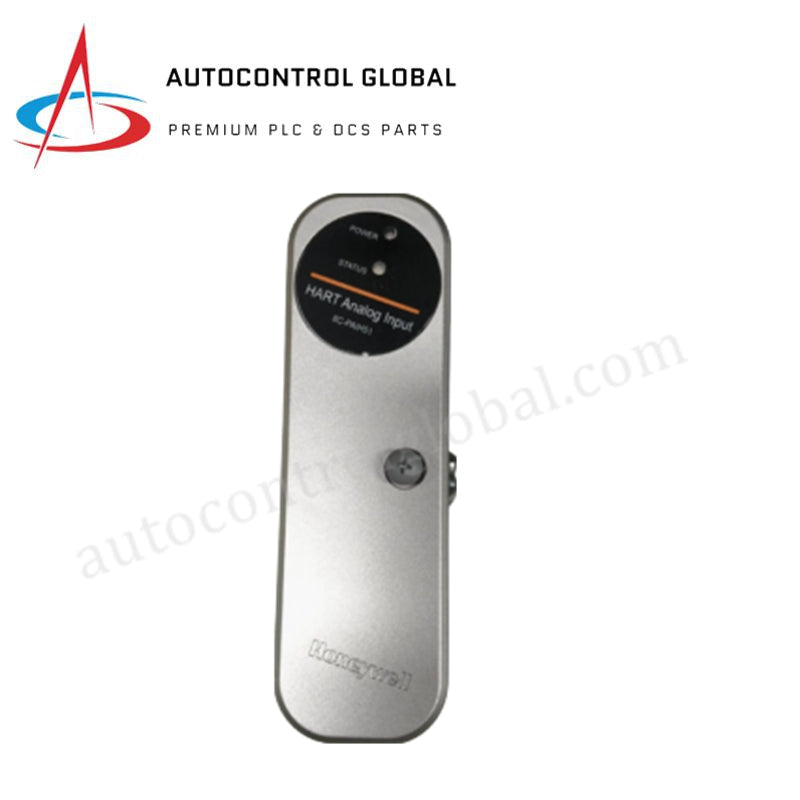

Honeywell 8C-PAIH51 51454352-175 Experion Series 8 Analog Input Module

Product Description

The 8C-PAIH51 (51454352-175) is a high-density analog input module belonging to Honeywell’s Series 8 I/O family, engineered specifically for the Experion Process Knowledge System (PKS). Designed to interface with the C300 controller platform, this module provides 16 differential channels for the precise acquisition of 4–20 mA current signals from field transmitters, pressure sensors, and flow meters.

As a critical component of a Distributed Control System (DCS), the 8C-PAIH51 (51454352-175) features an advanced 16-bit Sigma-Delta analog-to-digital converter to ensure high-fidelity signal reproduction for process control loops. The module is built with an industrial-hardened design, including G3 conformal coating as standard, making it suitable for deployment in corrosive or harsh environments such as chemical refineries and offshore platforms. Its integration into Honeywell’s Fault Tolerant Ethernet (FTE) architecture allows for seamless redundancy and high system availability.

Detailed Technical Specifications

The following technical parameters outline the performance and environmental limits of the 8C-PAIH51:

• Manufacturer: Honeywell

• Model Number: 8C-PAIH51

• Part Number: 51454352-175

• Product Series: Series 8 I/O

• System Compatibility: Experion PKS (C300 Controller)

• Number of Channels: 16 Differential Analog Inputs

• Input Signal Range: 4–20 mA (Standard); 1–5 V DC (Configurable)

• A/D Resolution: 16-bit

• Conversion Type: Sigma-Delta

• Accuracy: ±0.1% of Full Scale at 25°C

• Input Impedance: 250 Ω (for 4–20 mA current loop)

• Galvanic Isolation: System-to-Field and Channel-to-Channel isolation

• Redundancy Support: Supports redundant pairs via specific IOTA configurations

• Operating Voltage: 24 V DC (via I/O Processor)

• Dimensions: 15.7 cm x 14.4 cm x 6.1 cm (Module only: 12.7 x 10.2 x 2.5 cm)

• Weight: 0.3 kg

• Country of Origin: USA
