Honeywell 900B01-0001 | 24VDC Analog Output for HC900
Manufacturer: Honeywell
-
Part Number: 900B01-0001
Condition：New with Original Package
Product Type: 24VDC Analog Output for HC900
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

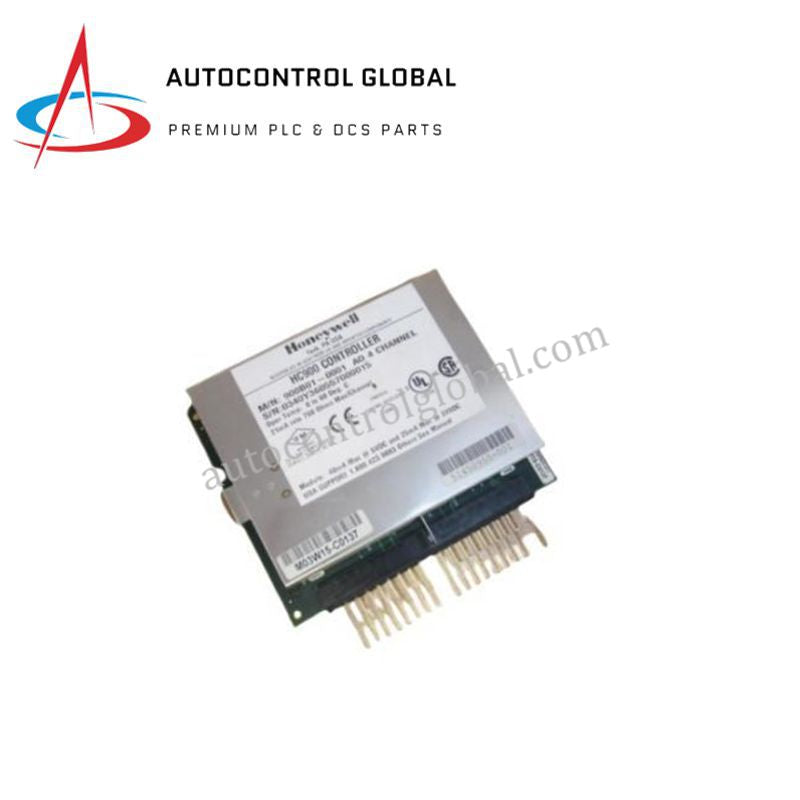

The HONEYWELL 900B01-0001 is a 4-channel analog output module designed for the Honeywell ControlEdge HC900 and 900-series controller systems. It delivers precise current outputs for actuators, valves, and drives with high reliability. Each channel supports configurable ranges of 0–20 mA or 4–20 mA, enabling flexible integration into process automation systems. With built-in diagnostics, rugged construction, and compliance with Honeywell industrial EMC standards, the 900B01-0001 ensures stable and accurate operation in demanding environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 900B01-0001 |
| Type | Analog output module |
| Channels | 4 independent output channels |
| Output Range | Configurable 0–20 mA or 4–20 mA |
| Load Capacity | Up to 750 ohms per channel |
| Current Rating | 21/40 mA output capability |
| Resolution / Accuracy | 0.1% of full scale (typical vendor data) |
| Additional Modes | Supports PWM-type output for certain tasks |
| Power Supply | 24 VDC via HC900/900-series backplane |
| Mounting | Plug-in for Honeywell HC900 / 900-series racks |
| Operating Temperature | 0 °C to 60 °C (operation), −40 °C to 70 °C (storage) |
| Weight | 0.75 lbs |
| Environmental | EMC-compliant, conformal coating for harsh conditions |
| Applications | Drives, valves, actuators, and industrial process control |
FAQ
Q1: Is the 900B01-0001 new and original?
A1: Yes, it is a factory-original Honeywell module, brand-new, and genuine.
Q2: How fast can the 900B01-0001 be shipped?
A2: We ship within 3 days to 2 weeks depending on order volume and logistics.
Q3: What delivery options are available?
A3: Common couriers include DHL, FedEx, and other trusted logistics providers.
Q4: What is the maximum load supported per channel?
A4: Each output channel supports up to 750 ohms of load resistance.
Q5: Can the 900B01-0001 operate in harsh conditions?
A5: Yes, it complies with Honeywell industrial EMC standards and features conformal coating for protection.
