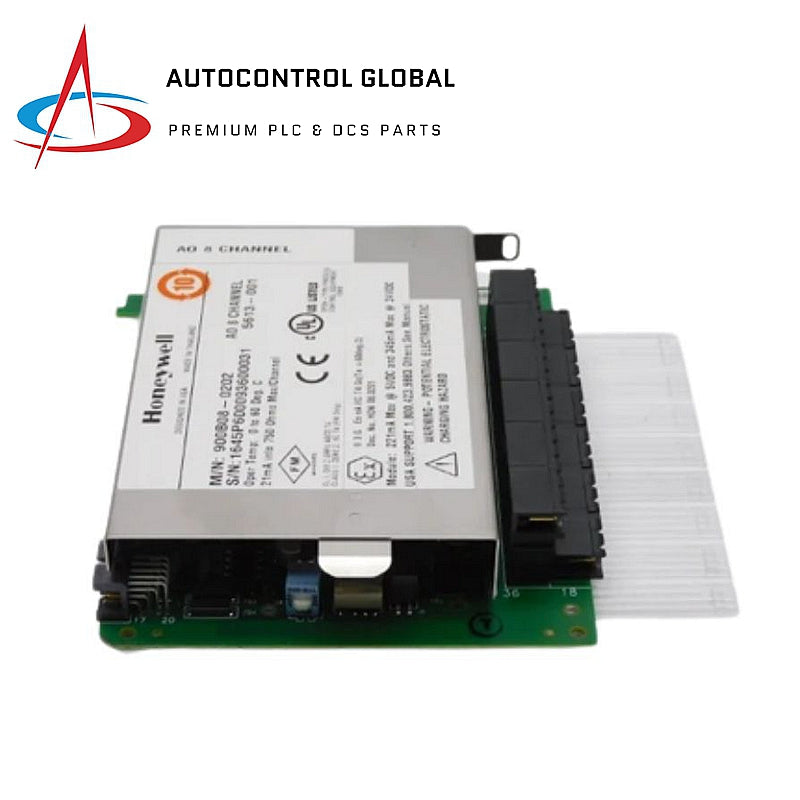

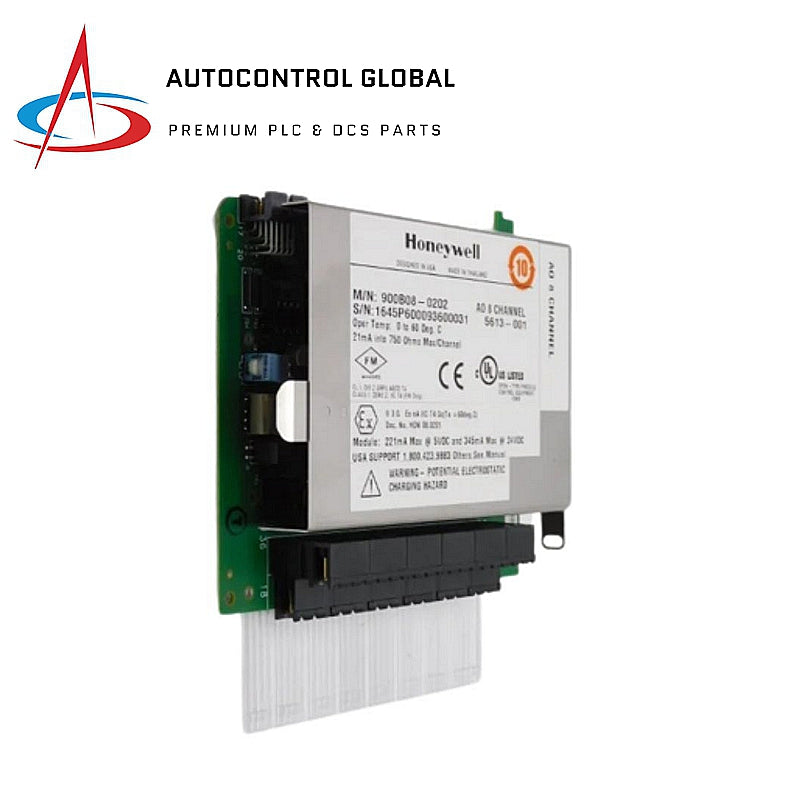

Honeywell | 900B08-0202 | Analog Output

Overview

900B08-0202 is an 8-channel Analog Output module from Honeywell, designed for 0 to 20 mA output with isolation between groups.

Specifications

• Product Number: 900B08-0202
• Product Type: 8-Channel Analog Output
• Current Range: 0 to 21.0 mA, selectable
• Load Resistance: 750 ohms max
• Galvanic Isolation: 500 VDC (group-to-group, logic-to-group)
• Accuracy: 0.1% full scale
• Modules per Rack: 4 max (when powered by internal 24V backplane)
• D/A Resolution: 13+ bits (1 part in 13,332)
• Power Supply Loading: 5V (225 mA max), 24V (350 mA max)
• Terminal Block: 36 Position, Euro style (Model 900TCK0001)
• Dimensions: 137 mm H x 35.6 mm W (5.4" H x 1.4" W)
• Weight: 0.4 kg

Output Configuration

• Outputs per Module: 8, isolated in 2 groups (1-4, 5-8)
• Minimum Current Sensing: >0.5 mA per output
