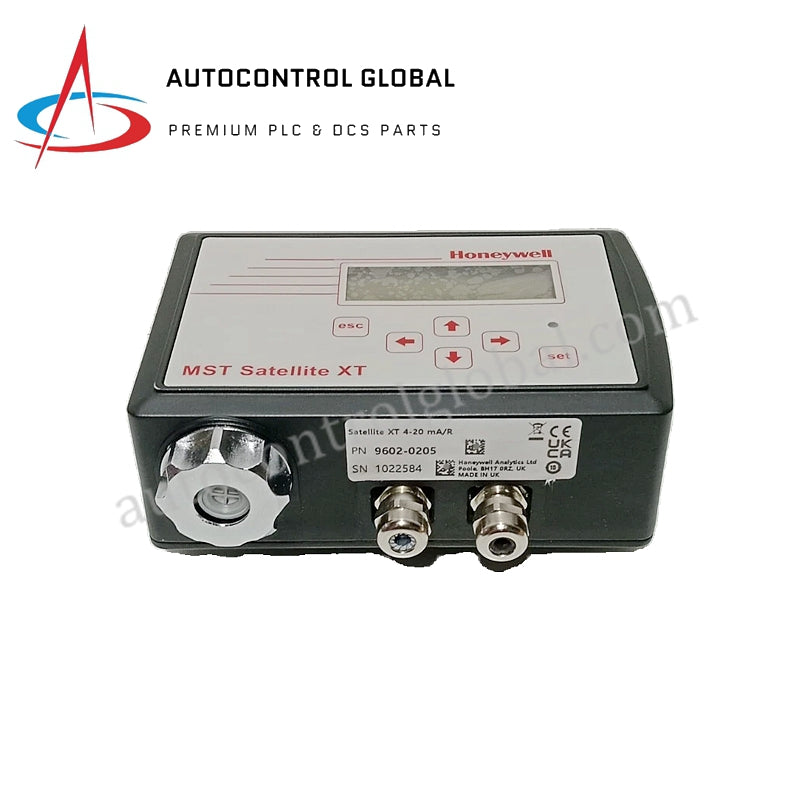

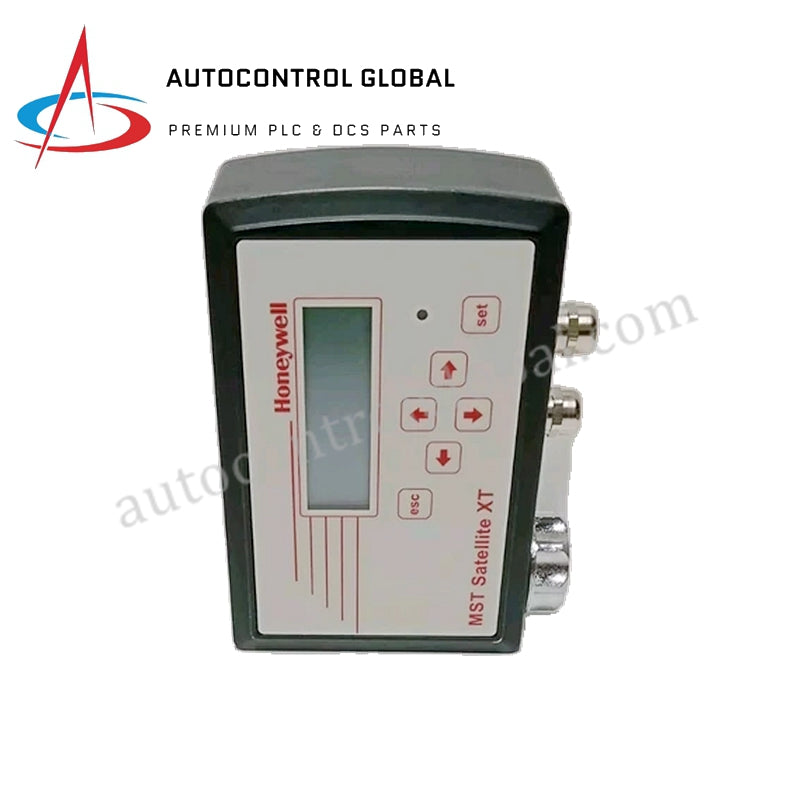

Honeywell 9602-0205 Analytics Satellite XT Gas Detector Transmitter
Manufacturer: Honeywell
-
Part Number: 9602-0205
Condition：New with Original Package
Product Type: Gas Detector Transmitter
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
9602-0205 is a Honeywell gas detector transmitter for Analytics Satellite XT systems.
Power Requirements
-
Voltage: 12–24 VDC
-
Power Consumption: Max. 1.8 W
Analog Signal Output
-
Monitoring Mode: 4–20 mA
-
Warning Condition: 2.8–4 mA @ 0.1 Hz
-
Maintenance Mode: 2.4–4 mA @ 1 Hz
-
Fault Range: 0–2 mA
Wiring
-
Analogue Interface: 3-wire shielded cable, 3 × 1.0 mm² (approx. 2 m)
-
Relay Contacts: 6-wire shielded cable, 6 × 0.25 mm² (approx. 3 m)
Relay Outputs
-
Contacts: 3 × SPST
-
Max Ratings: 250 VAC / 30 VDC, 2 A
Display & Interface
-
Graphic Display: 122 × 32 dots, backlit
-
Status LED: Green
-
Keypad: 6 touch-sensitive membrane keys
Physical & Mounting
-
Dimensions (L×W×D): 145 × 95 × 50 mm
-
Weight: 650 g
-
Mounting: Special mounting plate included
-
Housing Protection: IP52 (option: IP65)
Compliance & Environment
-
RFI / EMC: EN 55022, EN 50082-2
-
Operating Temperature: -20°C to +40°C
-
Operating Pressure: 700–1300 hPa
