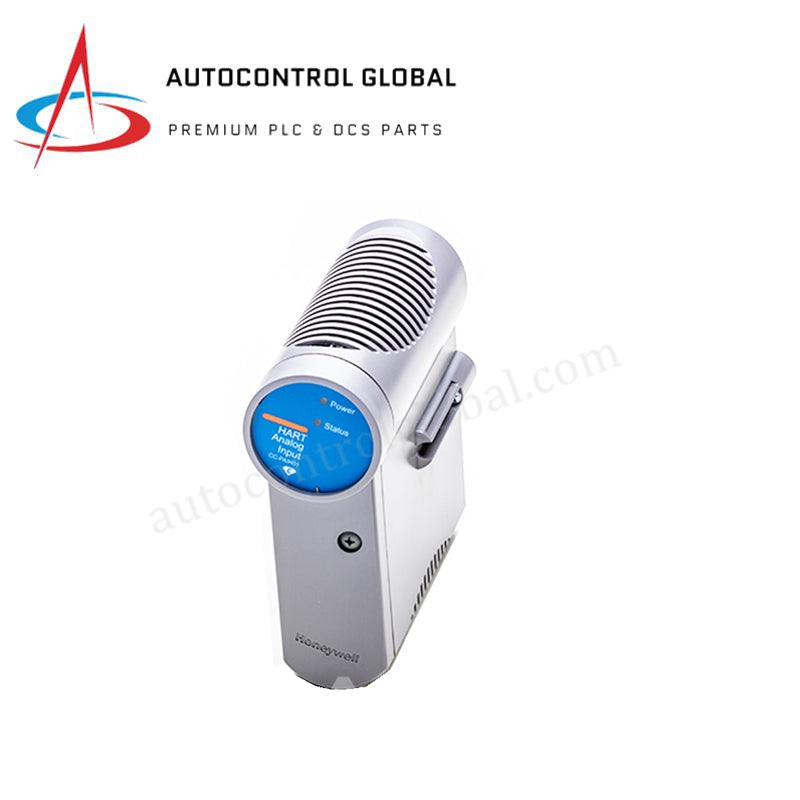

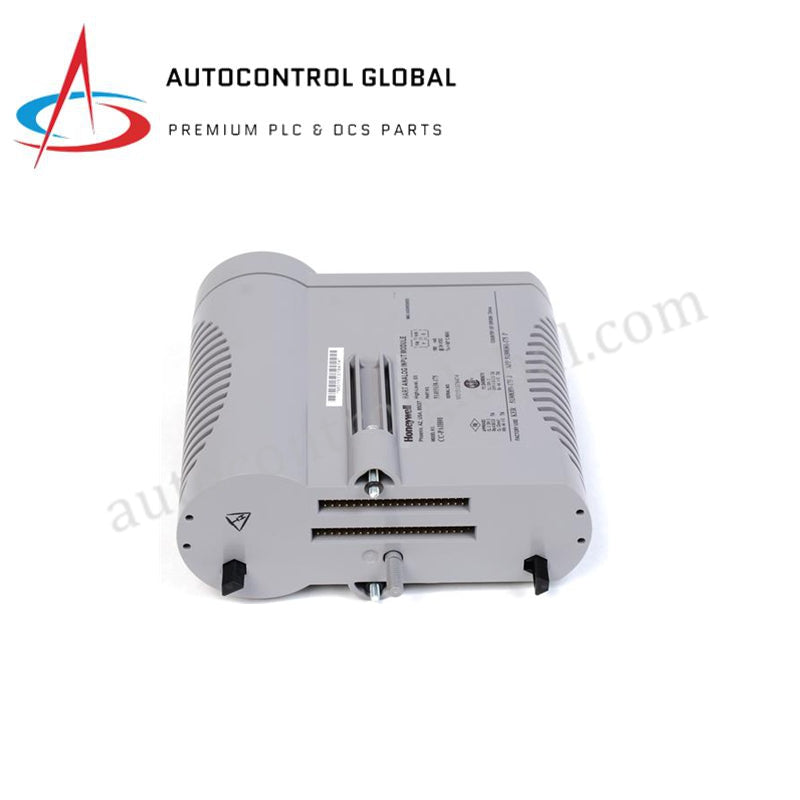

Honeywell CC-PAIHO1 High-Density 16-Port AI Module C300

Product Description

The CC-PAIHO1 is a high-performance analog input module engineered for the Honeywell Experion PKS C300 controller environment. This module provides 16 isolated channels designed to interface with process transmitters, sensors, and field instrumentation. By converting critical analog field data into precise 16-bit digital signals, the CC-PAIHO1 enables the C300 controller to execute complex control loops with high accuracy and deterministic response times.

Designed for the technical rigors of industrial processing, the CC-PAIHO1 supports both current (4–20 mA) and voltage (0–10 VDC) signal types. It features robust galvanic isolation across all channels to prevent ground loops and electromagnetic interference (EMI) from degrading signal integrity. We provide this module as 100% brand new and factory-original, ensuring maximum reliability for your plant’s control architecture.

Technical Specifications

• Manufacturer: Honeywell (USA)

• Model Number: CC-PAIHO1

• Product Type: Analog Input Module (AI)

• Controller Platform: Experion PKS C300

• Number of Channels: 16 Isolated Inputs

• Signal Range (Current): 4–20 mA, 0–20 mA

• Signal Range (Voltage): 0–10 VDC, 1–5 VDC

• A/D Conversion: 16-bit Resolution

• Accuracy: ±0.1% of Full Scale

• Input Impedance: 250 Ω (current mode)

• Isolation: Channel-to-channel and channel-to-system isolation

• Diagnostics: Open-circuit detection, over/under-range monitoring, and board-level health checks

• Operating Temperature: -20 °C to +70 °C

• Humidity Range: 5% to 95% RH (non-condensing)

• Dimensions: 6.8 cm x 10.7 cm x 7.8 cm

• Weight: 0.59 kg

• Certifications: CE, UL, CSA, Conformal Coating (G3 compatible)

Engineering Advantages

• High Channel Density: The 16-channel architecture allows for significant cabinet space savings, reducing the footprint of the I/O rack while maintaining individual channel isolation.

• Robust Diagnostic Feedback: The CC-PAIHO1 provides real-time status reporting to the Experion PKS software, allowing maintenance teams to identify failing transmitters or wiring faults before they impact process safety.

• Deterministic Processing: Optimized for the C300 Series, the module ensures that analog data is updated in the controller database within millisecond timeframes, supporting high-speed control requirements in sectors like power and petrochemicals.

FAQ

• Can the CC-PAIHO1 support HART protocol pass-through?Standard CC-PAIHO1 modules are optimized for high-speed analog sensing. For applications requiring HART digital asset management, verify if the specific PWA revision or a HART-enabled variant is required for your IOTA baseplate.

• Is the module hot-swappable in a C300 rack?Yes, when utilized within a redundant C300 I/O configuration, the CC-PAIHO1 can be replaced while the system is powered and the process is running, provided the secondary module is active.

• Does this module require a specific I/O Termination Assembly (IOTA)?Yes, the CC-PAIHO1 must be seated on a compatible C300 IOTA baseplate to facilitate field wiring connections and system power distribution.
