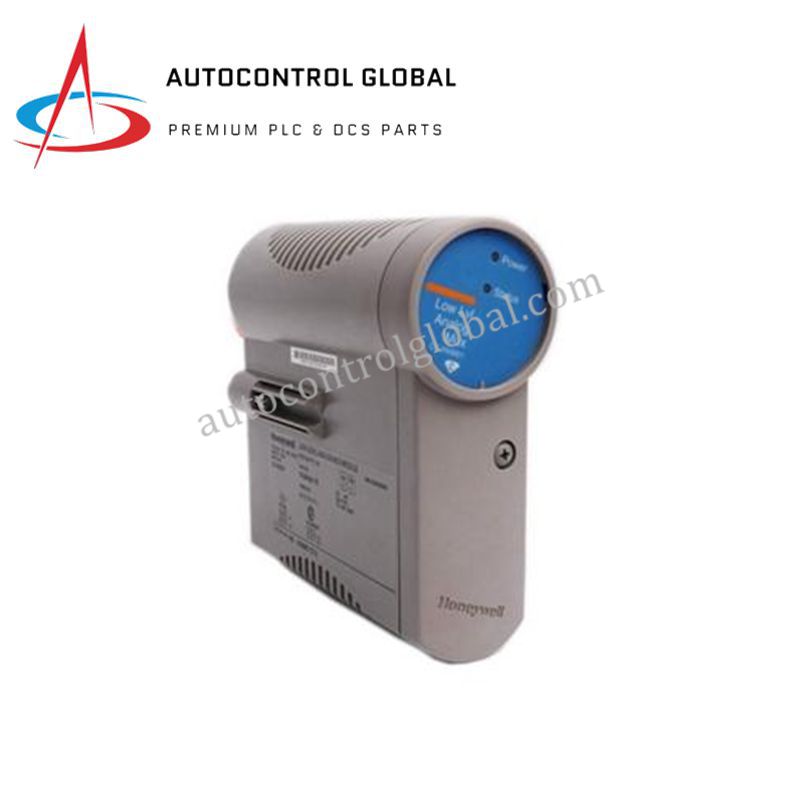

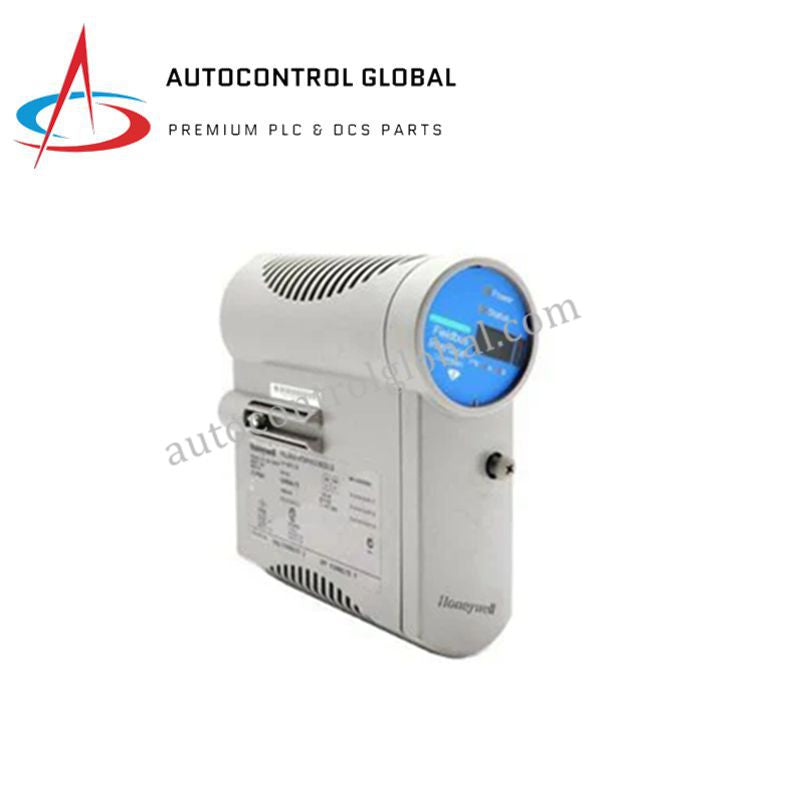

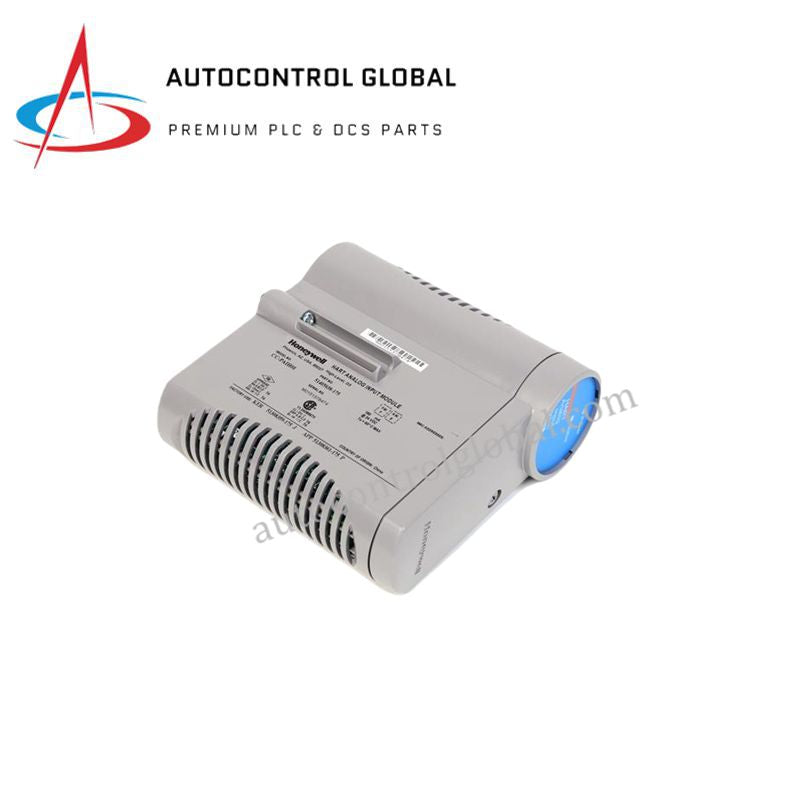

Honeywell CC-PUIO31 | Configurable I/O Module for C300 Controller
Manufacturer: Honeywell
-
Part Number: CC-TUIO31
Condition：New with Original Package
Product Type: Configurable I/O Module for C300 Controller
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Overview
The Honeywell CC-PUIO31 Universal Input/Output (UIO) Module belongs to the Experion® Series C I/O family, designed to streamline industrial automation systems. It provides 32 fully configurable channels, supporting both analog and digital signals within a single module. Unlike conventional DCS modules, the CC-PUIO31 reduces the need for multiple spares and simplifies system architecture. This module communicates seamlessly with the C300 Controller through Fault-Tolerant Ethernet (FTE), ensuring high reliability in continuous process environments. Moreover, it supports hot-swapping, allowing maintenance without disrupting operations.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model Number | CC-PUIO31 |
| Module Type | Process Universal I/O Module |
| System Compatibility | Honeywell Experion PKS C300 Controller, Series C I/O |
| Number of Channels | 32 configurable channels |
| Supported Signal Types | AI: TC, RTD, Voltage (mV/V), Current (0–20 mA, 4–20 mA), Resistance |
| Accuracy | ±0.05% of span (typical for analog inputs) |
| Isolation | Channel-to-channel and channel-to-bus galvanic isolation |
| Hot-Swap Capability | Supported |
| LED Indicators | Module status, network status, per-channel activity |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Power Consumption | 80 mA @ 24 VDC (typical) |
| Mounting | Installed on Series C IOTA assembly |
| Dimensions (H×W×D) | 50.8 × 177.8 × 127 mm |
| Weight | 0.45 kg |
| Certifications | CE, UL, CSA, TUV |
FAQ
Q1: Can each channel of the CC-PUIO31 be configured independently?
Yes, each of the 32 channels can be configured as AI, AO, DI, or DO depending on process requirements.
Q2: Does the module support hot-swapping?
Absolutely. Hot-swap capability allows replacement or upgrades without shutting down the system.
Q3: What signal types are supported?
The module supports thermocouple, RTD, voltage, current, dry/wet contact, and 24 VDC transistor output signals.
Q4: What is the operating temperature range?
It operates reliably between –40 °C and +70 °C, suitable for most industrial environments.
Q5: Which controllers are compatible with CC-PUIO31?
It is fully compatible with Honeywell Experion PKS C300 Controllers and Series C I/O systems
