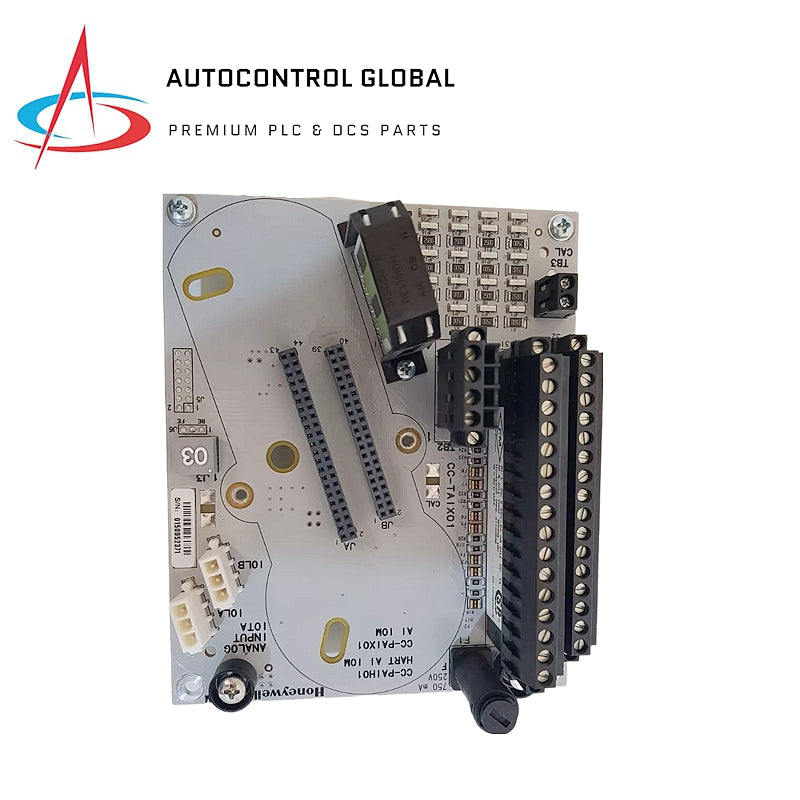

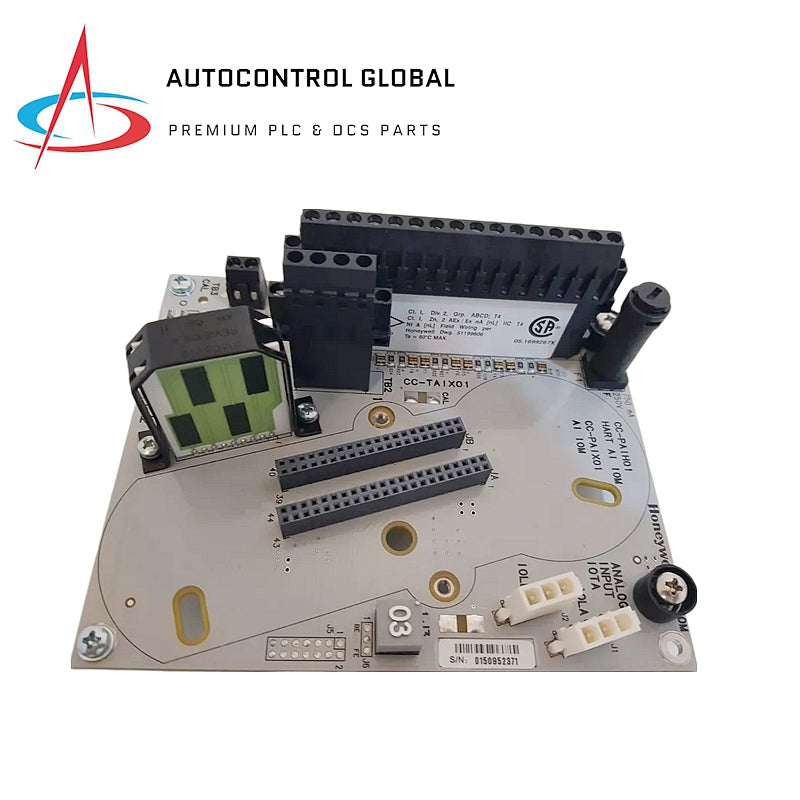

Honeywell CC-TAIX01 Analog Input Module
Manufacturer: Honeywell
-
Part Number: CC-TAIX01
Condition：New with Original Package
Product Type: Analog Input Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell CC-TAIX01 Analog Input Module
The Honeywell CC-TAIX01, also cataloged as the CC-TAIX01 Analog Input Module, operates as a dedicated hardware component for acquiring 24 VDC analog current signals within distributed control system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-TAIX01 |
| Brand | Honeywell |
| Origin | Standard Industrial Manufacturing |
| Weight | 0.24 kg |
| Dimensions | Standard Experion PKS Form Factor |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | 2.464 W (Module), 0.195 A @ 24 VDC (IOTA) |
| Input Current | 0.320 A @ 24 VDC |
| Signal Range | 24 VDC Input |
Channel Isolation and 4-20 mA HART Loop Integration
The hardware interfaces directly with field transmitters utilizing standard current loops with superimposed HART digital communication protocols. Channel-to-channel galvanic isolation prevents ground loops and mitigates common-mode voltage interference across harsh industrial environments. Furthermore, internal monitoring circuits track loop continuity and power distribution integrity continuously without interrupting the primary measurement stream.
Frequently Asked Questions
Q: What are the power supply requirements and thermal dissipation metrics for the CC-TAIX01 module?
A: The module operates at 24 VDC drawing 0.320 A, generating a thermal dissipation of 2.464 W. The associated IOTA draws an additional 0.195 A at 24 VDC.
Q: Does the module support hot-swapping during active system operation?
A: Yes, system architecture permits hot-swapping of the electronic module while maintaining field wiring connections on the underlying termination assembly, provided proper power and grounding protocols are observed.
Q: How is signal integrity protected against high-frequency electromagnetic interference?
A: The module incorporates internal input filtering circuits and supports grounded shielded twisted-pair cabling terminating directly at the cabinet shield bars.
Field Installation Guidelines
Mount the input termination assembly securely onto standard structural mounting panels within the control system cabinet. Ensure proper grounding of shielded signal cables using low-impedance grounding clips connected directly to the cabinet ground bar. Verify that all 24 VDC power feeds and field wiring terminals are tightened to manufacturer torque specifications prior to energizing the system. Maintain adequate physical spacing from high-voltage power cabling to prevent induced electrical noise.
