Honeywell FC-SAO-0220M | Fail-Safe Analog Output Module
Manufacturer: HONEYWELL
-
Part Number: FC-SAO-0220m
Condition：New with Original Package
Product Type: Fail-Safe Analog Output Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

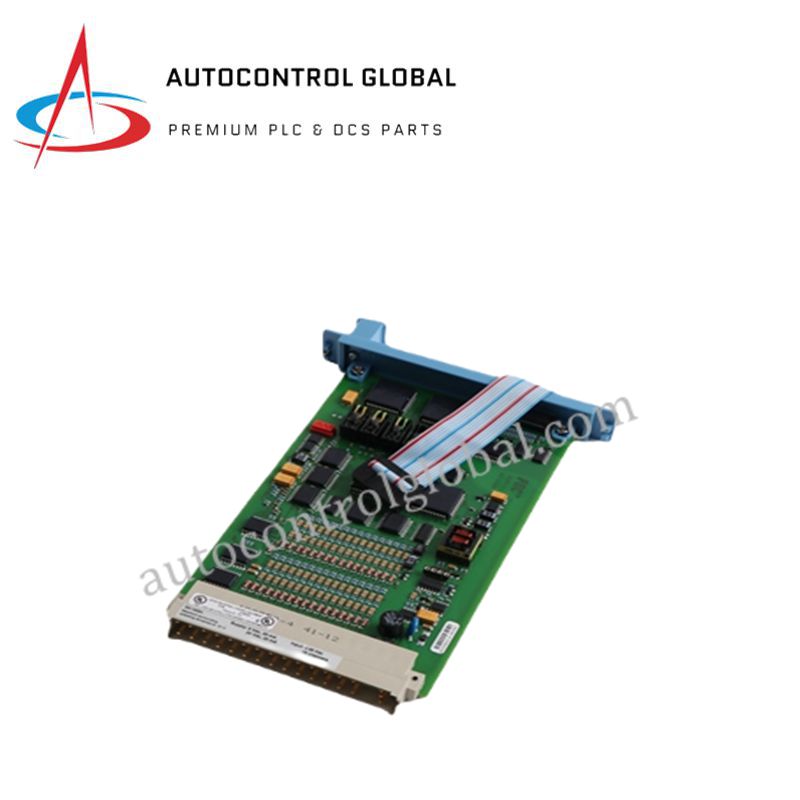

Honeywell FC-SAO-0220M – Fail-Safe Analog Output Module
Product Overview
The Honeywell FC-SAO-0220M is a fail-safe analog output module designed for Honeywell’s FSC (Fail-Safe Controller) system. It provides two galvanically isolated current output channels capable of 0–20 mA or 4–20 mA operation, making it ideal for controlling actuators, valves, and other analog field devices.
This module is engineered for SIL 2 safety-critical applications under IEC 61508, ensuring dependable analog control in emergency shutdown systems (ESD), burner management systems (BMS), and demanding industrial environments. With fast response times, built-in diagnostics, and watchdog functionality, it guarantees precise and safe output delivery.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FC-SAO-0220M |
| System Compatibility | FSC (Fail-Safe Controller) |
| Channels | 2 independent analog outputs |
| Signal Type | 0–20 mA or 4–20 mA |
| D/A Converter | 12-bit |
| Off Current | < 0.05 mA |
| Loop Resistance | Max 600 Ω |
| Max Output Voltage | 30 VDC (loop powered) |
| External Powering | Up to 40 VDC, min. voltage drop < 7.5 V |
| Watchdog Input Current | 0.5 mA |
| Power Requirements | 5 VDC at 30 mA, 24 VDC at 65 mA + 30 mA per output |
| Approvals | CE, TÜV, UL, CSA, FM |
| Safety Compliance | SIL 2 (IEC 61508) |
| Space Requirements | 4 TE, 3 HE |
| Operating Temperature | –20°C to +85°C |
| Protection Rating | IP20 |
| Weight | 2 kg |
