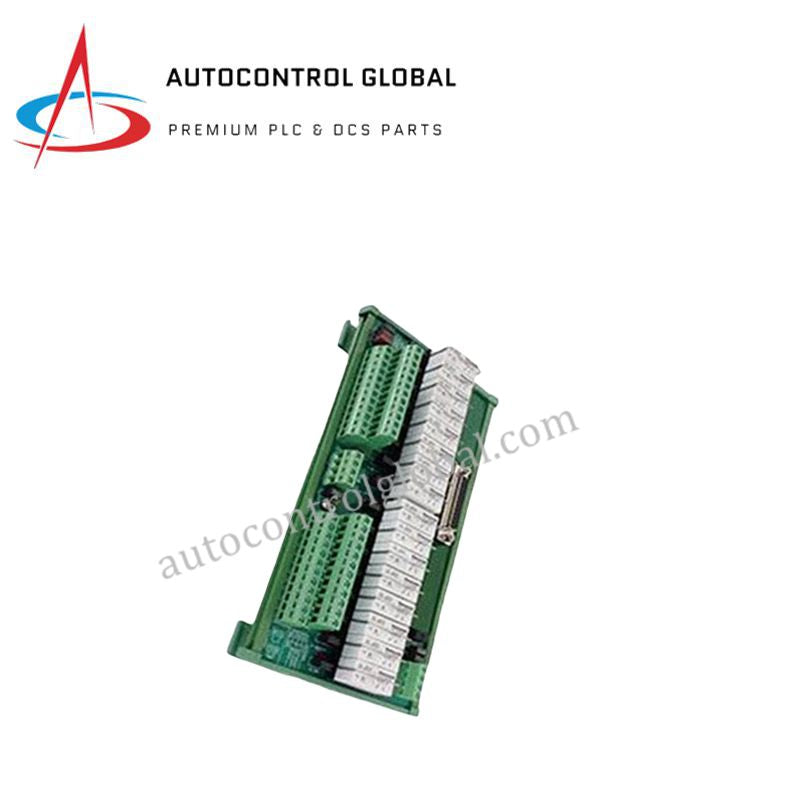

Honeywell FS-16DI-RL | 16-Channel Relay Input Terminal Board
Manufacturer: HONEYWELL
-
Part Number: FS-16DI-RL
Condition：New with Original Package
Product Type: 16-Channel Relay Input Terminal Board
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell FS-16DI-RL Relay Input Terminal Board Overview
The Honeywell FS-16DI-RL is a high-performance relay input terminal board designed for Honeywell industrial control platforms. It provides 16 isolated input channels that capture digital signals from switches, contact closures, and field sensors. With robust isolation and reliable performance, this module is well suited for demanding automation applications.
Each channel of the FS-16DI-RL offers LED status indication, which simplifies troubleshooting and system monitoring. The module supports both DIN rail and panel mounting, giving engineers flexibility during installation and system upgrades.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | FS-16DI-RL |
| Type | Relay Input Terminal Board |
| Input Channels | 16 isolated relay input channels |
| Input Voltage | 24V DC nominal (10–30V DC range) |
| Input Current | 0.5A continuous, 1A inrush (10 ms) |
| Contact Rating | 250V AC, 2A resistive load |
| Isolation Rating | 1500V AC (channel-to-channel and to ground) |
| Response Time | 5 ms ON, 5 ms OFF |
| Power Supply | 24V DC ±20% |
| Current Draw | 200 mA typical |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Dimensions | 200 × 120 × 40 mm |
| Weight | 0.6 kg |
| Wire Gauge | 12–24 AWG |
| Connection Type | Screw terminal blocks |
| Mounting Options | DIN rail or panel mount |
| Indicators | LED per channel |
| Certifications | CE compliant, industrial standards |
