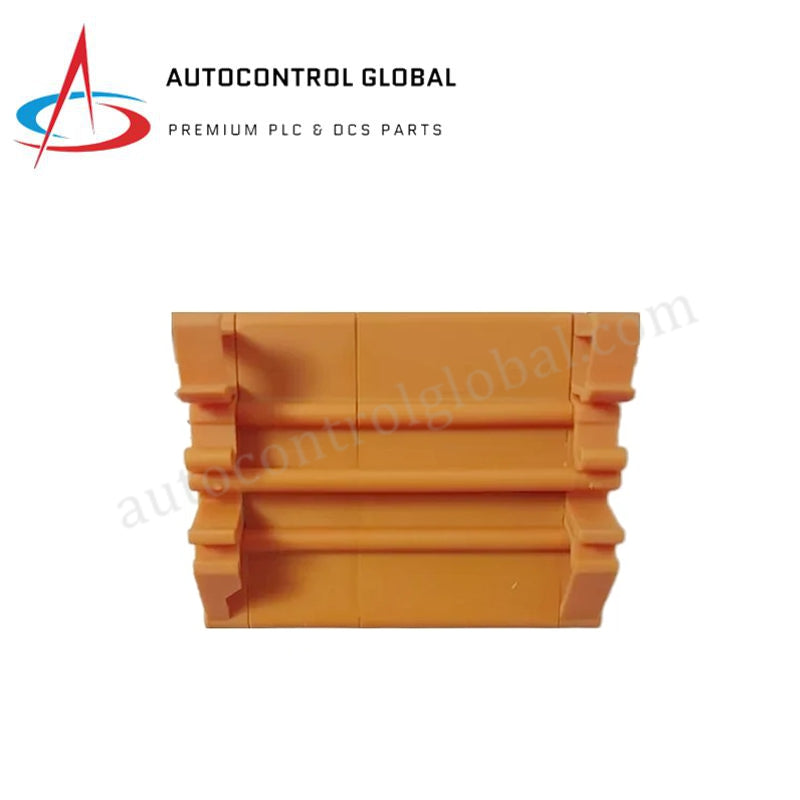

Honeywell FS-GIMTLDI-1624 Safety Manager DI Module

Honeywell FS-GIMTLDI-1624 Digital Input Interface Module

The Honeywell FS-GIMTLDI-1624, also cataloged as the FS-GIMTLDI-1624 Digital Input Interface Module, operates as a dedicated hardware component for digital input signal conditioning within Honeywell Safety Manager platforms. Engineered as an MTL-based backplane termination card, this module routes discrete field contact signals into central safety processing units. The dual-channel architecture processes digital state logic while isolating field loops from sensitive controller electronics. Designed for mounting directly onto designated safety system I/O chassis assemblies, the module maintains secure electrical continuity between field instrumentation and backplane buses. Standard field termination hardware ensures consistent cable landing and grounding across process control panels.

Hardware Specifications

Galvanic Isolation & Signal Integrity Conditioning

Safety Manager applications rely on deterministic field signal acquisition free from ground loops and external voltage surges. The FS-GIMTLDI-1624 incorporates channel-to-channel isolation and input signal conditioning circuits to prevent transient voltage spikes from damaging central processor logic. By decoupling field wiring from internal controller buses, the interface maintains signal fidelity across harsh electromagnetic environments. The MTL isolation architecture restricts fault energy propagation, ensuring that field short circuits or wiring faults do not destabilize adjacent monitoring channels or cause unpredicted system shutdowns.

Frequently Asked Questions

Q: What mounting configuration does the assembly require inside control cabinets?

A: The module mounts directly into dedicated Honeywell Safety Manager backplane motherboard slots or designated I/O chassis racks, securing electrical connection via backplane bus connectors.

Q: How does channel-to-channel isolation benefit digital input monitoring?

A: Channel-to-channel isolation blocks transient noise, ground potential differences, and fault voltages on individual field loops, preventing electrical disturbances from propagating to other input channels or backplane electronics.

Q: What precautions are necessary when connecting field signal cabling?

A: Install field wiring through shielded twisted-pair cables, grounding the shield drain wires at the designated system earthing bar to prevent ground loops from inducing spurious digital state transitions.

Field Installation Guidelines

Mount the motherboard base securely within the main I/O cabinet frame before inserting the interface module into its target backplane slot. Inspect backplane connectors for pin alignment and cleanliness prior to fully seating the card.

Route field input cables through dedicated cable trunking, enforcing physical separation between high-voltage power distribution lines and 24 VDC discrete signal conductors. Strip conductor insulation to the specified stripping length, landing each wire into the screw terminals with a maximum tightening torque of 0.5 Nm.

Connect cable shield drain wires at a single termination point on the main panel ground bus bar to eliminate circulating earth currents. Verify that all field contact circuits fall within 24 VDC operating limits before applying primary backplane power to the safety system chassis.
