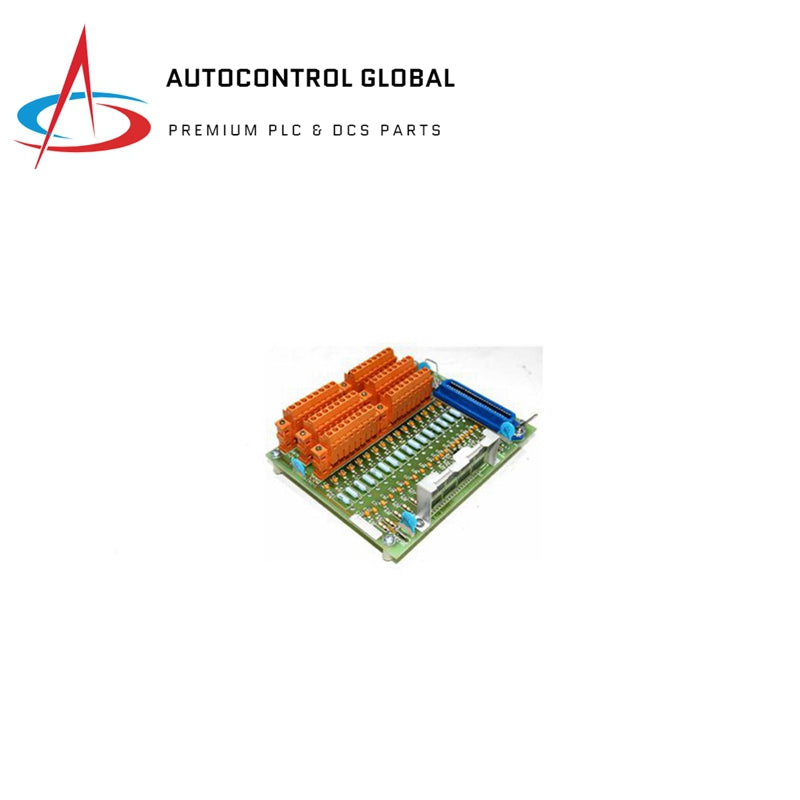

Honeywell MC-PAIH03 51304754-150 Analog Input Module

Description

• Model Number: MC-PAIH03
• Part Number: 51304754-150
• Type: High Level Analog Input Processor
• Brand: Honeywell

Features

• Input Channels: 16 differential analog input channels
• Input Type: Voltage or current input, compatible with 2-wire or self-powered transmitters
• Isolation: Isolated inputs for increased noise immunity
• Communication: Modbus RTU communication
• Mounting: DIN rail mounting

Specifications

• Input Range: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
• Common Mode Rejection Ratio: 70 dB, dc to 60 Hz (500 Ω source imbalance)
• A/D Converter Resolution: 16 bits (14 bits used)
• Input Scan Rate: 4 samples per second per channel
• Hardware Accuracy: ± 0.075% full-scale (23.5°± 2°C), ± 0.15% full-scale (0 to 50°C)
• Surge Withstand Capability: ANSI/IEEE C37.90.1-1978
• Weight: 0.60 Kg
• Dimensions: 10.2 x 7.5 x 2.5 inches
• Warranty: 1 year
