Honeywell MC-PDIX02 Digital Input Card Experion PKS

Product Overview

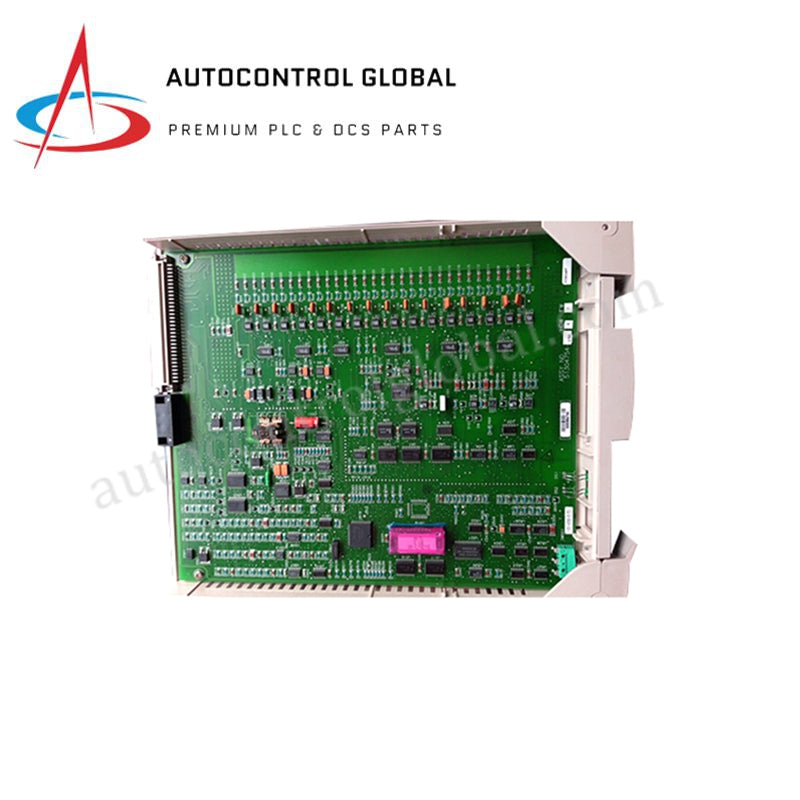

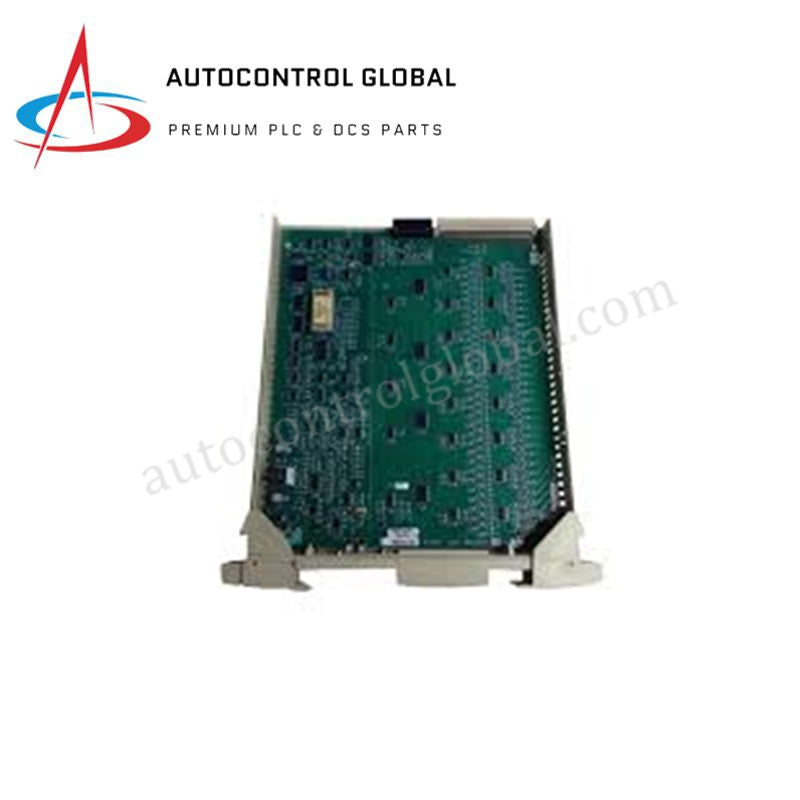

The Honeywell MC-PDIX02 (Part Number 51304485-150) functions as a high-density, 32-channel Digital Input Processor (IOP) for Honeywell Experion PKS and TDC 3000 systems. This module captures discrete signals from field-side switches, sensors, and interlock contacts, translating them into real-time data for the central controller. We supply this unit as 100% brand new and original, featuring a specialized conformal coating. This protective layer shields the internal circuitry from humidity and chemical gases, making the MC-PDIX02 the industry standard for reliable monitoring in corrosive atmospheres like offshore platforms and chemical refineries.

Technical Specifications

The MC-PDIX02 delivers precision discrete sensing through the following technical parameters:

Engineering Advantages

• G3-Rated Environmental Resilience: The conformal coating provides a durable barrier against the corrosive effects of $H_{2}S$, $SO_{2}$, and high humidity. This ensures long-term hardware survival in "Class G3" harsh environments where uncoated PCBs typically suffer from trace corrosion and premature failure.

• Massive Input Density: A single MC-PDIX02 card manages 32 separate digital inputs. This high density optimizes rack space within the I/O cabinet, allowing engineers to consolidate monitoring for entire pump skids or turbine auxiliary systems into a single, efficient hardware footprint.

• Deterministic Signal Debouncing: The onboard digital input processor utilizes advanced hardware-level filtering. This prevents "contact bounce" from mechanical switches—a common cause of false alarms—ensuring that the control system only registers valid state changes for process interlocks and sequencing.

• Galvanic Protection Architecture: Integrated isolation prevents field-side electrical surges from propagating into the system backplane. This architecture safeguards the primary process manager and adjacent I/O cards, localizing potential faults to the specific field wiring path.

FAQs

• What does the "Conformally Coated" specification provide?

  It means the assembly is completely covered with a thin layer of specialized plastic. This material resists the corrosive effects of industrial gases and moisture, which is vital for preventing short circuits in unconditioned or coastal environments.

• Is the 51304485-150 compatible with both Experion PKS and legacy TDC systems?

  Yes. The MC-PDIX02 is a versatile IOP designed to fit standard Honeywell High-Performance Process Manager (HPM) chassis, allowing it to work seamlessly in both modern Experion PKS and legacy TDC 3000/TPS architectures.

• Does this module support both voltage-free (dry) and powered contacts?

  The MC-PDIX02 handles standard discrete signals. Depending on your Field Termination Assembly (FTA) configuration, it accommodates both dry contacts and powered 24VDC signals, making it highly adaptable to various field device types.
