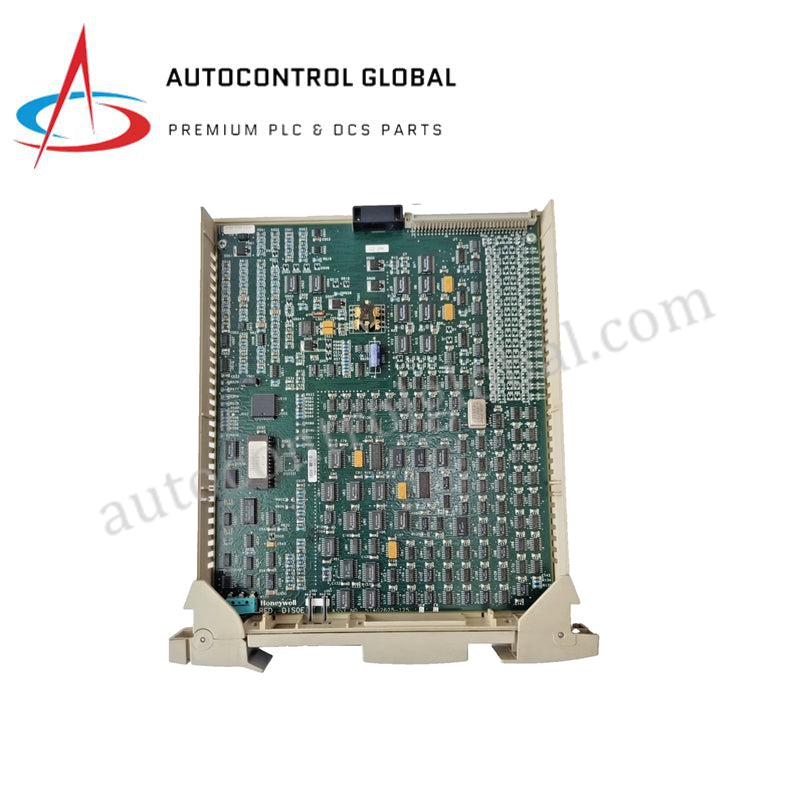

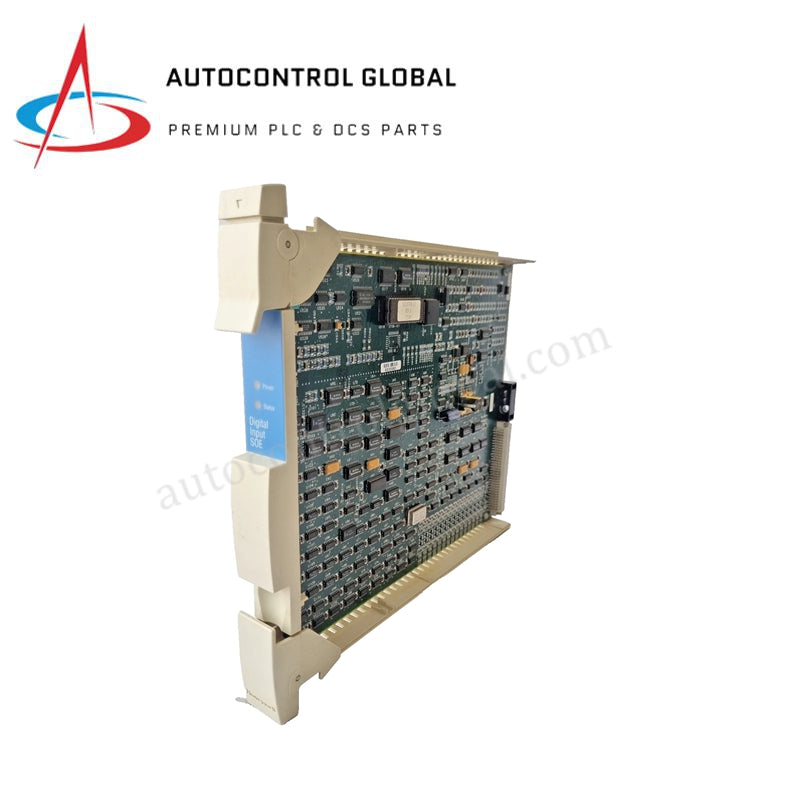

Honeywell MC-PDOY22 Experion PKS Series C Digital Output Module
Manufacturer: ABB
-
Part Number: MC-DDOY22
Condition：New with Original Package
Product Type: Digital Output Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell MC-PDOY22 Experion PKS Digital Output Module
The Honeywell MC-PDOY22, also cataloged as the MC-PDOY22 Digital Output Control Module, operates as a dedicated hardware component for discrete signal switching within Honeywell Experion PKS Series C I/O, TPS, and TDC 3000 systems platforms. Configured for converting controller logic into precise ON/OFF signals, the Honeywell MC-PDOY22 (MC-PDOY22 Digital Output Control Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PDOY22 (Part Number: 80363975-150) |
| Brand | Honeywell |
| Origin | Factory standard |
| Weight | 0.6 kg |
| Dimensions | 267 x 178 x 51 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Derived from backplane bus |
| Output Channels | 16 - 32 digital output channels (configuration dependent) |
| Signal Voltage | 24 VDC |
| Maximum Output Current | Up to 1 A per channel |
| Output Type | Solid-state transistor outputs |
| Isolation Strength | Channel-to-channel and channel-to-system galvanic isolation |
| Protection Features | Over-current protection, surge suppression, short-circuit protection |
| Storage Temperature | -40 to +85 deg C |
| Humidity | 5% - 95% non-condensing |
| Certifications | CE, UL508, CSA, TUV |
Process Control & Channel Isolation
The hardware architecture incorporates solid-state transistor outputs utilizing channel-to-channel isolation to decouple each electrical field loop from parallel processing nodes. This galvanic isolation prevents transient surge migration and maintains structural integrity during high-frequency inductive switching events. Field loop telemetry works independently of the 4-20 mA HART loop protocol baselines established within adjacent analog control slots, isolating digital switching noise from low-level measuring elements.
Frequently Asked Questions
Q: How does the channel-to-channel isolation architecture protect the host controller backplane?
A: The galvanic isolation barrier electrically separates individual output loops, ensuring that a field-side short circuit or over-voltage fault on one channel cannot propagate to adjacent channels or corrupt the system logic rails.
Q: What happens if a field device exceeds the 1 A current limit on a specific output channel?
A: Internal over-current and short-circuit protection components immediately trip the faulted channel to prevent thermal degradation, while onboard diagnostic registers flag the event to the central processor.
Q: Is this module hot-swappable during active control execution?
A: Online replacement must comply strictly with Honeywell rack safety instructions, requiring localized loop bypass configuration within the engineering workstation before pulling the module to prevent unintended process trips.
Field Installation Guidelines
- Verify that all external 24 VDC field power sources are isolated before terminating field wiring plugs to the card interfaces.
- Use dedicated static-shielding equipment and a verified grounding wrist strap when mounting or configuring the module chassis.
- Route discrete output conductors away from high-voltage AC motor lines to eliminate inductive cross-talk within the control cabinet routing trays.
- Ensure all terminal blocks are seated squarely and the mounting screws are torqued down to maintain proper connection pressure.
