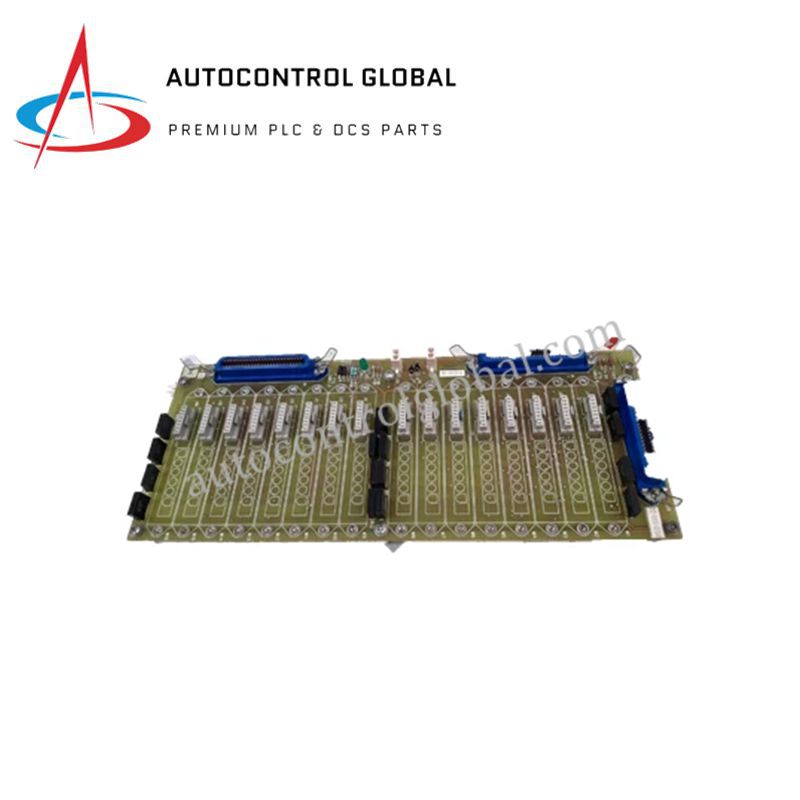

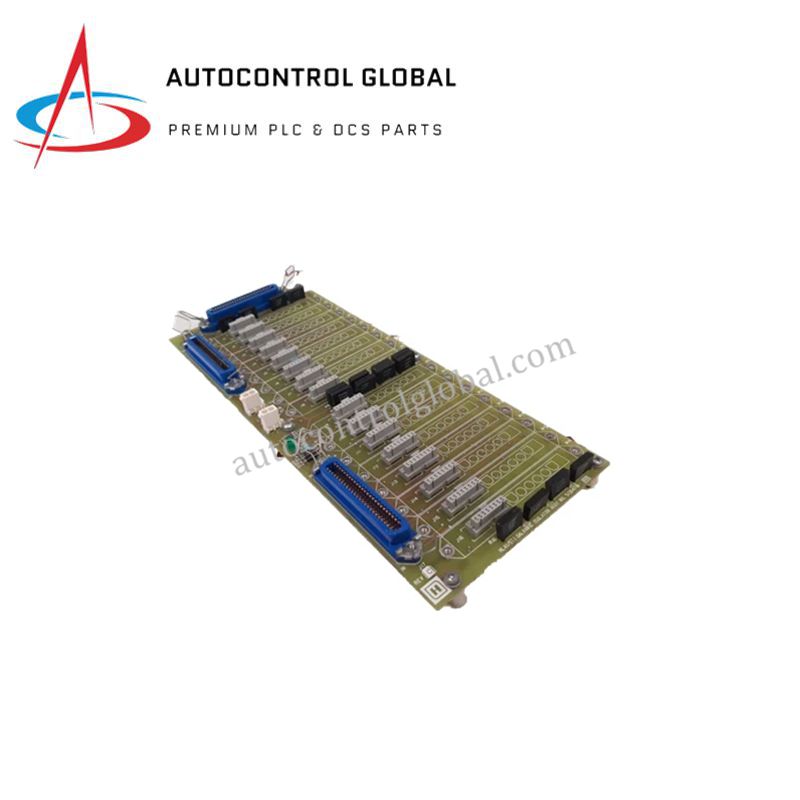

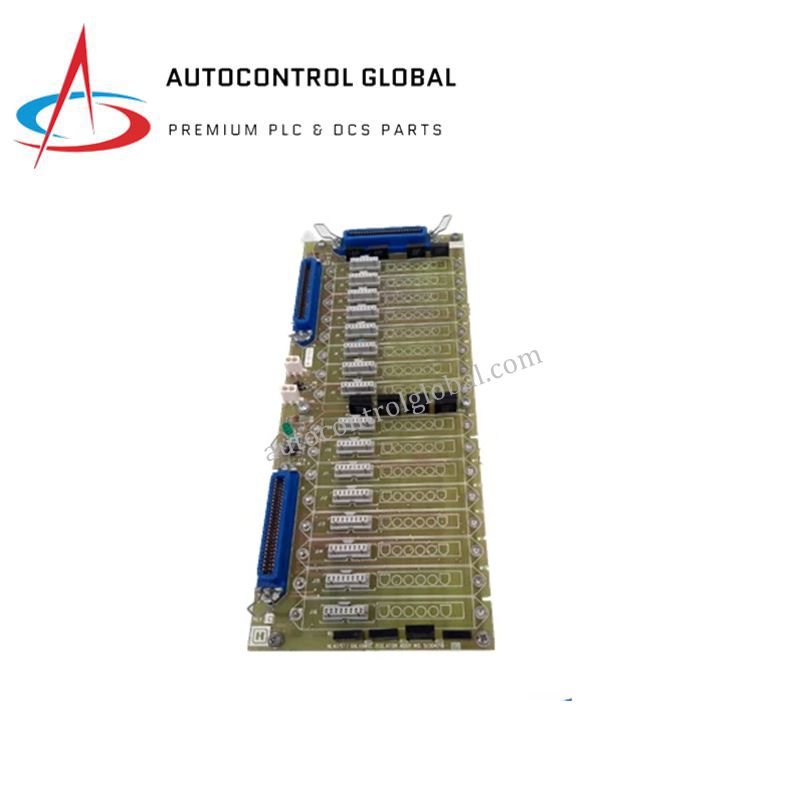

Honeywell MU-GAIH13 | 16-Channel Analog Input Module
Manufacturer: Honeywell
-
Part Number: MU-GAIH13 51304718-100
Condition：New with Original Package
Product Type: 16-Channel Analog Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell MU-GAIH13 is a high-level General Analog Input Module engineered for precise data acquisition in industrial environments. It connects seamlessly to Honeywell’s Universal Control Network (UCN) within the TDC 3000 DCS. The module accurately captures signals from transmitters and sensors across 16 channels. Its 12-bit A/D conversion ensures high-resolution measurements, while channel-to-channel and channel-to-system isolation minimizes noise interference. Built-in diagnostics enable real-time signal verification and fault detection, ensuring reliability in critical process automation.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | MU-GAIH13 |
| Part Number | 51304718-100 |
| Type | General Analog Input Module |
| Channels | 16 analog inputs |
| Input Signal Range | 4–20 mA or 1–5 V (depending on configuration) |
| Resolution | 12-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-system |
| Diagnostics | Built-in diagnostics for signal integrity and fault detection |
| Communication Interface | Honeywell UCN via I/O Link |
| Power Supply | 24 VDC nominal |
| Operating Temperature | −40°C to +70°C |
| Mounting | Rack-mounted within Honeywell I/O chassis |
| Dimensions | 48 × 48 × 9.6 mm |
| Weight | 30 g |
| Compliance | CE marked, RoHS compliant, industrial EMC and safety standards |
FAQ
Q1: How many analog input channels does the MU-GAIH13 support?
A1: The MU-GAIH13 provides 16 high-resolution analog input channels.
Q2: What is the input signal range for the MU-GAIH13?
A2: It supports 4–20 mA or 0–10 V signals, configurable per channel.
Q3: Can the MU-GAIH13 operate in extreme temperatures?
A3: Yes, it operates reliably from −40°C to +70°C.
Q4: How is noise interference minimized in the MU-GAIH13?
A4: It provides both channel-to-channel and channel-to-system isolation.
Q5: What type of diagnostics does the MU-GAIH13 feature?
A5: Built-in diagnostics monitor signal integrity and detect faults in real time.
