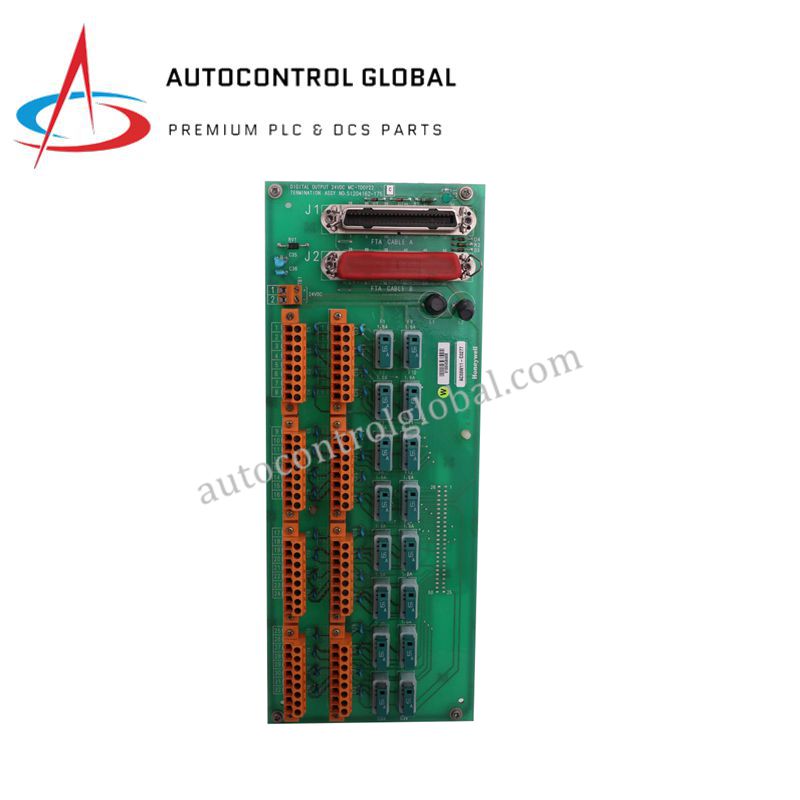

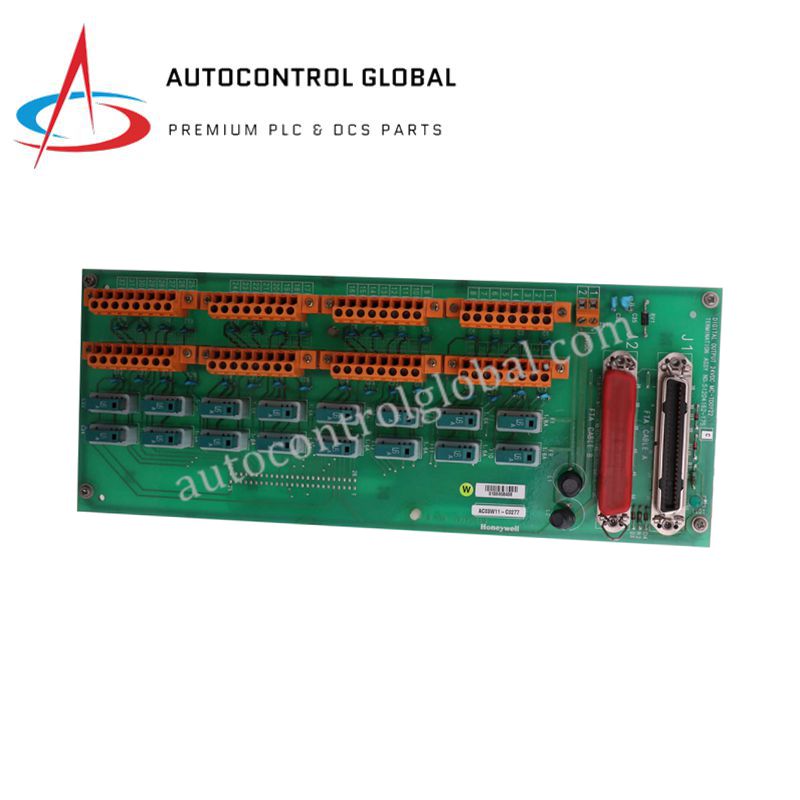

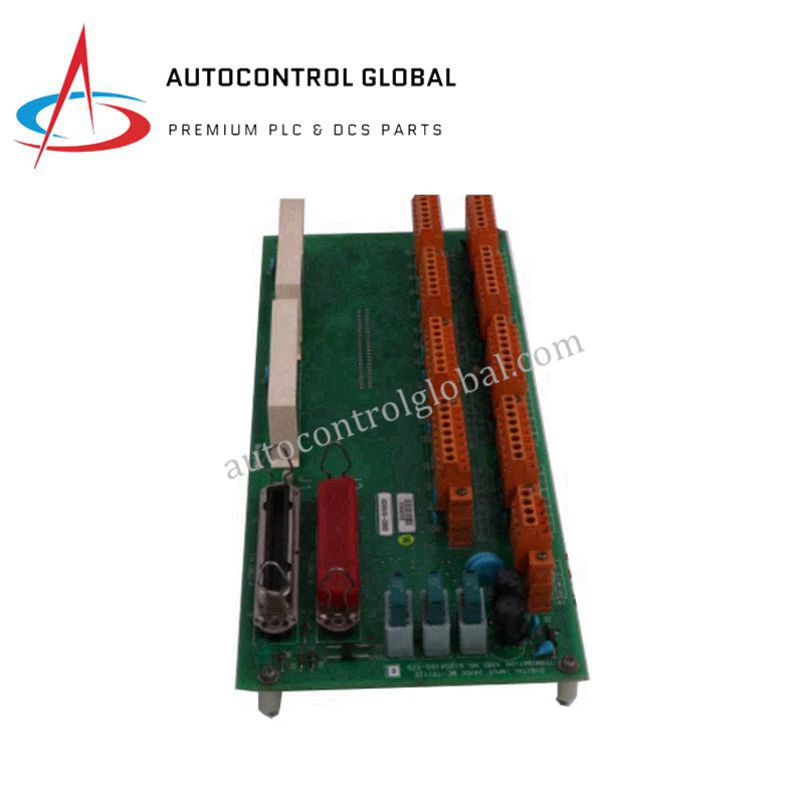

Honeywell MU-TDOY22 24VDC | Output Termination Module for TDC/TPS

Product Description — Honeywell MU-TDOY22 / 51204162-125

Overview

The Honeywell MU-TDOY22 Digital Output Field Termination Assembly provides a stable wiring interface between system controllers and field devices in demanding industrial environments. Each assembly ensures clean and reliable 24 VDC digital output distribution, and its rugged layout supports continuous operation in critical control applications. Moreover, its design aligns seamlessly with Honeywell TDC 3000, TPS, and Experion PKS architectures, allowing engineers to upgrade or expand systems with minimal integration effort.

Technical Specifications

Model: MU-TDOY22
Part Number: 51204162-125 / 51304162-1
Function: Digital output termination and distribution
Signal Voltage: 24 VDC outputs
Channels Supported: Multiple discrete outputs
Terminal Type: Compression-type terminal blocks
Dimensions: 260 × 180 × 65 mm
Weight: 1.0 kg
Operating Temperature: –20 °C to +55 °C
Humidity: 5% – 95% non-condensing
Certifications: CE, TUV, UL508, CSA
Country of Origin: USA
Shipping Weight: 1 kg
Lead Time: In stock
Payment Terms: T/T

FAQ

Q1: Is the MU-TDOY22 compatible with Experion PKS?
Yes, it integrates smoothly with Experion PKS, TDC 3000, and TPS systems.

Q2: What voltage level does this termination assembly support?
It supports standard 24 VDC digital outputs used in industrial automation.

Q3: Does the unit include compression-type terminals?
Yes, compression-type terminals ensure stable and secure field wiring connections.

Q4: Can it handle multiple digital output channels?
Yes, the assembly distributes multiple discrete channels depending on the connected I/O module.

Q5: Is this part UL and CE certified?
Yes, the module carries CE, UL508, CSA, and TUV certifications.
